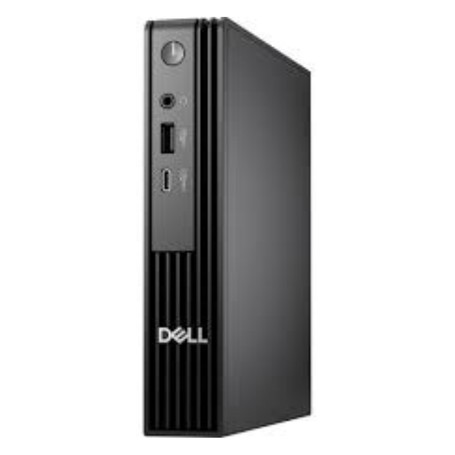

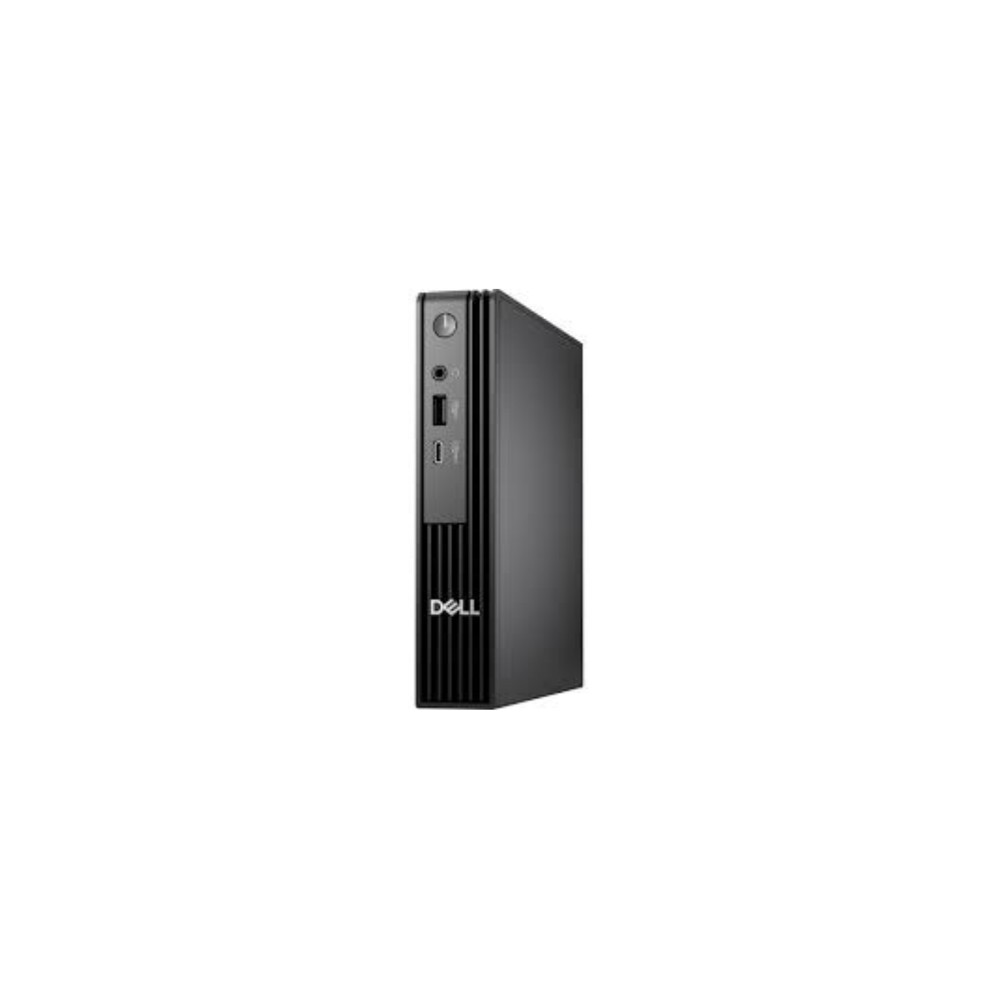

Dell PY4JY-KIT6 Pro Micro Desktop QCM1250 Platform
Overview
The Dell PY4JY-KIT6 is an enterprise micro desktop bundle based on the Dell Pro Micro QCM1250 platform, designed for space-constrained deployments such as kiosks, front desks, branch offices, and high-density corporate environments.
It is powered by an Intel Core Ultra 7 265T processor (20-core hybrid architecture) with integrated Intel AI Boost NPU (~13 TOPS), delivering efficient performance for multitasking, office workloads, and AI-assisted business applications. Verified configurations include 16GB DDR5 memory (5600 MT/s) and a 256GB PCIe NVMe SSD, providing fast application load times and stable enterprise performance.
The system uses a micro form factor chassis (~1.4-inch width class) optimized for desk mounting, VESA attachment, or hidden deployment behind displays. It supports USB-C, multiple USB-A ports, HDMI 2.1, DisplayPort 1.4a, Wi-Fi 6E, and Gigabit Ethernet, enabling flexible connectivity in modern office environments.
Deployment is suited for enterprise IT fleets, retail systems, call centers, and embedded office setups where space efficiency, low power consumption (~90W PSU), and centralized management are critical. It is not intended for GPU-intensive workloads such as CAD, 3D rendering, or AI training due to integrated graphics limitations.
Key Features
- Intel Core Ultra 7 265T 20-core hybrid processor
- Integrated Intel AI Boost NPU (~13 TOPS)
- Ultra-compact micro form factor for dense deployments
- 16GB DDR5 memory with 256GB NVMe SSD storage
- Dual display outputs with HDMI and DisplayPort
Specifications
| Specification | Details |
|---|
| Brand | Dell |
| Part Number | PY4JY-KIT6 |
| Product Type | Micro Desktop Bundle |
| Processor | Intel Core Ultra 7 265T (20-core) |
| AI Engine | Intel AI Boost NPU (~13 TOPS) |
| Memory | 16GB DDR5 (5600 MT/s) |
| Storage | 256GB PCIe NVMe SSD |
| Graphics | Integrated Intel Graphics |
| Networking | Wi-Fi 6E, Bluetooth 5.3, Ethernet |
| Ports | USB-C, USB-A, HDMI 2.1, DisplayPort 1.4a |
| Power Supply | 90W external adapter |
| Security | TPM, chassis intrusion, lock slot |
| Operating System | Windows 11 Pro |
| Form Factor | Micro Desktop |
