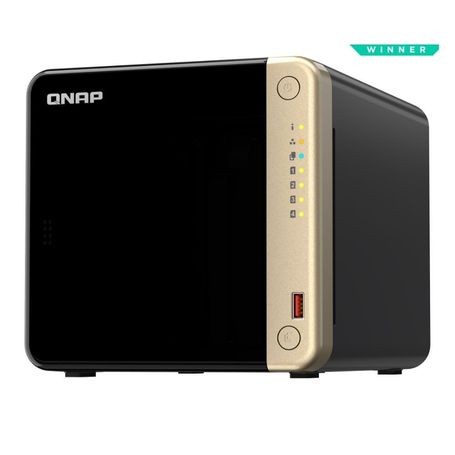

QNAP TS-464-8G-US 4-Bay High-Performance Desktop NAS View larger

QNAP TS-464-8G-US 4-Bay High-Performance Desktop NAS

TS-464-8G-US

New

4-Bay 2.5GbE NAS with Intel Quad-Core and HDMI

×




Detailed Specifications

QNAP TS-464-8G-US – Professional Desktop NAS

Overview :

The QNAP TS-464-8G-US is a high-performance 4-bay desktop NAS powered by an Intel Celeron N5095/N5105 quad-core processor. It is designed to meet the demands of small-to-medium businesses and home professionals who require a versatile storage solution for high-speed file sharing, team collaboration, and hardware-accelerated video transcoding.

Technically, the unit features dual-port 2.5GbE connectivity, which provides up to 5Gbps transfer speeds via port trunking. It effectively solves the data bottleneck associated with traditional Gigabit networks. The inclusion of two M.2 PCIe Gen 3 slots allows for NVMe SSD cache acceleration or the creation of high-speed SSD storage pools, significantly enhancing the IOPS performance for virtualization and database tasks.

Deployment is ideal for creative studios, remote offices, and media enthusiasts. The TS-464 features an HDMI 2.0 output for direct 4K video playback and real-time transcoding, making it a capable media server or surveillance workstation when used with QVR Pro. Additionally, its USB 3.2 Gen 2 (10Gbps) ports allow for rapid data transfer from external expansion units or mobile workstations.

Do not attempt to upgrade the internal RAM, as the 8GB memory is pre-installed and non-expandable on this specific SKU. For maximum durability in 24/7 operations, ensure the NAS is equipped with NAS-grade HDDs or enterprise SSDs to withstand the thermal and vibration requirements of continuous uptime.

Key Features :

  • Intel Quad-Core CPU ensures smooth multitasking and 4K transcoding

  • Dual 2.5GbE ports provide high-speed networking and failover support

  • Two M.2 PCIe Gen 3 slots support NVMe SSD caching for faster IOPS

  • HDMI 2.0 output allows for direct 4K @60Hz local video monitoring

  • USB 3.2 Gen 2 (10Gbps) ports enable ultra-fast external backups

Specifications :

AttributeDetails
BrandQNAP
Part NumberTS-464-8G-US
Product TypeDesktop NAS
ProcessorIntel Celeron N5095/N5105 4-core 2.0 GHz
Memory8GB RAM (Non-expandable)
Drive Bays4 x 3.5-inch SATA 6Gb/s
M.2 Slots2 x M.2 2280 PCIe Gen 3 x1
Network Ports2 x 2.5 Gigabit Ethernet (2.5G/1G/100M)
HDMI Output1 x HDMI 2.0 (up to 4096 x 2160 @ 60Hz)
USB Ports2 x USB 3.2 Gen 2, 2 x USB 2.0
PCIe Expansion1 x PCIe Gen 3 x2
Power Supply90W Adapter, 100-240V
Cooling1 x 120mm fan
Max Concurrent Connections1,500
