Detailed Specifications
Overview

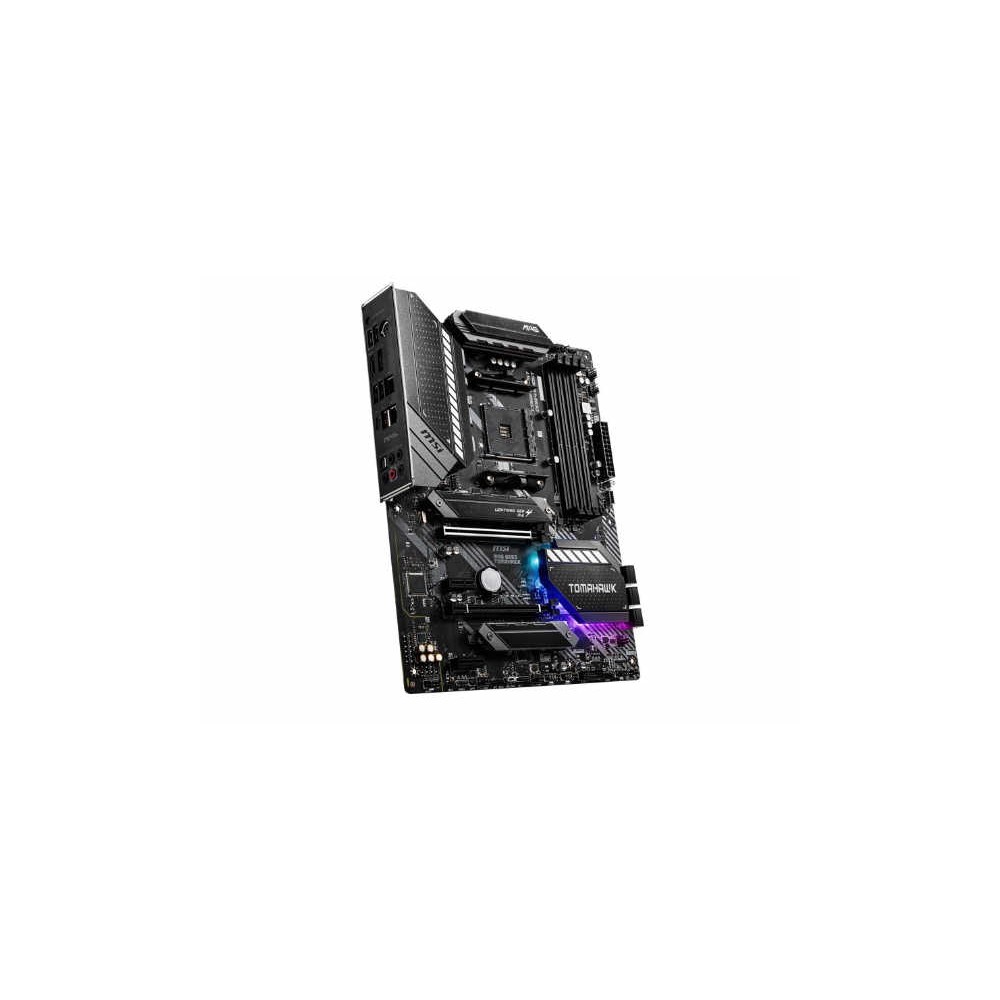

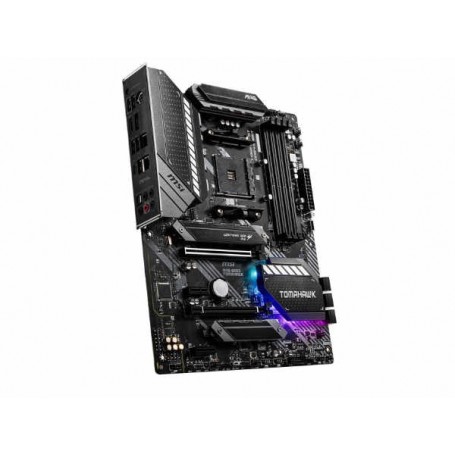

The MSI B550TMHWK MAG B550 TOMAHAWK is an ATX motherboard designed for compatible AMD Ryzen desktop processors. It features the AMD B550 chipset, DDR4 memory support, dual M.2 storage slots, PCIe expansion, and dual wired networking for gaming and productivity systems.
Key Features
- AMD B550 chipset with AM4 processor socket
- Compatible with supported AMD Ryzen desktop processors
- Four DDR4 memory slots supporting up to 128GB
- PCIe 4.0 support with compatible processors
- Two M.2 slots for compatible solid-state drives
- Six SATA 6Gb/s storage connectors
- 2.5Gb Ethernet and Gigabit Ethernet networking
- HDMI and DisplayPort outputs for compatible processors with integrated graphics
- USB Type-A and Type-C connectivity
- Audio Boost technology and high-definition audio
- ATX form factor for compatible desktop cases
Technical Specifications
| Brand Name | MSI B550TMHWK |
| Manufacturer | MSI |
| Model | MAG B550 TOMAHAWK |
| Part Number | B550TMHWK |
| Product Type | Desktop Motherboard |
| Chipset | AMD B550 |
| CPU Socket | AMD AM4 |
| Form Factor | ATX |
| Memory Type | DDR4 |
| Memory Slots | 4 |
| Maximum Memory | 128GB |
| M.2 Slots | 2 |
| SATA Ports | 6 x SATA 6Gb/s |
| Networking | 2.5Gb Ethernet and Gigabit Ethernet |
| Wireless Connectivity | No built-in Wi-Fi |
| Dimensions (L x W) | 12 x 9.6 inches (30.5 x 24.4 cm) |
Compatibility and Installation
Use a compatible AMD AM4 processor, DDR4 memory, and an ATX-compatible computer case. Confirm processor support and BIOS requirements before installation. Check graphics card, CPU cooler, storage, and power supply compatibility when planning the system.
Why Choose DC Supplies?
DC Supplies offers computer components for gaming, office, and productivity systems. Check product specifications and compatibility requirements before purchasing.
Frequently Asked Questions
1. Which processor socket does this motherboard use?
It uses the AMD AM4 socket for compatible AMD Ryzen desktop processors.
2. How much memory does it support?
It supports up to 128GB of DDR4 memory across four DIMM slots.
3. Does it support M.2 SSDs?
Yes. It has two M.2 slots and six SATA 6Gb/s connectors.
4. Does it include built-in Wi-Fi?
The standard MAG B550 TOMAHAWK model does not include built-in Wi-Fi.
5. What is the motherboard form factor?
It uses the ATX form factor and requires a compatible case.
6. Where can I find official specifications?
Visit the official MSI specifications page for detailed product information.
