Detailed Specifications

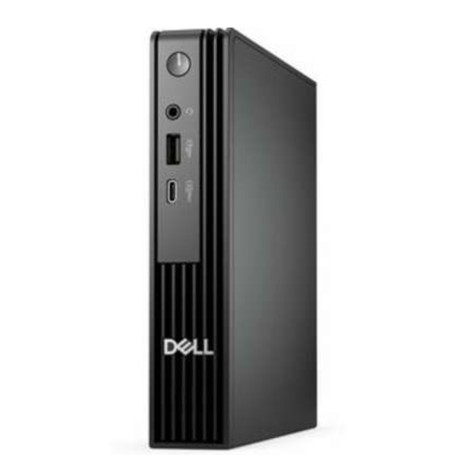

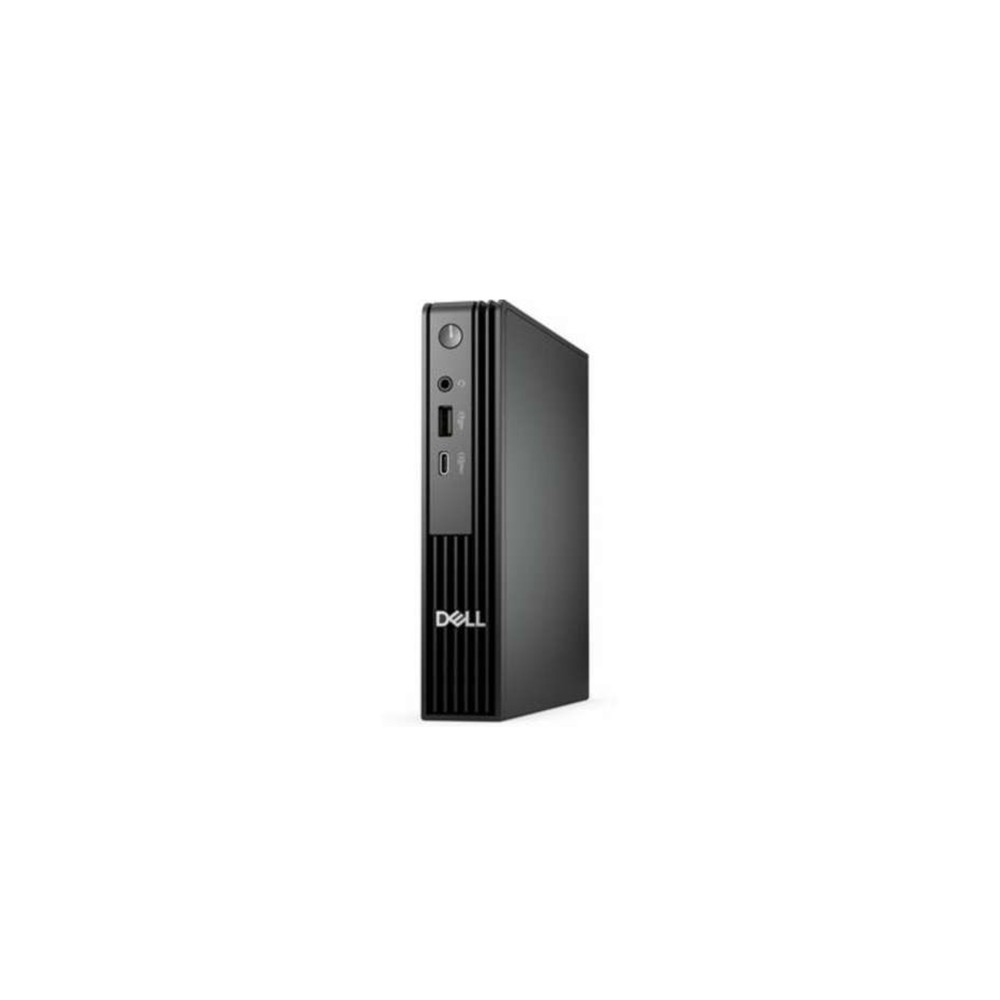

Dell KPH02 Pro Micro QCM1250 desktop Computer
Overview
The Dell KPH02 is an ultra-compact micro form factor desktop based on the Pro Micro QCM1250 platform, designed for enterprise deployments requiring high compute density in minimal physical space. It is used by IT teams for standardized endpoint rollouts across offices, VDI environments, and space-constrained workstations.
It is powered by an Intel Core Ultra 7 265T processor (20-core hybrid architecture) with integrated AI Boost NPU (~13 TOPS), paired with 32GB DDR5 memory and a 512GB PCIe NVMe SSD. The system delivers strong multi-threaded performance and supports AI-assisted workloads such as video enhancement and data processing at the edge. Integrated Intel graphics handle standard enterprise applications.
Deployment is optimized for corporate desks, mounted behind monitors, or kiosk-style installations where low power consumption (35W CPU class) and centralized management (Intel vPro) are required. Built-in Wi-Fi 6, Bluetooth, and Gigabit Ethernet enable flexible network integration across wired and wireless infrastructures.
Not suitable for GPU-intensive workloads such as CAD, 3D rendering, or high-end simulation due to integrated graphics and limited expansion. Also not ideal where large local storage or PCIe expansion is required.
Key Features
- Intel Core Ultra 7 265T with 20-core architecture
- Integrated AI Boost NPU (~13 TOPS) acceleration
- 32GB DDR5 memory for enterprise workloads
- 512GB PCIe NVMe SSD for fast data access
- Ultra-compact micro form factor deployment
Specifications
| Specification | Details |
|---|
| Brand | Dell |
| Part Number | KPH02 |
| Product Type | Micro Desktop Computer |
| Processor | Intel Core Ultra 7 265T (20-core) |
| Base Frequency | 1.5 GHz |
| Max Turbo Frequency | Up to 5.3 GHz |
| Memory | 32GB DDR5 (5600 MT/s) |
| Storage | 512GB M.2 PCIe NVMe SSD |
| Graphics | Integrated Intel Graphics |
| AI Engine | Intel AI Boost NPU (~13 TOPS) |
| Networking | Wi-Fi 6 (802.11ax), Bluetooth, Gigabit Ethernet |
| Security | Intel vPro, TPM |
| Power | 90W external adapter |
| Operating System | Windows 11 Pro |
| Form Factor | Micro (MFF / ultra-small) |
