Detailed Specifications

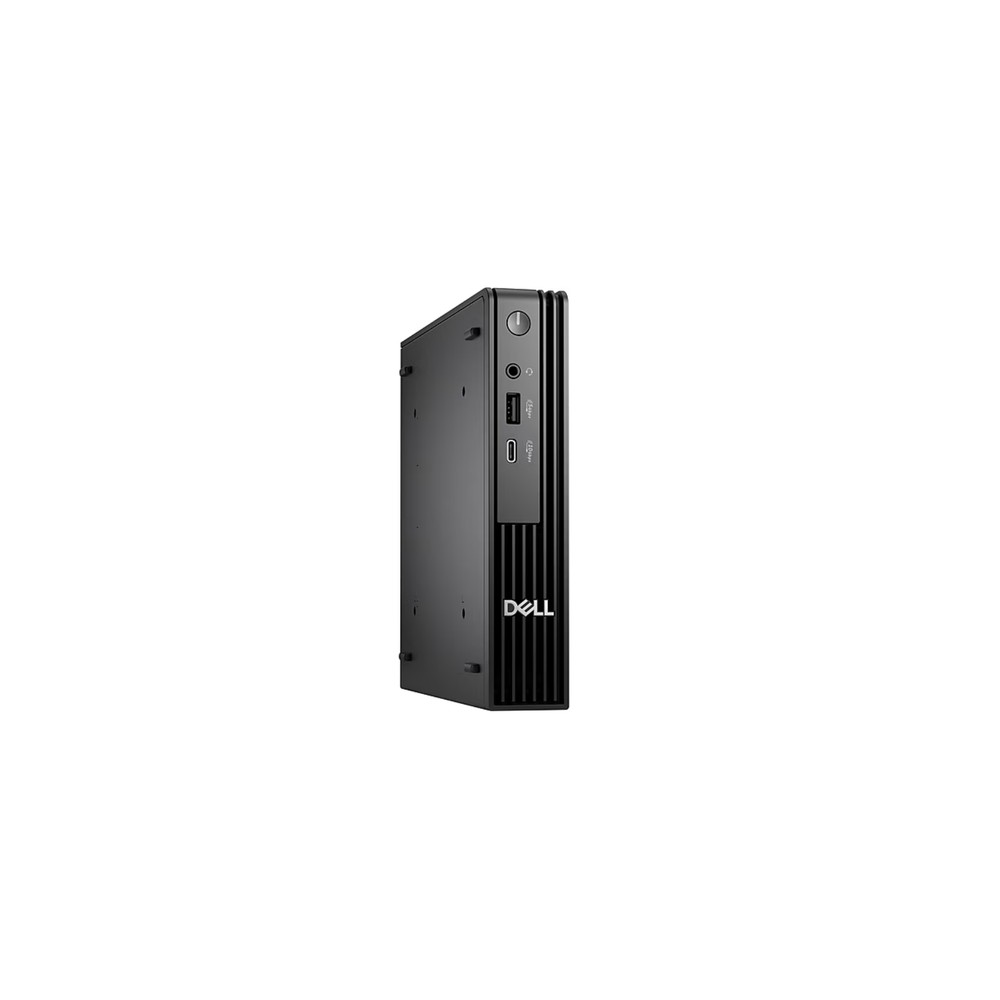

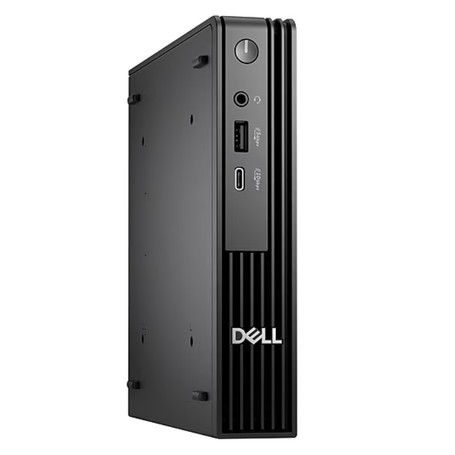

Dell 1D5HX-KIT4 Pro Micro Desktop Bundle
Overview
The Dell 1D5HX-KIT4 is a bundled micro form factor desktop solution based on the Pro Micro QCM1250 platform. It is designed for enterprise endpoint deployments where space, power efficiency, and standardized configurations are critical.
This system is built around a 14th Gen Intel Core i5-14500T processor (35W TDP) with 14 cores, paired with 16GB DDR5 memory and a 256GB PCIe NVMe SSD. It uses integrated Intel UHD 770 graphics and includes TPM for enterprise security compliance. The platform supports essential I/O including USB-C, multiple USB-A ports, DisplayPort, HDMI, and Gigabit Ethernet for structured office environments.
Deployment targets include corporate desks, call centers, education labs, and VDI endpoints where ultra-small footprint systems are required. The micro form factor allows mounting behind displays or under desks, reducing workspace clutter and improving cable management.
Not suitable for GPU-intensive workloads, high-end visualization, or local compute-heavy applications due to integrated graphics and limited expansion. Also not ideal where wireless connectivity is mandatory, as configurations may exclude onboard Wi-Fi.
Key Features
- Intel Core i5-14500T 14-core 35W processor
- 16GB DDR5 memory for business multitasking
- 256GB PCIe NVMe SSD for fast storage access
- Ultra-compact micro form factor deployment
- TPM-enabled platform for enterprise security
Specifications
| Specification | Details |
|---|
| Brand | Dell |
| Part Number | 1D5HX-KIT4 |
| Product Type | Micro Desktop Bundle |
| Processor | Intel Core i5-14500T (14-core, 35W) |
| Base Frequency | 1.7 GHz |
| Max Turbo Frequency | Up to 4.8 GHz |
| Memory | 16GB DDR5 |
| Storage | 256GB PCIe NVMe SSD |
| Graphics | Intel UHD Graphics 770 |
| Network | Gigabit Ethernet (RJ-45) |
| Ports | USB-C, USB-A, HDMI, DisplayPort |
| Security | Trusted Platform Module (TPM) |
| Form Factor | Micro (MFF / ultra-small) |
| Operating System | Windows 11 Pro |
