Detailed Specifications

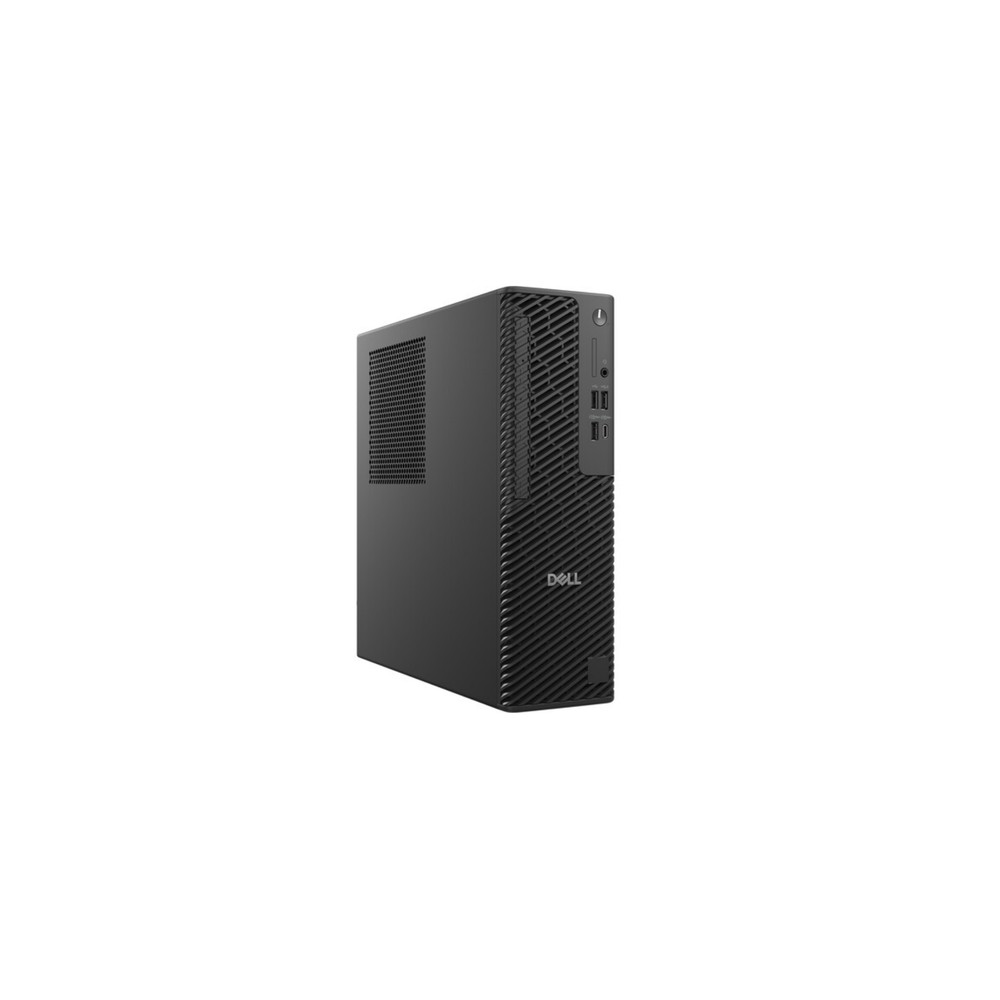

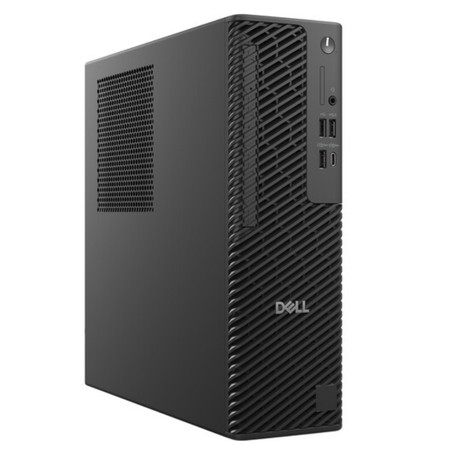

Dell X4W5G Pro Max Slim FCS1250 with Intel Core Ultra 7,265
Overview :
The Dell X4W5G is a high-performance Pro Max Slim FCS1250 desktop engineered to deliver workstation-class power in a compact 8.5L chassis. It is powered by the Intel Core Ultra 7,265 icosa-core processor, featuring a dedicated Intel AI Boost NPU and 20 computational cores (8 Performance and 12 Efficiency). This architecture is optimized for AI-driven workflows, allowing the system to effortlessly tackle large datasets, run complex analyses, and optimize machine learning models with localized AI acceleration.
Technical specifications include 16GB of DDR5-5600 memory and a 512GB PCIe NVMe Gen4 SSD. The "Pro Max Slim" design balances an exceptionally small footprint with enterprise-grade expansion, featuring three M.2 SSD slots for up to 8.5TB of total storage and three PCIe expansion slots. Despite its size, the system is designed for innovative thermal management and supports professional graphics upgrades, making it a versatile hub for modern, data-centric office environments.
Built for the AI-ready workspace, the X4W5G features a 360W internal power supply and a comprehensive I/O array, including a 20Gbps USB-C 3.2 Gen 2x2 port and three native DisplayPort outputs for expansive multi-monitor setups. It includes an 8x DVD+/-RW optical drive and supports advanced security via a dedicated hardware TPM and chassis intrusion detection. This desktop is an ideal choice for procurement teams seeking to maximize desk space without sacrificing the computational throughput of a traditional tower.
Key Features :
Intel Core Ultra 7,265 20-core CPU with dedicated AI Boost NPU
16GB DDR5 RAM (expandable to 128GB) for high-speed multitasking
512GB PCIe NVMe SSD provides rapid boot times and system response
Ultra-compact 8.5L chassis with scalable internal storage (up to 3x M.2)
Support for three external displays via native DisplayPort interfaces
Specifications :
| Technical Specifications | Details |
| Brand | Dell |
| Part Number | X4W5G |
| Product Type | Pro Max Slim FCS1250 Desktop |
| Processor | Intel Core Ultra 7,265 (Series 2) |
| Core Count | 20-Core (8P + 12E) up to 5.2 GHz |
| NPU Performance | Integrated Intel AI Boost |
| Standard Memory | 16 GB DDR5 5600 MT/s (1 x 16 GB) |
| Storage | 512 GB M.2 PCIe NVMe Gen4 SSD |
| Graphics | Intel Graphics (Integrated) |
| Optical Drive | 8x DVD+/-RW 9.5mm ODD |
| Wired Networking | 1 x RJ45 Gigabit Ethernet |
| Interfaces | 1x USB-C 3.2 Gen 2x2, 1x USB-C 3.2 Gen 2, 8x USB-A |
| Video Output | 3 x DisplayPort (supports up to 5K @60Hz) |
| Expansion | 1x PCIe 4.0 x16, 1x PCIe 3.0 x4, 1x PCIe 3.0 x1 |
| Security | TPM 2.0, Chassis Intrusion Switch, Kensington Slot |
| Power Supply | 360W Internal PSU |
