Detailed Specifications

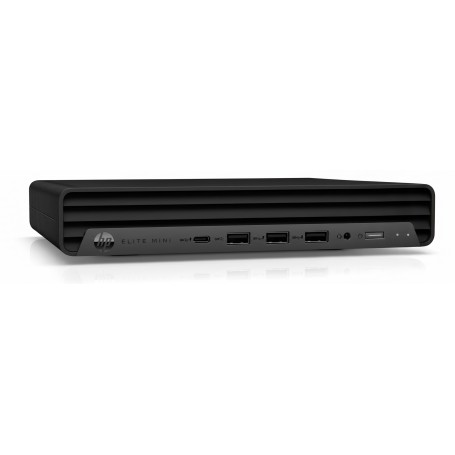

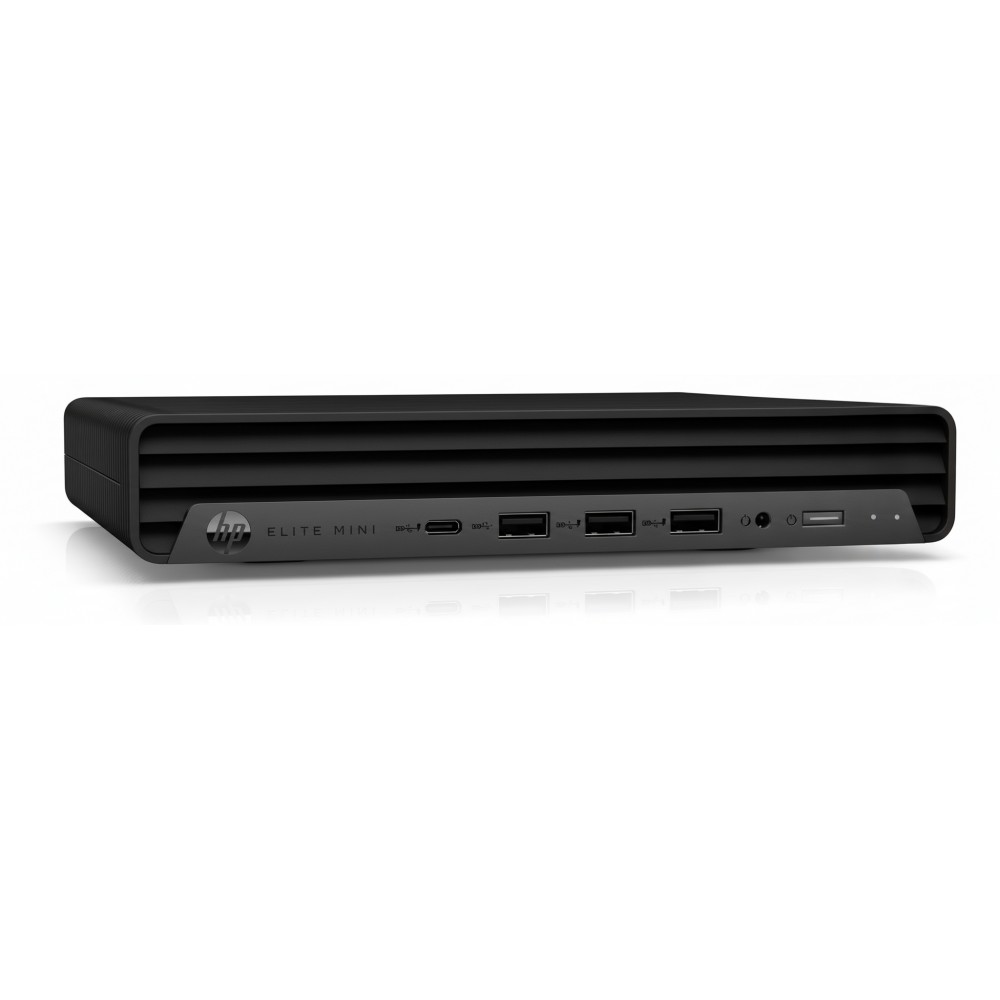

HP 9C428AW – Mini Conference PC / Microsoft Teams Rooms
Overview :
The HP 9C428AW is a compact mini PC engineered for use in collaboration and meeting‑spaces, especially those deploying the Microsoft Teams Rooms platform. It is equipped with a 12th‑generation Intel® Core™ i7‑12700T processor (12 cores, 20 threads) and integrates 16 GB of DDR5‑4800 memory paired with a 256 GB NVMe SSD to handle video conferencing and content sharing without the footprint of a full desktop. The system supports dual displays via DisplayPort 1.4 and HDMI 2.0b, and includes onboard Intel® Wi‑Fi 6E (AX211) and Bluetooth 5.3 wireless for flexible connectivity in modern rooms. With a form factor sized at just 6.97 × 6.89 × 1.35 inches and weight around 3.13 lbs, it can be mounted under a table or behind a display using VESA brackets, making it ideal for boardrooms, huddle‑spaces, and edge‑room deployments. The device also features HP’s Sure Start Gen7 firmware protection and supports HP Manageability Integration Kit for enterprise IT environments.
Key Features :
12‑core Intel® Core™ i7‑12700T processor with Turbo Boost which is up to 4.7 GHz
16 GB DDR5‑4800 memory (2 × 8 GB) and 256 GB PCIe NVMe SSD
Dual‑display support via HDMI 2.0b + DisplayPort 1.4
Built‑in Intel® Wi‑Fi 6E (AX211) and Bluetooth 5.3 for wireless connectivity
Mountable mini form factor (6.97 × 6.89 × 1.35 inches) weighing approx. 3.13 lbs
Specifications :
| Specification | Value |
|---|
| Brand | HP |
| Part Number | 9C428AW |
| Product Type | Mini Conference PC / Microsoft Teams Rooms |
| Processor | Intel® Core™ i7‑12700T (12 cores, 20 threads) |
| Memory | 16 GB DDR5‑4800 MHz (2 × 8 GB) |
| Internal Storage | 256 GB PCIe® NVMe™ TLC SSD |
| Graphics | Integrated Intel® UHD Graphics 770 |
| Wireless | Intel® Wi‑Fi 6E AX211 (2×2) & Bluetooth 5.3 |
| I/O Ports | 1 × USB‑C 20 Gbps (100W PD), 3 × USB‑A 10 Gbps, RJ‑45 |
| Dimensions (W×D×H) | 6.97 × 6.89 × 1.35 inches |
| Weight | 3.13 lbs |
| Operating System | Windows 11 IoT Enterprise (or Windows 10 IoT) |
| Chipset | Intel® Q670 (vPro® capable) |
| Power Supply | 90 W external adapter, up to ~89% efficiency |
| Security Management | HP Sure Start Gen7 firmware protection |
