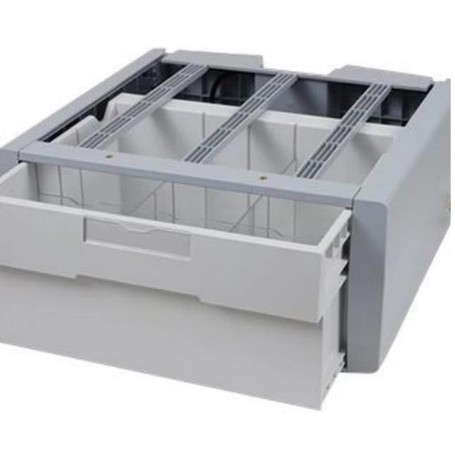

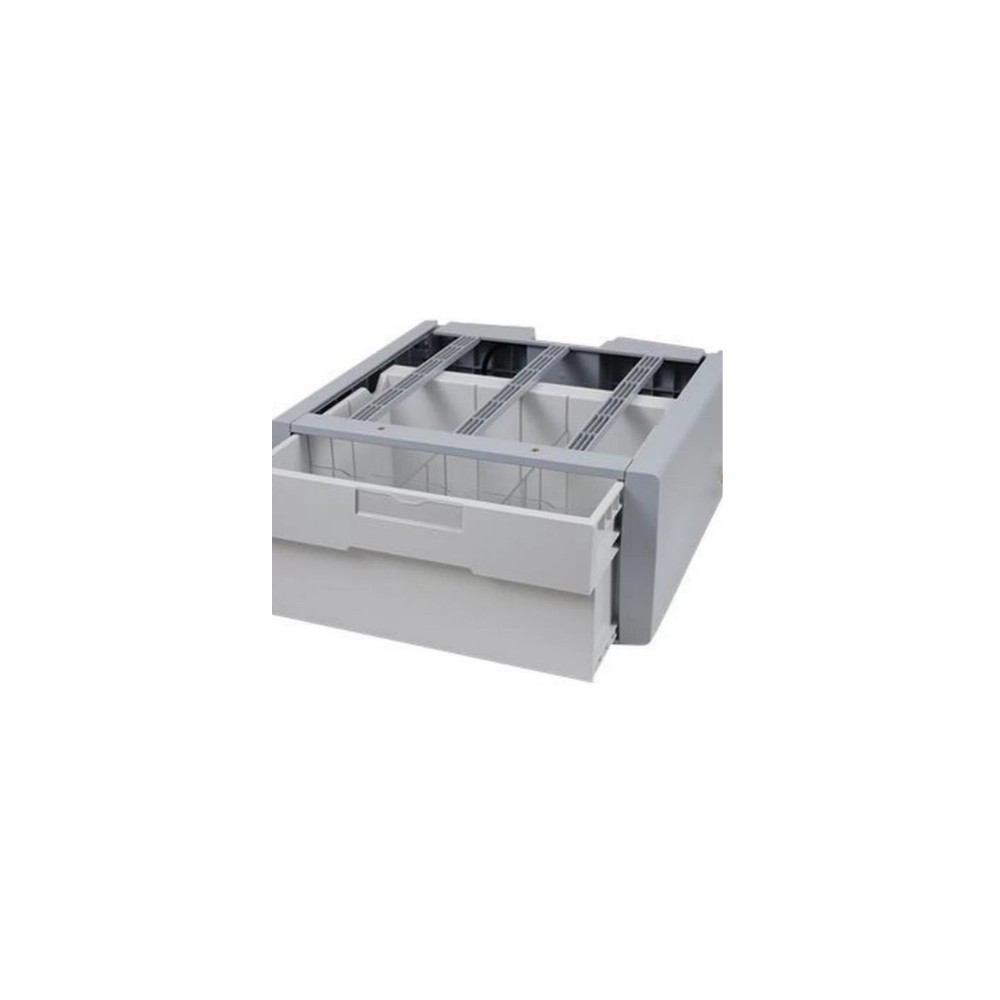

Ergotron 97-974 – SV43/44 Supplemental Single Tall Drawer
Overview
The Ergotron 97-974 SV43/44 Supplemental Single Tall Drawer adds secure storage capacity to compatible StyleView SV43 and SV44 medical carts. The single tall configuration provides one large drawer that attaches beneath the cart's primary drawer.
The drawer works with the cart's electronic auto-locking drawer system and provides removable storage with configurable dividers. The primary drawer must be installed first because it contains the drawer controller.
Technical Information
The 97-974 provides a large 6-inch-high internal storage area measuring approximately 12 inches wide by 10.5 inches deep. Included dividers allow the drawer interior to be configured into up to nine compartments.
The drawer has a maximum load capacity of 2.2 lb (1 kg). It features both electronic and key-lock access and can be removed for stocking and cleaning.
Compatibility
The 97-974 is compatible only with Ergotron StyleView SV43 and SV44 series carts. It attaches underneath the cart's primary drawer as a supplemental storage drawer. Ergotron documentation recommends an appropriate Drawer Travel-Stop accessory when the cart is configured with multiple drawer rows.
Key Features
- Single tall supplemental drawer for SV43/SV44 carts
- 2.2 lb (1 kg) maximum load capacity
- Electronic auto-locking and key-lock access
- Removable drawer with configurable internal dividers
- Large 6-inch-high storage compartment
Applications
The 97-974 is intended for healthcare and point-of-care environments requiring additional secure storage on StyleView medical carts. It can be used for medications, supplies and other items that need organized, controlled-access storage close to the point of care.
DC Supplies Product Note
This listing applies specifically to Ergotron manufacturer part number 97-974, the SV43/44 Supplemental Single Tall Drawer. It is a cart accessory and not a complete medical cart. Compatibility is limited to the specified SV43/SV44 cart family, and the primary drawer must be installed first because it contains the drawer controller.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Manufacturer Part Number | 97-974 |
| Product | SV43/44 Supplemental Single Tall Drawer |
| Product Type | Supplemental Cart Drawer |
| Compatible Cart Series | StyleView SV43 and SV44 |
| Drawer Configuration | Single Tall |
| Maximum Load Capacity | 2.2 lb (1 kg) |
| Internal Dimensions | 6 H × 12 W × 10.5 D inches |
| Internal Dimensions | 150 × 305 × 267 mm |
| Storage Compartments | Up to 9 with included dividers |
| Locking | Electronic auto-lock and key lock |
| Drawer | Removable |
| Color | Gray / White |
| Shipping Dimensions | 18 × 18 × 9.5 inches |
| Shipping Weight | 10 lb (4.5 kg) |
| Warranty | 5 years mechanical components; 1 year electrical components |
FAQs
What is the Ergotron 97-974?
The 97-974 is an SV43/44 Supplemental Single Tall Drawer designed to add secure storage to compatible StyleView medical carts.
Which carts are compatible with the 97-974?
The drawer is compatible only with Ergotron StyleView SV43 and SV44 series carts.
What is the drawer capacity?
The maximum load capacity is 2.2 lb (1 kg).
What are the internal drawer dimensions?
The internal storage area is approximately 6 inches high × 12 inches wide × 10.5 inches deep.
Does the drawer lock?
Yes. The drawer works with the cart's electronic auto-locking system and also provides key-lock access.
Can the drawer be removed?
Yes. The drawer is removable for stocking and cleaning.
Are dividers included?
Yes. Included dividers can configure the drawer into up to nine compartments.
Is the primary drawer required?
Yes. The primary drawer must be installed first because it contains the drawer controller. The 97-974 attaches beneath the primary drawer.
Is the complete cart included?
No. The 97-974 is a supplemental drawer accessory for compatible StyleView carts.
What is the warranty?
Ergotron specifies five years for mechanical components and one year for electrical components.
