Detailed Specifications

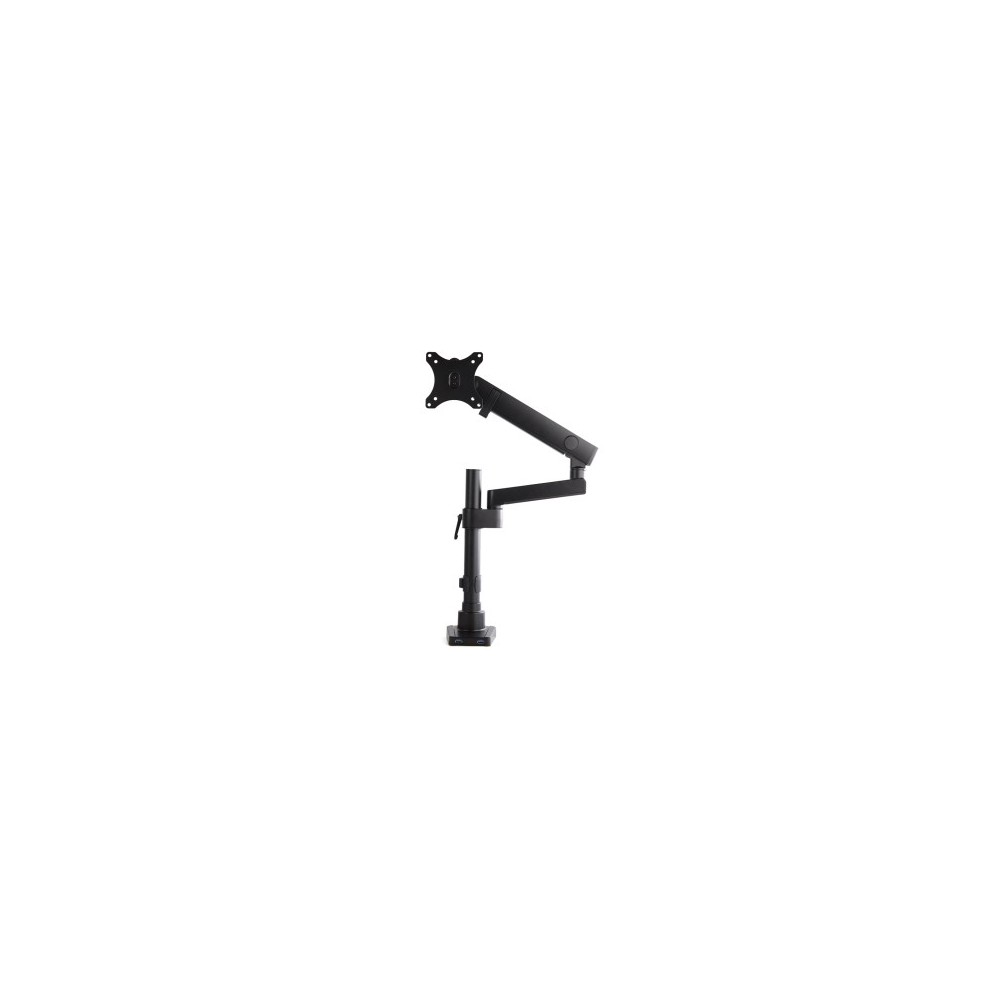

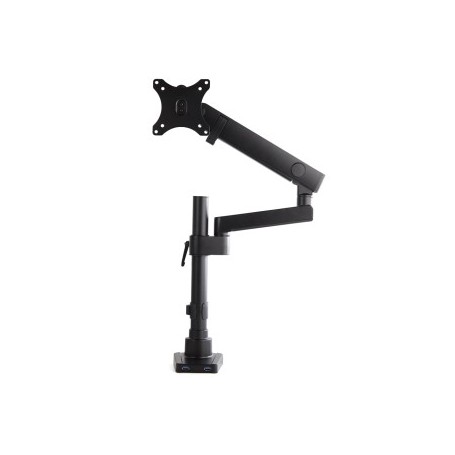

StarTech ARMPIVOT2USB3 - Desk Mount Monitor Arm w/ USB3
Overview
The StarTech ARMPIVOT2USB3 is a premium single-monitor desk mount arm engineered for workspace optimization and ergonomic display positioning. It supports VESA-compatible monitors up to 34 inches and 17.6 lb (8 kg) load, while integrated USB 3.0 passthrough ports add convenient peripheral connectivity without additional hubs.
Ideal for office, control room, or design environments, it provides full motion adjustment × including tilt, swivel, rotation, and height adjustment × enabling precise user comfort and reduced neck strain. The arm mounts securely using either a C-clamp or grommet installation.
Not suitable for multi-monitor setups or displays exceeding the specified weight/size, as performance and warranty coverage are tied to supported monitor ranges.
Key Features
• Supports single monitor up to 34″ & 17.6 lb load
• Built-in USB 3.0 ports for direct device connectivity
• Full motion: tilt, swivel, rotate, and height adjust
• Stable aluminum construction with cable management
• Desk clamp or grommet mount options
Technical Specifications
| Specification | Detail |
|---|
| Brand | StarTech |
| Part Number | ARMPIVOT2USB3 |
| Product Type | Desk Mount Monitor Arm |
| Supported Displays | Single monitor |
| Maximum Screen Size Supported | Up to 34 inches |
| Maximum Load Capacity | 17.6 lb (8 kg) |
| Minimum Screen Size Supported | 17″ |
| VESA Compatibility | 75×75, 100×100 mm |
| USB Ports | 2 × USB 3.0 |
| Motion Adjustments | Tilt, swivel, rotate, height adjust |
| Mounting | C-clamp or grommet mount |
| Material | Aluminum construction |
| Color | Black |
| Warranty | 2-year limited |
| Height (inches) | 24.40″ |
| Width (inches) | 1.40″ |
| Length (inches) | 23.40″ |
| Weight (lbs) | 7.20 lbs |
