Detailed Specifications

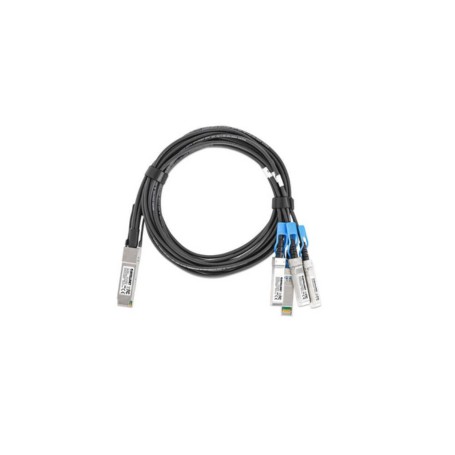

INTELLINET 509756 100G QSFP28 to 4×25G SFP28 Passive DAC Breakout Cable
Overview :
The INTELLINET 509756 is a passive Direct Attach Copper (DAC) breakout cable that converts a single 100 Gigabit QSFP28 connection into four independent 25 Gigabit SFP28 connections. It is designed for high-density data centers, enterprise networks, cloud infrastructure, and HPC environments requiring short-reach, high-bandwidth connectivity.
The cable supports an aggregate bandwidth of 100 Gbps by providing four 25 Gbps SFP28 channels. Its passive twinax construction delivers ultra-low latency, minimal power consumption (less than 0.15 W), and eliminates the need for separate optical transceivers, reducing deployment cost and complexity.
The 1 m (3 ft) cable is well suited for Top-of-Rack (ToR) switching, switch stacking, adjacent rack interconnects, and server-to-switch connections. Durable zinc die-cast QSFP28 and SFP28 connectors with pull-to-release latches provide secure installation and simplified maintenance.
The 509756 is MSA- and IBTA-compliant and programmed for compatibility with Cisco and numerous other MSA-compliant networking platforms. It should be used only for short-distance passive DAC applications and is not intended for long-reach fiber links or 10 Gigabit Ethernet deployments.
Key Features :
- Breaks 100G QSFP28 into four 25G SFP28 links
- Passive DAC design with under 0.15 W power draw
- MSA and IBTA compliant for broad compatibility
- AWG 30 twinax cable for short-reach networking
- Hot-swappable connectors simplify deployment
Specifications :
| Specification | Value |
|---|
| Brand | INTELLINET |
| Part Number | 509756 |
| Product Type | Passive DAC Breakout Cable |
| Connector A | 1 × QSFP28 |
| Connector B | 4 × SFP28 |
| Ethernet Speed | 100 Gbps to 4 × 25 Gbps |
| Cable Type | Passive Direct Attach Copper (DAC) |
| Cable Length | 3 ft (1 m) |
| Wire Gauge | AWG 30 |
| Compliance | MSA, IBTA |
| Compatibility | Cisco-compatible, MSA-compliant devices |
| Connector Material | Zinc die-cast housing |
| Hot Swappable | Yes |
| Power Consumption | Less than 0.15 W |
| Color | Black |
