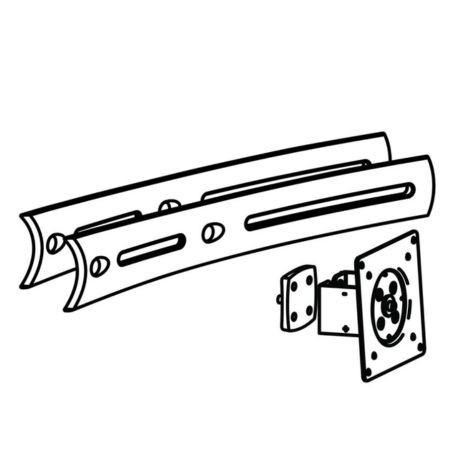

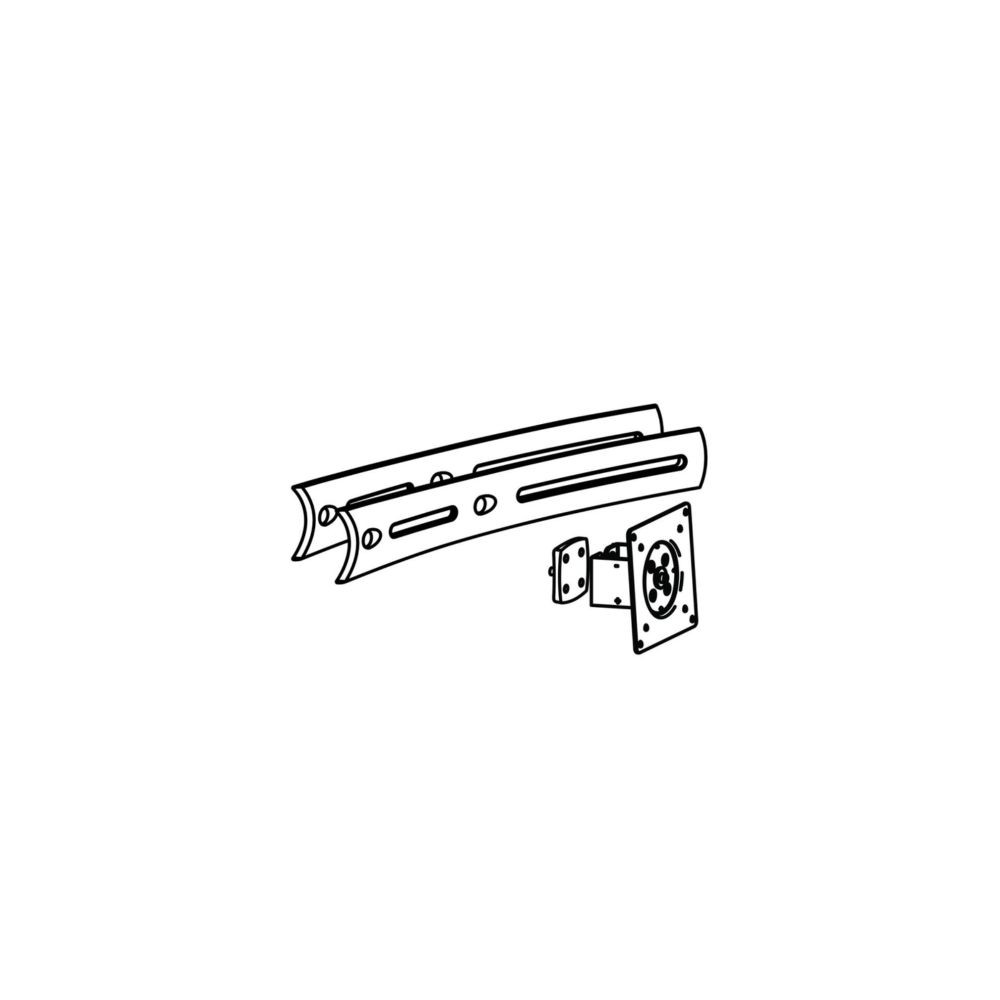

The Ergotron 97-446-200 DS100 Crossbar Extender is an expansion kit designed to increase the width of a compatible Ergotron DS100 monitor crossbar from 28 inches to 46 inches. The kit includes short extension arms and a center display bracket, allowing a compatible dual-monitor setup to be configured for three displays.
Key Features
- Expanded crossbar width: Extends a compatible 28-inch DS100 crossbar to 46 inches (approximately 117 cm).
- Triple-display configuration: Includes a center display bracket for mounting an additional monitor between two existing displays.
- Durable construction: Combines aluminum and steel components for a stable mounting assembly.
- VESA compatibility: Supports 75 × 75 mm and 100 × 100 mm mounting patterns with compatible monitor pivots.
- Modular system: Works with compatible DS100 components to support different monitor arrangements.
Product Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 97-446-200 |
|---|
| Product Type | Short DS100 Crossbar Extender Kit |
|---|
| Product Series | DS100 |
|---|
| Color | Black |
|---|
| Construction | Aluminum and steel |
|---|
| Original Crossbar Width | 28 inches (71 cm) |
|---|
| Extended Crossbar Width | 46 inches (117 cm) |
|---|
| Maximum Monitor Weight | Up to 31 lb (14 kg) per monitor, subject to system configuration and balance requirements |
|---|
| Supported VESA Patterns | 75 × 75 mm and 100 × 100 mm, with compatible pivots |
|---|
| Intended Configuration | Compatible DS100 multi-monitor mounting systems |
|---|
| Included Components | Short extension arms, center display bracket, and attachment hardware |
|---|
| Shipping Weight | Approximately 6 lb (2.7 kg) |
|---|
| Warranty | 5 years, according to published product specifications |
|---|
| EAN | 698833008296 |
|---|
Upgrade to a Triple-Monitor Workstation
This extender is designed for users who need more horizontal mounting space on a compatible DS100 crossbar. By increasing the crossbar width and adding a center display bracket, it supports a three-monitor arrangement without requiring a completely different crossbar assembly.
When three displays are installed, the maximum outside width of each monitor is approximately 20 inches (51 cm). Actual compatibility depends on monitor dimensions, pivot placement, total system weight, and balance.
Compatibility and Installation
The 97-446-200 is an accessory for compatible Ergotron DS100 crossbar systems. It is not a standalone monitor stand. The compatible 28-inch crossbar, pole or base assembly, and required monitor pivots must be available separately unless already included in your existing configuration.
Follow Ergotron's assembly instructions and observe the system's balance requirements to help prevent tipping. Confirm the weight and dimensions of all displays before configuring a multi-monitor setup.
DC Supplies Product Note
Before ordering, verify your existing DS100 crossbar model, required pivots, monitor VESA patterns, and available mounting space. This kit contains the short extenders and center display bracket; it does not represent a complete triple-monitor stand.
Frequently Asked Questions
1. What is the Ergotron 97-446-200 used for?
It extends a compatible DS100 crossbar to support a wider monitor arrangement and includes a center bracket for an additional display.
2. How wide does the crossbar become?
The extender increases the compatible 28-inch crossbar width to 46 inches (approximately 117 cm).
3. Can it support three monitors?
Yes. It is designed to help convert a compatible dual-monitor DS100 crossbar into a triple-display configuration, provided the monitor dimensions and system balance requirements are met.
4. Which VESA patterns are supported?
Compatible monitor pivots support 75 × 75 mm and 100 × 100 mm VESA patterns.
5. Is the complete monitor stand included?
No. This is an extender kit. The compatible crossbar, pole or base assembly, and any separately required pivots are not included unless explicitly stated.
6. What should I check before purchasing?
Confirm DS100 compatibility, monitor dimensions and weights, VESA patterns, required pivots, and the balance requirements of the completed assembly.
