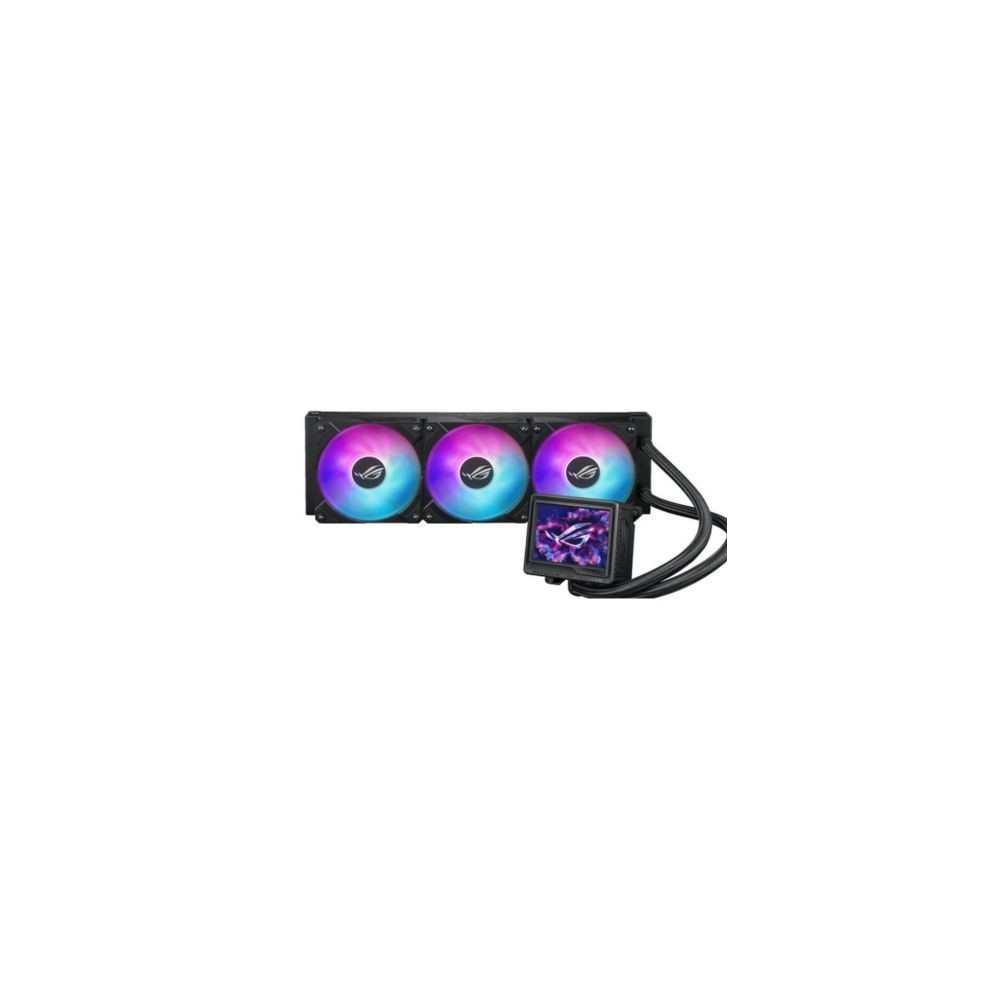

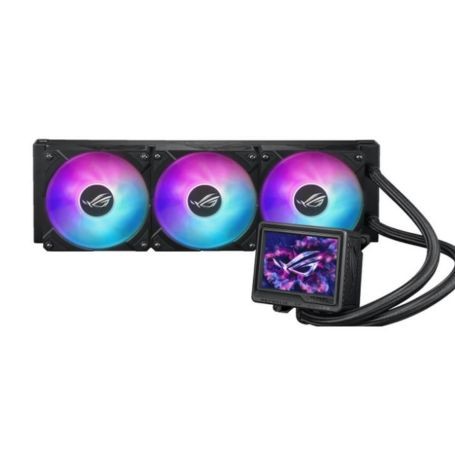

The ASUS ROG Ryujin III 360 ARGB Extreme is an all-in-one liquid CPU cooling solution designed for high-performance desktop systems. It combines an Asetek Emma Gen8 V2 pump, a 360mm aluminum radiator, three magnetic daisy-chainable ARGB fans, and an integrated fan inside the pump housing.
A 3.5-inch full-color LCD provides customizable visuals and supported system-monitoring information. The magnetic fan design simplifies installation by connecting the radiator fans together, helping reduce cable clutter inside the PC case.
Key Features
- Asetek Emma Gen8 V2 pump: Advanced liquid-cooling hardware designed to transfer heat efficiently from compatible processors.
- 3.5-inch full-color LCD: Displays customizable images, animations, and supported real-time system information at 640 × 480 resolution.
- Three magnetic ARGB fans: Thick 30mm fans connect through a magnetic daisy-chain system for simplified installation and cable management.
- Integrated pump fan: Provides additional airflow around the CPU socket to help cool the motherboard's voltage regulator area.
- Aura Sync lighting: Supports compatible ASUS Aura Sync lighting customization for coordinated RGB effects.
Advanced Liquid Cooling
The cooler uses a copper CPU contact plate and an aluminum radiator measuring 399.5 × 120 × 30mm. Sleeved rubber tubing with a length of 400mm connects the pump assembly to the radiator.
The Asetek Emma Gen8 V2 pump and adjustable mounting bracket are designed to provide consistent CPU contact and effective heat transfer. The integrated fan supplements airflow around the processor socket, helping manage temperatures in the surrounding motherboard power-delivery area.
Magnetic ARGB Fan Design
The included three 120mm ROG magnetic daisy-chainable fans feature a 30mm frame thickness and support PWM/DC control. Their magnetic connectors join the fans and transmit power and control signals through a simplified cable arrangement.
With fan speeds ranging from 0 to 2800 RPM, the cooling system can adjust airflow according to system temperature and configured fan settings. Compatible Aura Sync software allows users to customize lighting effects.
3.5-Inch LCD Display
The full-color 3.5-inch LCD has a resolution of 640 × 480 pixels. Through compatible ASUS software, users can personalize the display with ROG visuals, images, animations, and supported real-time system information.
The display adds a customizable visual element to the pump housing while providing a convenient way to present selected hardware-monitoring information. Available display functions depend on compatible software and system configuration.
Specifications
| Brand | ASUS |
|---|
| Part Number / MPN | ROG RYUJIN III 360 ARGB EXTREME |
|---|
| Product Type | All-in-One Liquid CPU Cooler |
|---|
| Product Series | ROG Ryujin III |
|---|
| Pump | Asetek Emma Gen8 V2 |
|---|
| Water Block Dimensions | 89 × 92 × 108mm |
|---|
| CPU Contact Plate | Copper |
|---|
| Integrated Fan | Yes |
|---|
| Integrated Fan Speed | 5100 RPM ±10% |
|---|
| Integrated Fan Airflow | 21.08 CFM |
|---|
| Integrated Fan Air Pressure | 5.53 mmH₂O |
|---|
| Radiator Size | 360mm class |
|---|
| Radiator Dimensions | 399.5 × 120 × 30mm |
|---|
| Radiator Material | Aluminum |
|---|
| Tubing | Sleeved rubber tube |
|---|
| Tubing Length | 400mm |
|---|
| Radiator Fans | 3 × 120mm magnetic daisy-chainable ARGB fans |
|---|
| Fan Dimensions | 120 × 120 × 30mm |
|---|
| Fan Speed | 0–2800 RPM ±10% |
|---|
| Fan Airflow | 89.73 CFM |
|---|
| Fan Static Pressure | 5.15 mmH₂O |
|---|
| Fan Noise | 36 dB(A) |
|---|
| Fan Control | PWM/DC |
|---|
| Display | 3.5-inch full-color LCD |
|---|
| Display Resolution | 640 × 480 pixels |
|---|
| Lighting | ARGB with ASUS Aura Sync support |
|---|
| Intel Socket Compatibility | LGA 1851, LGA 1700, LGA 1200, LGA 115x |
|---|
| AMD Socket Compatibility | AM5, AM4 |
|---|
| Warranty | 6 years, subject to regional terms |
|---|
Compatibility and Installation
The ROG Ryujin III 360 ARGB Extreme supports selected Intel LGA 1851, LGA 1700, LGA 1200, and LGA 115x sockets, along with AMD AM5 and AM4 platforms. Verify your exact processor socket and motherboard compatibility before installation.
Check that your PC case supports a 360mm radiator and provides sufficient clearance for the 399.5mm radiator length, 30mm radiator thickness, and 30mm fan thickness. Additional clearance may be needed depending on the mounting location and surrounding components.
Follow the manufacturer's installation instructions for pump mounting, fan connections, and software setup. The cooler comes with thermal compound pre-applied to the CPU contact plate.
Package Contents
- ASUS ROG Ryujin III 360 ARGB Extreme liquid CPU cooler
- Three 120mm ARGB radiator fans
- Male daisy-chain fan cable
- Female daisy-chain fan cable
- Accessory pack of screws and brackets
- ROG VIP card
- ROG sticker
- Quick start guide
Package contents may vary by region. Confirm the contents of the specific retail package with the supplier before purchase.
Frequently Asked Questions
Which processor sockets are supported?
The cooler supports Intel LGA 1851, LGA 1700, LGA 1200, and LGA 115x sockets, as well as AMD AM5 and AM4. Confirm compatibility with your exact CPU and motherboard.
Does the cooler include RGB lighting?
Yes. It includes three ARGB radiator fans and supports ASUS Aura Sync for lighting customization with compatible hardware and software.
Can the LCD display be customized?
Yes. The 3.5-inch full-color LCD supports compatible personalized images, animations, and system-monitoring information through ASUS software.
How much radiator space is required?
The radiator measures 399.5 × 120 × 30mm and uses three 120 × 120 × 30mm fans. Confirm your case's radiator mounting support and component clearances before installation.
Does the cooler require separate thermal compound?
Thermal compound is pre-applied to the CPU contact plate. Follow ASUS installation guidance when mounting the cooler.
DC Supplies Product Note
The ASUS ROG Ryujin III 360 ARGB Extreme combines a 360mm liquid-cooling radiator, an Asetek Emma Gen8 V2 pump, magnetic ARGB fans, and a customizable 3.5-inch LCD. Before ordering, verify processor socket compatibility and ensure your case can accommodate the radiator and fan assembly.
