Overview

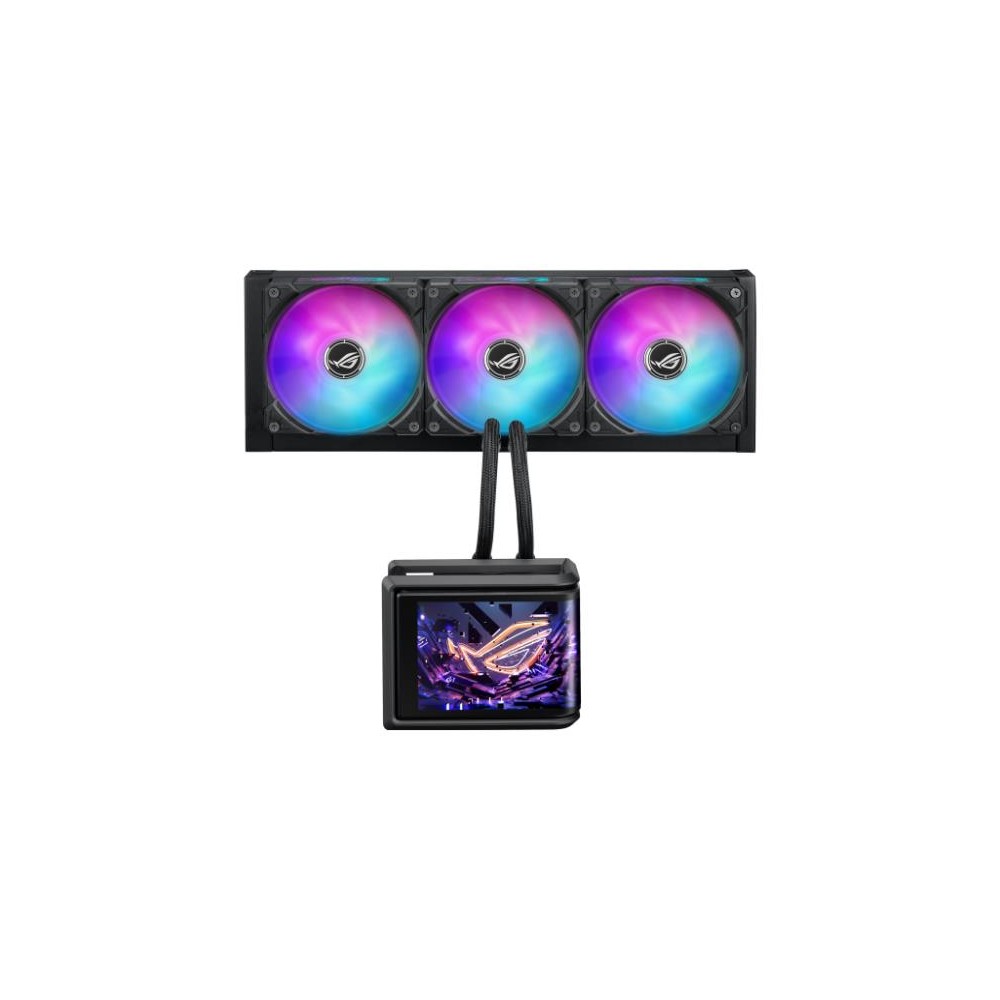

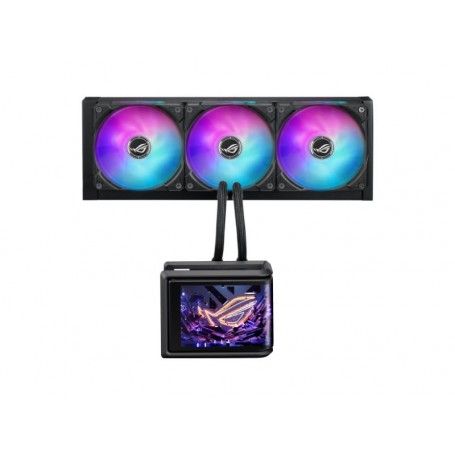

The ASUS ROG Ryuo IV SLC 360 ARGB is a 360mm all-in-one CPU liquid cooler designed for desktop systems using supported AMD and Intel processor sockets. It combines a liquid cooling assembly with a 6.67-inch AMOLED display, three 120mm ARGB fans, and ASUS Aura Sync support.
Cooling System
The cooler uses a copper CPU contact plate and an aluminum radiator measuring 394 × 140 × 32 mm. The pump operates at 1800–3200 RPM ±10%, while the 200mm sleeved FEP tubing connects the cooling assembly.
Display and Fan System
The integrated 6.67-inch AMOLED display can present customized content and hardware information through ASUS software. Three ROG RYUO IV MF-12C ARGB fans are supplied, with each fan measuring 120 × 120 × 25 mm and operating at 800–2650 RPM ±10%.
CPU Compatibility
The ASUS ROG Ryuo IV SLC 360 ARGB supports AMD AM5 and AM4 processors and Intel processors using LGA 1851 or LGA 1700 sockets. Chassis compatibility should also be confirmed for the 360mm radiator and associated fan assembly.
Key Features
- 360mm all-in-one liquid CPU cooling design
- 6.67-inch AMOLED display with ASUS Aura Sync support
- Three 120mm ROG RYUO IV MF-12C ARGB fans
- 71.44 CFM maximum specified fan airflow and 5.45 mmH2O static pressure
- Supports AMD AM5/AM4 and Intel LGA 1851/1700 sockets
Applications
The cooler is intended for compatible desktop PC configurations requiring a 360mm liquid cooling solution with integrated display functionality and ARGB lighting. Its supported socket range covers current AMD AM5 and AM4 platforms as well as Intel LGA 1851 and LGA 1700 platforms.
DC Supplies Product Note
Before installation, verify that the chassis provides sufficient clearance for the 394 × 140 × 32 mm radiator and three 120mm fans. Socket compatibility should also be checked against the processor and motherboard being deployed.
Specifications
| Brand | ASUS |
|---|
| Product Family | ROG |
|---|
| Part Number / MPN | ROG Ryuo IV SLC 360 ARGB |
|---|
| Product Type | All-in-One CPU Liquid Cooler |
|---|
| Water Block Dimensions | 133 × 105 × 123 mm |
|---|
| CPU Plate Material | Copper |
|---|
| Pump Motor Speed | 1800–3200 RPM ±10% |
|---|
| Radiator Dimensions | 394 × 140 × 32 mm |
|---|
| Radiator Material | Aluminum |
|---|
| Tube Material | Sleeved FEP |
|---|
| Tube Length | 200 mm |
|---|
| Fan Model | ROG RYUO IV MF-12C ARGB |
|---|
| Fan Quantity | 3 |
|---|
| Fan Dimensions | 120 × 120 × 25 mm |
|---|
| Fan Speed | 800–2650 RPM ±10% |
|---|
| Static Pressure | 5.45 mmH2O |
|---|
| Airflow | 71.44 CFM |
|---|
| Fan Noise | 39.6 dB(A) |
|---|
| Fan Control Mode | PWM / DC |
|---|
| Display | 6.67-inch AMOLED |
|---|
| Aura Sync Support | Yes |
|---|
| AMD Socket Support | AM5, AM4 |
|---|
| Intel Socket Support | LGA 1851, LGA 1700 |
|---|
| AIO Cooler Module Warranty | 6 years |
|---|
| Display Module Warranty | 2 years |
|---|
FAQs
What is the brand of the ROG Ryuo IV SLC 360 ARGB?
The manufacturer brand is ASUS, while ROG is the ASUS Republic of Gamers product family.
Which CPU sockets are supported?
The cooler supports AMD AM5 and AM4 sockets and Intel LGA 1851 and LGA 1700 sockets.
What size radiator does this cooler use?
The radiator measures 394 × 140 × 32 mm and uses three 120mm fans.
Does the cooler include an AMOLED display?
Yes. The ROG Ryuo IV SLC 360 ARGB includes a 6.67-inch AMOLED display for customized content and hardware information.
How many fans are included?
Three ROG RYUO IV MF-12C ARGB 120mm fans are included.
Does it support ASUS Aura Sync?
Yes. ASUS specifies Aura Sync support for the ROG Ryuo IV SLC 360 ARGB.
