Detailed Specifications

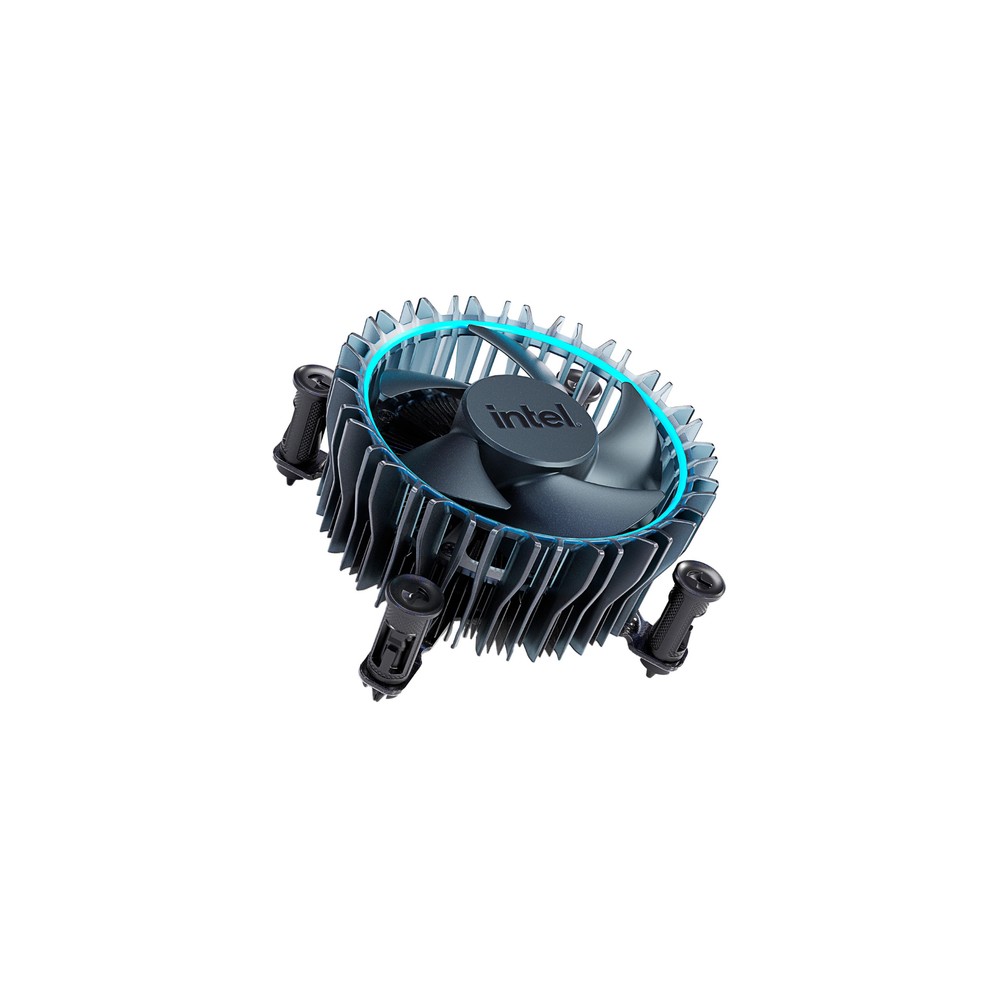

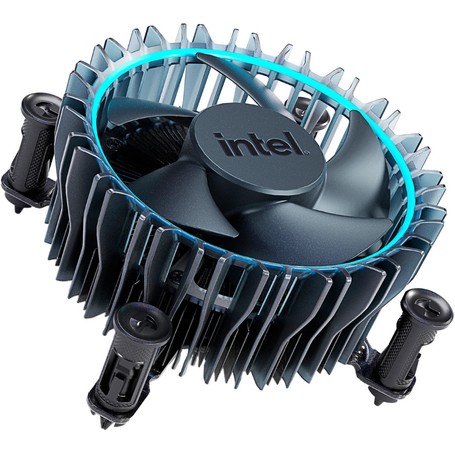

Intel BXTSRM1 CPU Cooling Solution
Overview :
The Intel BXTSRM1 is the Intel Laminar RM1 stock CPU air cooler designed for Intel desktop processors using the LGA1700 socket. It is typically bundled with select Intel Core i5 and Core i7 non-K processors and is intended for standard desktop thermal requirements in office PCs, entry-level workstations, and general-purpose computing systems.
This cooler is engineered for processors with moderate thermal design power and provides efficient air cooling using a single PWM-controlled fan. It supports dynamic fan speed control to balance thermal performance and acoustics during variable CPU workloads. The design uses an aluminum heatsink with copper contact elements for improved heat transfer from the processor to the cooling fins.
The Laminar RM1 is optimized for Intel mainstream desktop platforms and is not intended for high-overclocking or extreme performance CPUs. It is suitable for stock-frequency operation and standard workload environments such as productivity, browsing, and light content creation.
Key Features :
- Designed for Intel LGA1700 desktop processors
- PWM-controlled fan for dynamic cooling efficiency
- Aluminum heatsink with copper base contact design
- Quiet operation optimized for desktop environments
- Supports mainstream Intel CPU thermal loads up to 65W
Specifications :
| Specification | Details |
|---|
| Brand | Intel |
| Part Number | BXTSRM1 |
| Product Type | CPU Air Cooler |
| Cooler Type | Stock Air Cooler |
| Socket Support | LGA1700 |
| Fan Type | 1x PWM Fan |
| Fan Speed Range | 600 - 3150 RPM |
| Noise Level | Up to 29 dB |
| Heatsink Material | Aluminum + Copper base |
| Rated TDP Support | Up to 65W |
| Connector Type | 4-Pin PWM |
| Application | Desktop CPU cooling |
| Use Case | Stock Intel desktop systems |
