Detailed Specifications

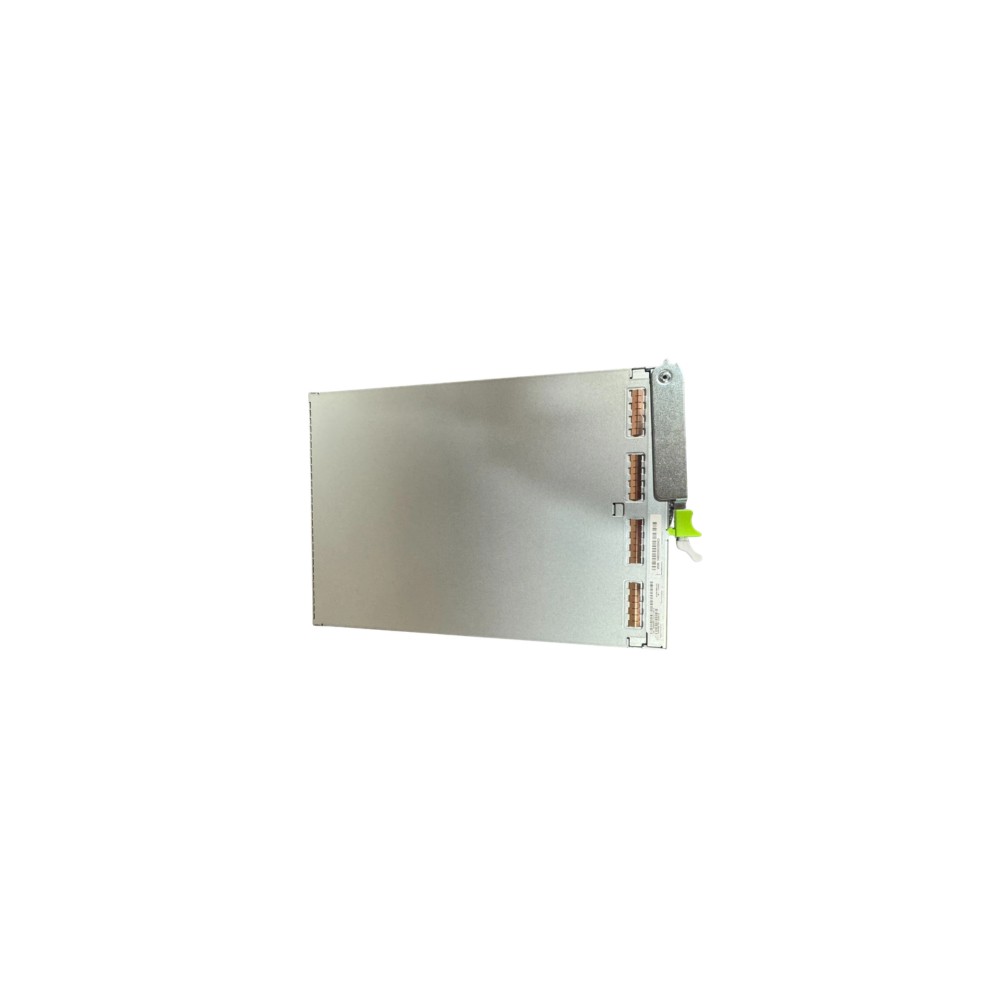

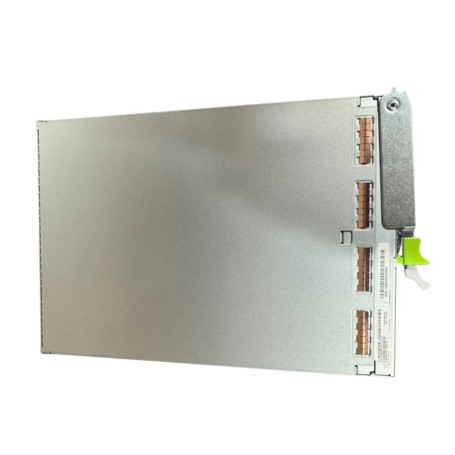

Oracle 8208432 - 12Gbps SAS-3 I/O Controller Module
Overview :
The Oracle 8208432 is an enterprise-grade 12Gb/s Serial Attached SCSI (SAS-3) I/O Controller Module (IOM). This component is a critical field-replaceable unit (FRU) designed for the Oracle Storage Drive Enclosure DE3-24 series, specifically the DE3-24C and DE3-24P models.
The primary function of this module is to provide the high-speed data path between the ZFS Storage Appliance controllers and the disk shelf's drive backplane. It manages SAS fabric connectivity, ensuring high availability through redundant IOM configurations (IOM 0 and IOM 1).
This module supports hot-swapping, allowing for maintenance and replacement without powering down the entire storage array. It is strictly compatible with Oracle DE3-24 disk shelves; it should not be attempted for use in legacy DE2 or other non-certified enclosures, as firmware and physical backplane signaling are platform-specific.
Key Features :
12Gb/s SAS-3 interface for high-bandwidth I/O operations
Redundant IOM design for high-availability storage paths
Field-replaceable unit (FRU) supports hot-plug maintenance
Dedicated management for Oracle DE3-24C and DE3-24P shelves
Integrated health and fault-monitoring LED indicators
Specifications :
| Specification | Value |
| Brand | Oracle |
| Part Number | 8208432 |
| Product Type | I/O Controller Module (IOM) |
| Interface | SAS-3 (12 Gb/s) |
| Compatibility | Oracle DE3-24C / DE3-24P |
| Form Factor | Modular / Hot-Swappable |
| Hot-Swappable | Yes |
| Redundancy | Supported (Dual Path) |
| Connectors | SAS External SFF-8644 |
| Indicators | Fault, Locate, Activity, Power |
| Enclosure Slot | Rear IOM Bay |
| Environmental | Standard Data Center Operating Range |
