Detailed Specifications

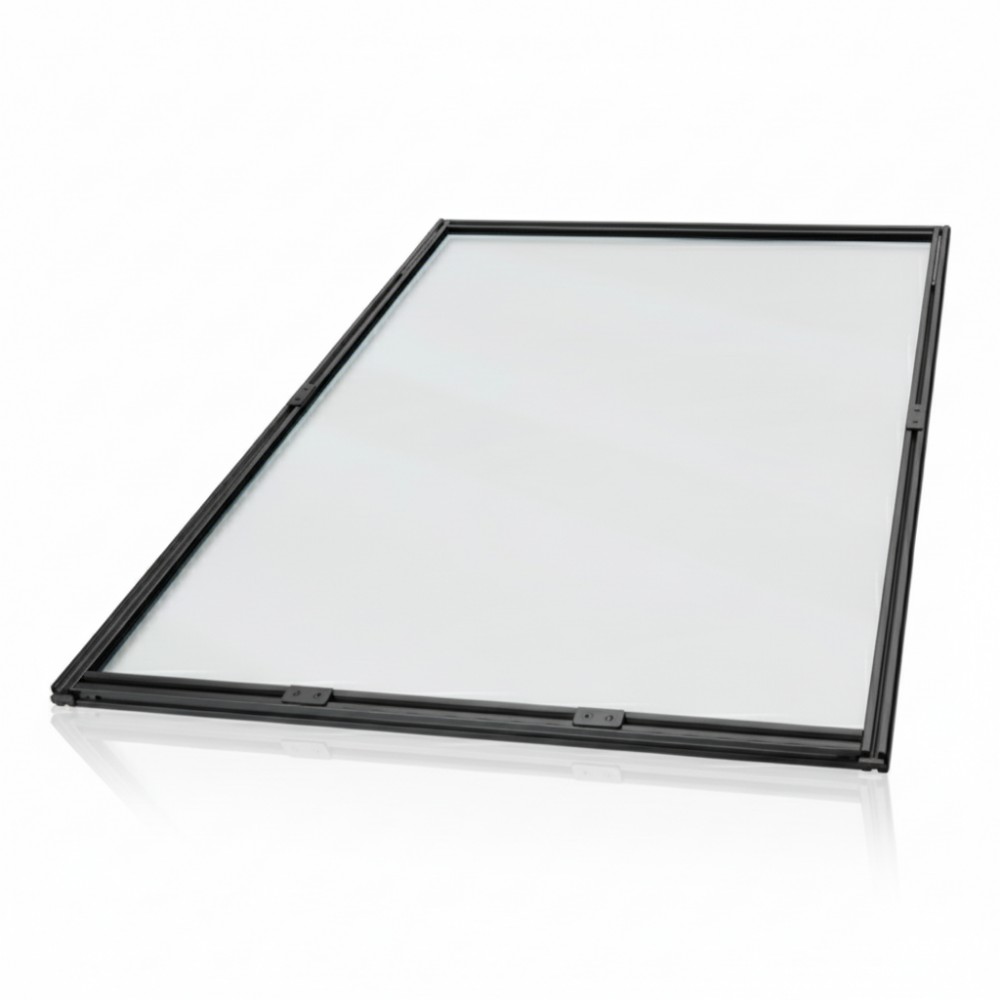

APC ACDC2306 - 1,012 mm V-0 Aisle Containment Duct Panel
Overview
The APC ACDC2306 is a duct panel component for the NetShelter / EcoAisle aisle-containment system. It's deployed to fill the side or top duct of a containment run, helping to guide airflow and maintain a sealed hot-/cold-aisle environment. The V-0 fire rating ensures that the panel meets stringent flame-resistance requirements, which is key in data centers with fire-safety standards.In practice, this panel is used in overhead or side containment ducts to ensure the thermal zone is enclosed and that leakage is minimized. It supports containment designs where proper ductwork is needed to sustain consistent airflow, especially for long rows or where containment intersects with structural features like walls or ceilings.
Key Features
1,012 mm (40 in) width: fits wide containment ducts or ceiling/side run panels.
Adjustable height: supports duct heights up to ~1,041 mm (41 in) for flexible design.
V-0 flame-retardant rating: helps with fire safety and compliance.
Rigid construction: ensures stability in containment ductwork.
RoHS / REACH compliant: built with environmentally responsible materials.
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC (Schneider Electric) |
| Part Number | ACDC2306 |
| Product Type | Aisle Containment Duct Panel |
| Key Spec × Width | 1,012 mm (40 in) |
| Key Spec × Maximum Height | ~1,041 mm (41 in) |
| Key Spec × Fire Rating | V-0 (flame-retardant) |
| Weight | ~6.06 kg |
| Management | Passive hardware |
| Power Requirements | None |
| Dimensions | Depth: ~1,071 mm (42.2 in |
| Operating Environment | Indoor, NetShelter / EcoAisle containment systems |
| Compliance | RoHS, REACH |
