Detailed Specifications

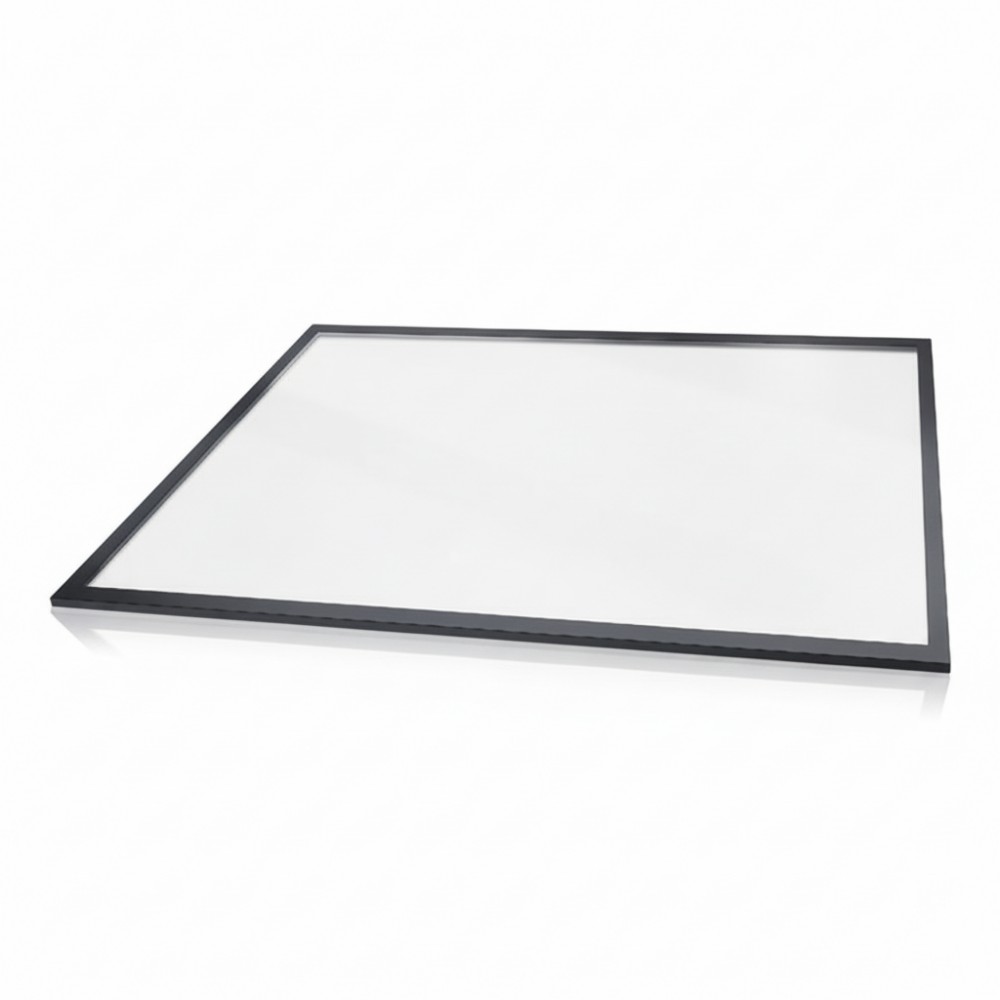

APC ACDC2107 - 1.8 m V-0 Ceiling Panel for Containment
Overview
The APC ACDC2107 is a 1,800 mm (72-inch) ceiling panel designed for use in NetShelter / EcoAisle aisle-containment systems. It carries a V-0 fire-rating, which makes it suitable for containment installations where fire safety is a concern. When installed on the overhead rails of a containment structure, it helps seal off the top of the aisle to prevent hot and cold air from mixing. This improves cooling predictability and system efficiency.In a real-world scenario, this panel is ideal for long containment spans × such as in row-level or room-level containment systems × reducing the number of seams and minimizing potential leakage points. Because it's part of the ACDC2100-2107 series, it integrates seamlessly with existing APC ceiling-rail infrastructure.
Key Features
1,800 mm (72 in) length: covers long aisle spans with fewer panels.
V-0 fire rating: helps prevent flame spread in overhead containment.
Slim profile (~12 mm thick): maintains a compact containment height.
Moderate weight (~3.54 kg): manageable by a single technician for installation.
RoHS / REACH compliant, backed by a 5-year APC warranty.
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC (Schneider Electric) |
| Part Number | ACDC2107 |
| Product Type | Aisle Containment Ceiling Panel |
| Key Spec × Panel Length | 1,800 mm / 72 in |
| Key Spec × Fire Rating | V-0 (flame retardant) |
| Key Spec × Thickness | ~12 mm (0.5 in) |
| Weight | ~3.54 kg / 7.80 lb |
| Management | Passive (no electronics) |
| Power Requirements | None |
| Dimensions (W × Depth) | ~600 mm (23.6 in) × ~1,606 mm (63.2 in) |
| Operating Environment | Data center, NetShelter / EcoAisle containment |
| Compliance | RoHS, REACH |
| Warranty | 5 years |
