Detailed Specifications

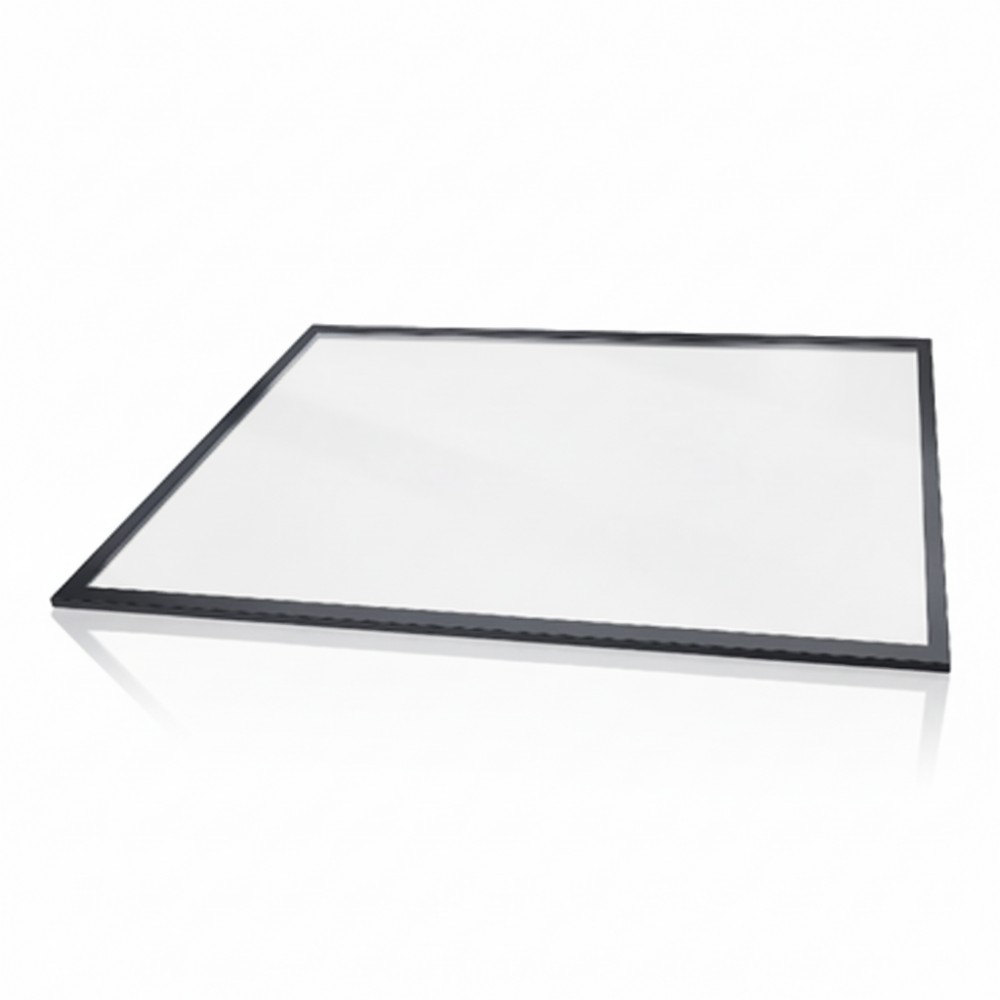

APC ACDC2105 1 5 m V 0 Ceiling Panel
Overview
The APC ACDC2105 is a 1,500 mm-long ceiling-panel used in NetShelter / EcoAisle aisle-containment systems. With a V-0 fire-rating, it helps improve the fire resistance of the ceiling structure while sealing off the top of the aisle. This prevents hot and cold air mixing from above, which is important for maintaining efficient thermal zones in the data center.In deployment, it's placed on ceiling-panel mounting rails as part of a row-level containment build. It's especially suited for containment runs that benefit from longer panel spans, reducing the number of seams and installation time.
Key Features
1,500 mm (60 in) length: covers long overhead spans.
V-0 fire-rated: reduces flame propagation risk in containment ceilings.
Low profile (≈ 12 mm): keeps containment height efficient.
Reasonable weight (~2.9 kg): manageable for installation.
RoHS / REACH compliant, backed by a 5-year APC warranty.
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC (Schneider Electric) |
| Part Number | ACDC2105 |
| Product Type | Aisle Containment Ceiling Panel |
| Key Spec × Panel Length | 1,500 mm / 60 in |
| Key Spec × Fire Rating | V-0 (fire-rated) |
| Key Spec × Thickness | 12 mm (~0.5 in) |
| Weight | ~2.90 kg (6.39 lb) |
| Management | Passive (no electronics) |
| Power Requirements | None |
| Dimensions (Width × Depth) | ~600 mm (23.6 in) × ~1,303 mm (51.3 in) |
| Operating Environment | Indoor, NetShelter / EcoAisle containment systems |
| Compliance | RoHS, REACH |
