APC ACDC2104 1500 mm Ceiling Panel for Containment View larger

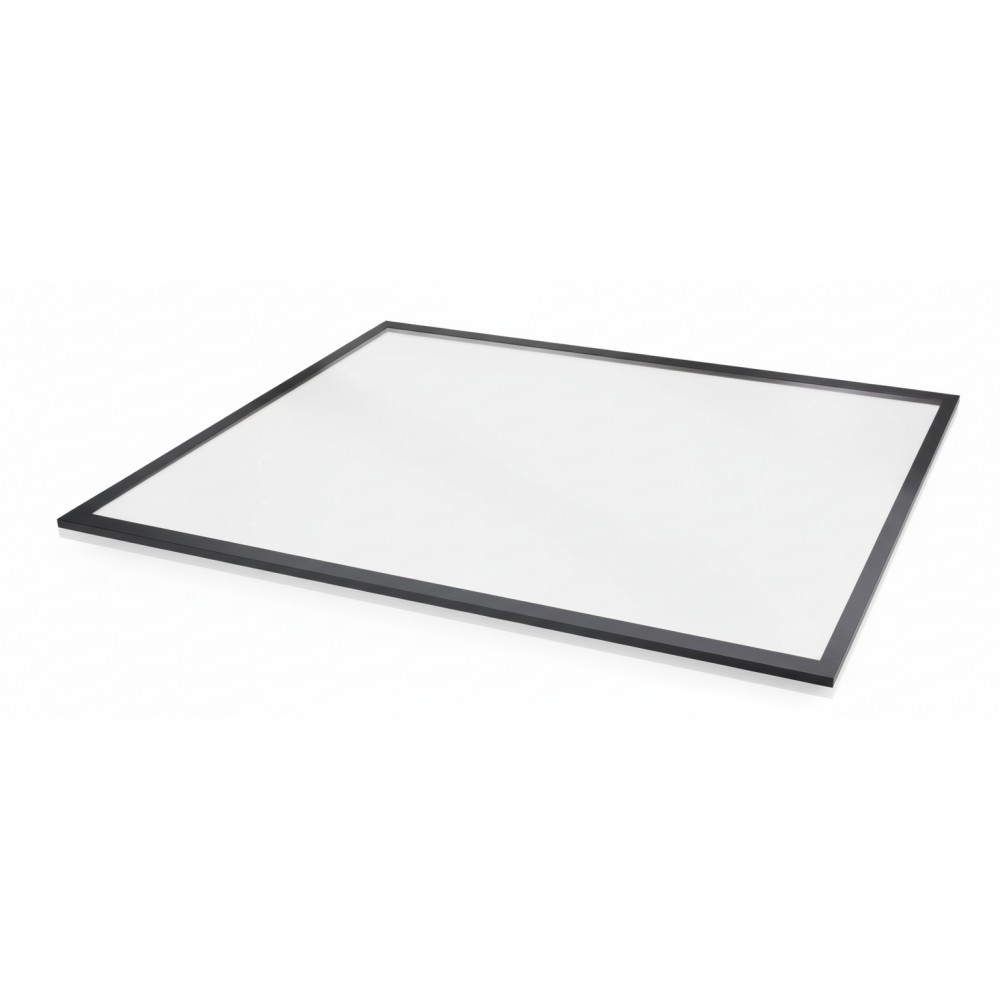

APC ACDC2104 1500 mm Ceiling Panel for Containment

ACDC2104

New

APC ACDC2104 is a 1.5 m (60 in) ceiling tile for NetShelter
×




Detailed Specifications

APC ACDC2104 1500 mm Ceiling Panel for Containment

Overview

The APC ACDC2104 is a 1500 mm-long ceiling panel module designed for NetShelter / EcoAisle aisle‑containment systems. It’s used to close off overhead containment runs, forming a continuous roof over long aisles. This helps prevent hot‑aisle and cold‑aisle air mixing, improving thermal predictability and cooling efficiency in data centers.In real-world deployments, this panel is especially useful for long rows where smaller panels would increase installation time or result in more seams. It integrates with APC’s containment ceiling structural rails and other ceiling tiles, enabling scalable and modular containment builds.

Key Features

  • 1500 mm (60 in) length: covers more span per panel, reducing the number of joints.

  • Low profile (12 mm): maintains a slim containment structure.

  • Lightweight (~1.75 kg): easy to handle for installation and maintenance.

  • RoHS / REACH compliant: built with environmentally responsible materials.

  • 5-year APC warranty: reliable support for containment infrastructure.

Technical Specifications

SpecificationDetail
Brand APC (Schneider Electric)
Part Number ACDC2104
Product Type Aisle Containment Ceiling Panel
Key Spec — Panel Length 1,500 mm (60 in)
Key Spec — Thickness 12 mm / 0.5 i
Key Spec — Weight ~1.75 kg / 3.86 lb
Management Passive (no electronics)
Power Requirements None
Dimensions (W × Depth) Width ~600 mm (23.6 in), Depth ~1303 mm (51.3 in)
Operating Environment Indoor, NetShelter / EcoAisle containment systems
Compliance RoHS, REACH
