Detailed Specifications

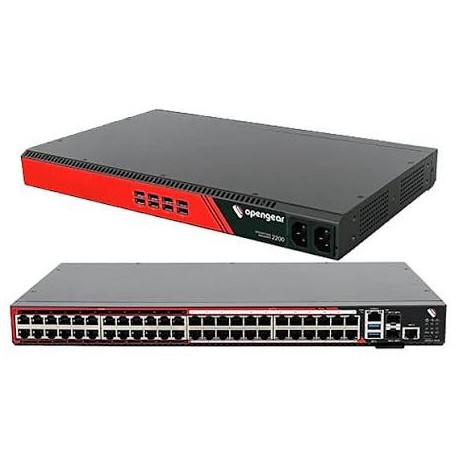

Opengear OM2224-24E-DDC-L - Console Server
Overview:
The Opengear OM2224-24E-DDC-L is a NetOps console server from the OM2200 series, combining a 24-port console server with a 24-port Gigabit Ethernet switch in a single 1U appliance . It is designed for secure out-of-band (OOB) management and network automation in data centers and high-density colocation facilities .
Network engineers and data center operations teams use this appliance to maintain a separate, secure management plane for critical infrastructure during primary network outages . Technical capabilities include a 1.4 GHz quad-core AMD GX-412TC processor, 8 GB of DDR3 RAM, and a 64 GB SSD, supporting advanced automation via Docker, Python, and Zero-Touch Provisioning . The "-L" suffix designates the integrated global LTE-A modem for cellular failover, while "-DDC" indicates dual DC power inputs .
Deployment is in a 1U rack-mountable form factor with dual hot-swappable power supplies. Security features include TPM 2.0, secure boot, embedded firewall, and IPSec/OpenVPN VPN support . This unit is specifically for data center environments requiring DC power and LTE failover. It is not suitable for AC-only facilities or deployments not needing integrated switching and cellular connectivity.
Key Features:
24 software-selectable RJ45 RS-232 console ports
Integrated 24-port Gigabit Ethernet switch
Global LTE-A (CAT12) cellular failover
Dual DC power inputs for resilient operations
x86 platform with Docker and Python support
Specifications:
| Specification | Value |
|---|
| Brand | Opengear |
| Part Number | OM2224-24E-DDC-L |
| Product Type | Console Server / Infrastructure Management Equipment |
| Serial Ports | 24 x RJ45 RS-232 (software-selectable) |
| Ethernet Switch | 24 x 10/100/1000 RJ45 ports |
| Uplink Ports | 2 x 1GbE SFP (combo) |
| Processor | AMD GX-412TC, 1.4 GHz Quad-Core |
| Memory | 8 GB DDR3 SDRAM |
| Storage | 64 GB SSD (M.2 SATA) |
| Cellular | Global LTE-A (CAT12), Sierra Wireless |
| SIM Slots | 2 (total) |
| USB Ports | 2 x USB 3.0, 8 x USB 2.0 |
| Power Input | Dual DC: -40V to -72V DC |
| Power Supplies | 2 (redundant) |
| Form Factor | 1U Rack-mountable |
| Security | TPM 2.0, Secure Boot, Firewall, OpenVPN, AAA |
| Automation | Docker, Python, Perl, Bash, ZTP |
| MTBF | 100,000 hours |
| Warranty | 4-year limited hardware |
