Detailed Specifications

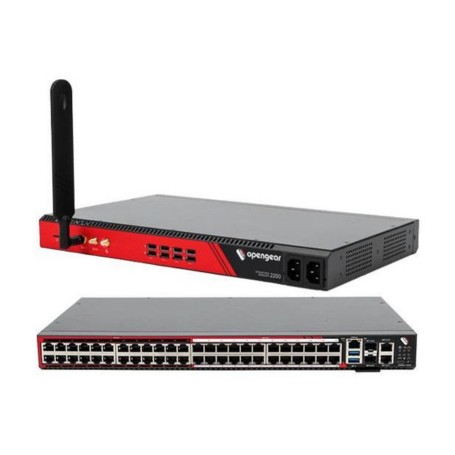

Opengear OM2224-24E-L Console Server
Overview :
The Opengear OM2224-24E-L is a 1U rack-mounted console server designed for secure out-of-band (OOB) infrastructure management in enterprise networks, data centers, and edge deployments. It combines 24 software-selectable serial console ports with a managed 24-port Gigabit Ethernet switch, enabling centralized management of network, server, and security infrastructure.
Powered by a 1.4 GHz quad-core x86 processor with 8 GB RAM and 64 GB internal storage, the appliance supports Docker containers, TPM 2.0, Smart OOB', and Python-based automation. The integrated Global 4G LTE modem provides resilient remote access during primary network outages, making it suitable for business continuity and remote operations.
The OM2224-24E-L is intended for rack-mounted deployments requiring secure remote console access, Ethernet management, and automated infrastructure recovery. It is compatible with environments using Opengear Lighthouse and Smart OOB management. It should not be selected where native 10GbE uplinks are required, as the 10GbE capability is available only on the OM2224-24E-10G variants.
Key Features :
- 24 selectable RS-232 console management ports
- Integrated 24-port managed Gigabit Ethernet switch
- Global 4G LTE enables resilient remote access
- Docker and TPM 2.0 support secure automation
- Dual AC power inputs improve service availability
Specifications :
| Specification | Value |
|---|
| Brand | Opengear |
| Part Number | OM2224-24E-L |
| Product Type | Rackmount Console Server |
| Form Factor | 1U Rackmount |
| Processor | 1.4 GHz Quad-Core x86 |
| Memory | 8 GB DDR3 RAM |
| Internal Storage | 64 GB SSD |
| Serial Ports | 24 RJ45 software-selectable RS-232 |
| Ethernet Switch | 24 × 10/100/1000Base-T managed ports |
| Network Interfaces | 2 × 1GbE RJ45/SFP auto-media ports |
| USB Ports | 2 × USB 3.0, 8 × USB 2.0 |
| Cellular Connectivity | Global 4G LTE |
| Power Input | Dual 100-240 VAC, 50/60 Hz |
| Security Features | TPM 2.0, Smart OOB, Docker support |
| Compatibility | Opengear Lighthouse Management Platform |
