Detailed Specifications

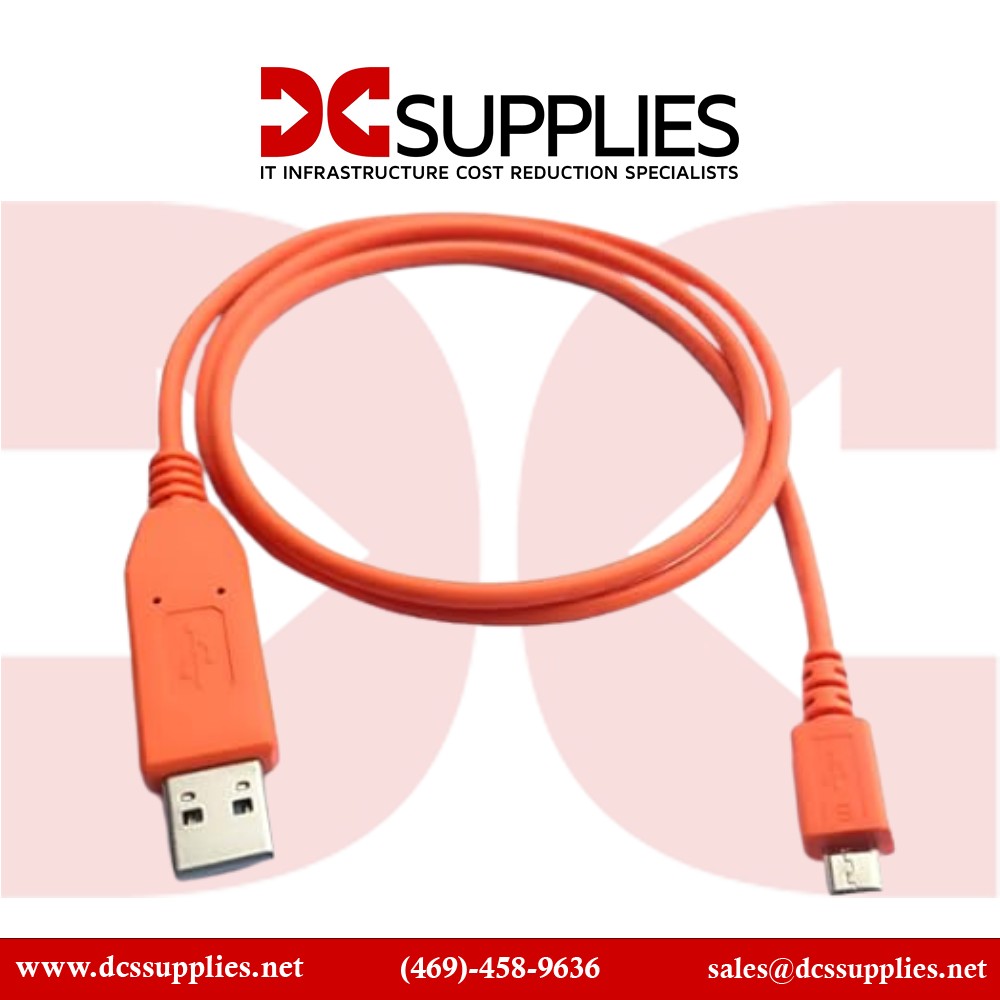

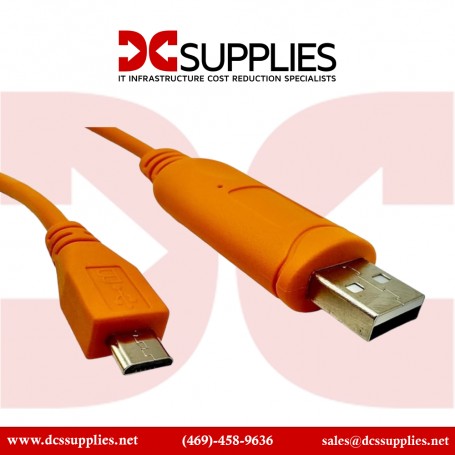

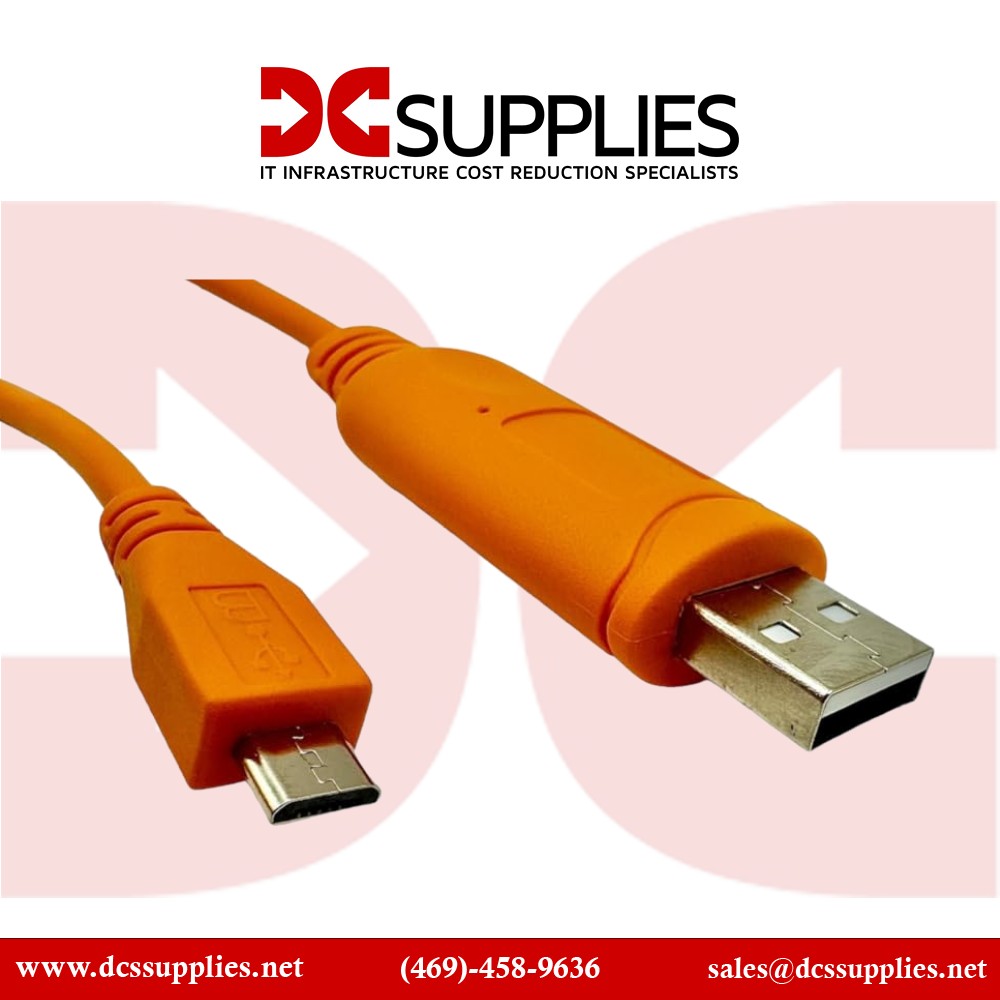

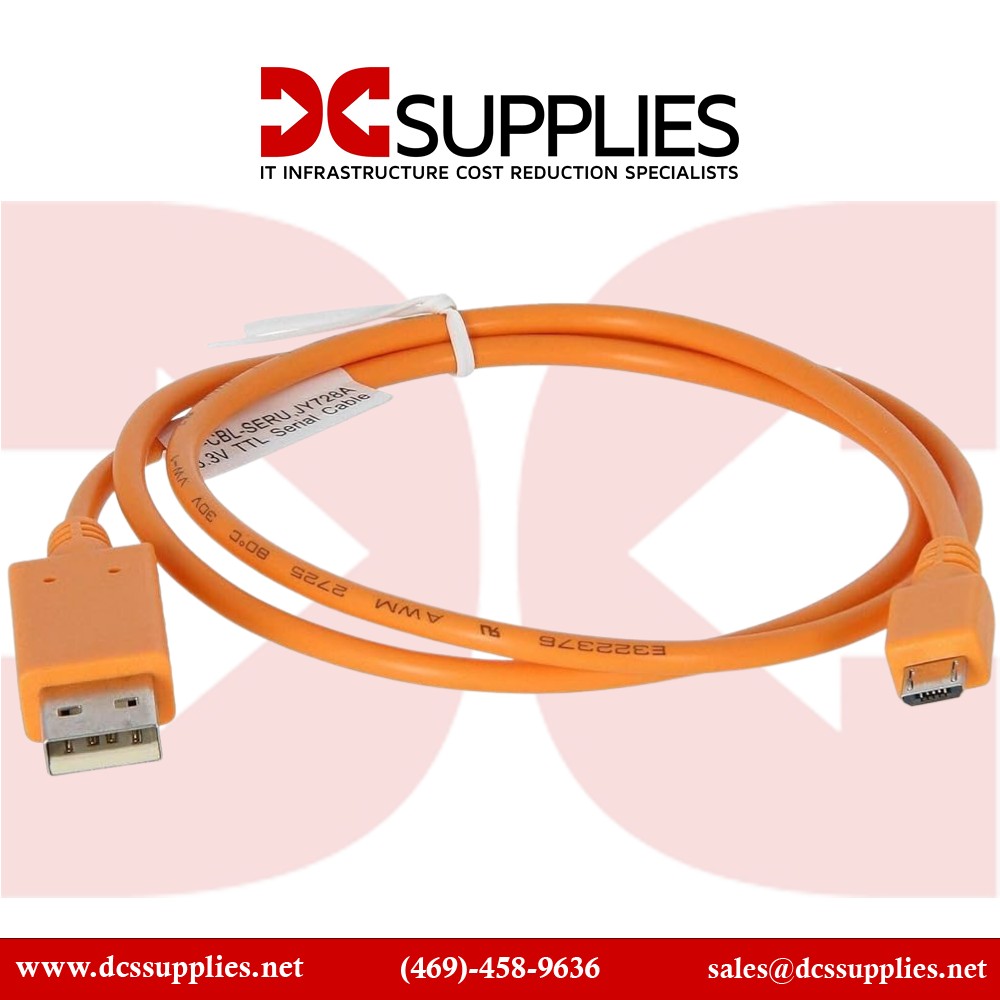

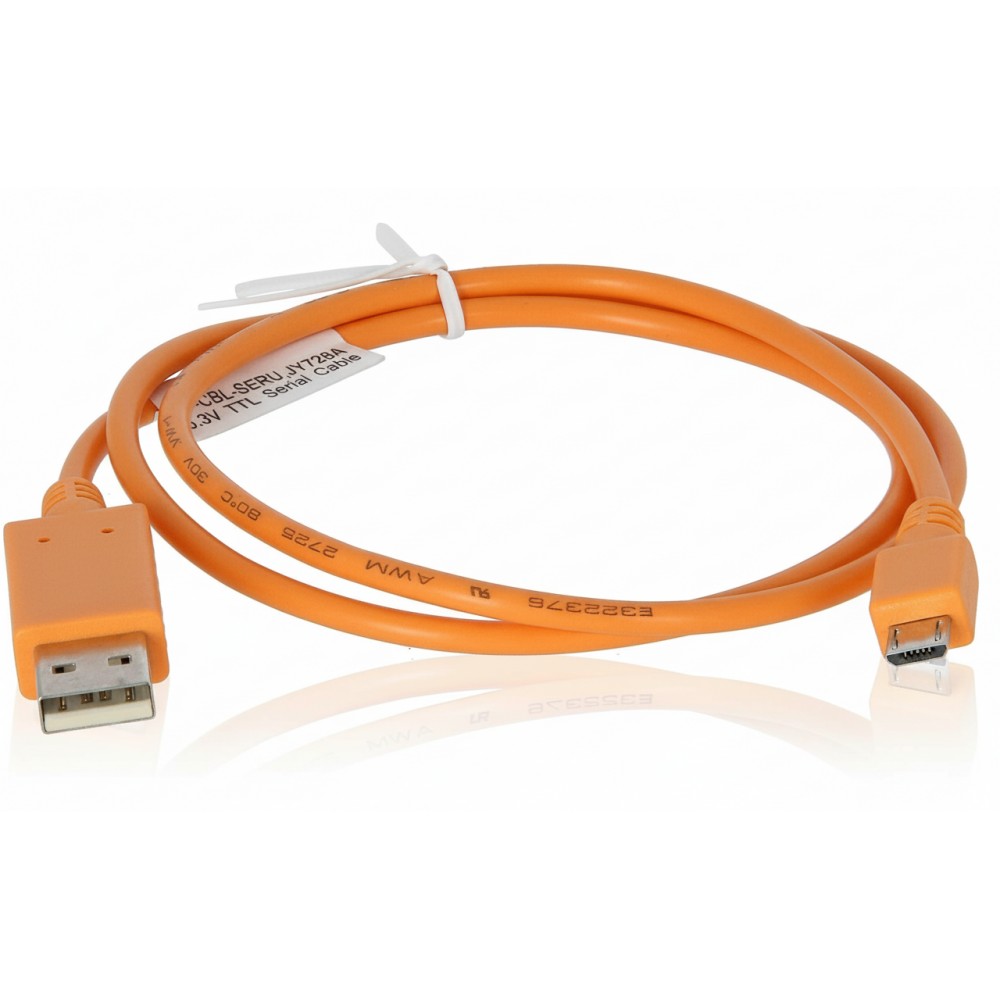

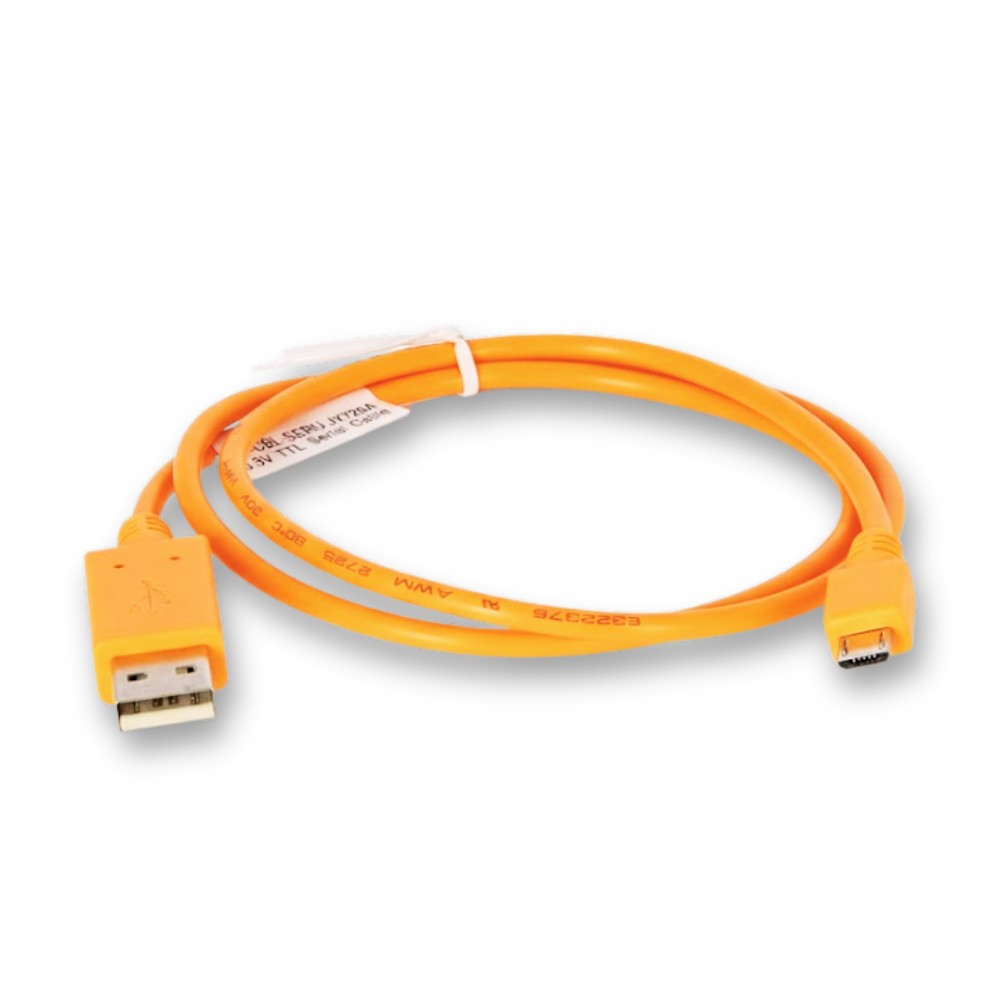

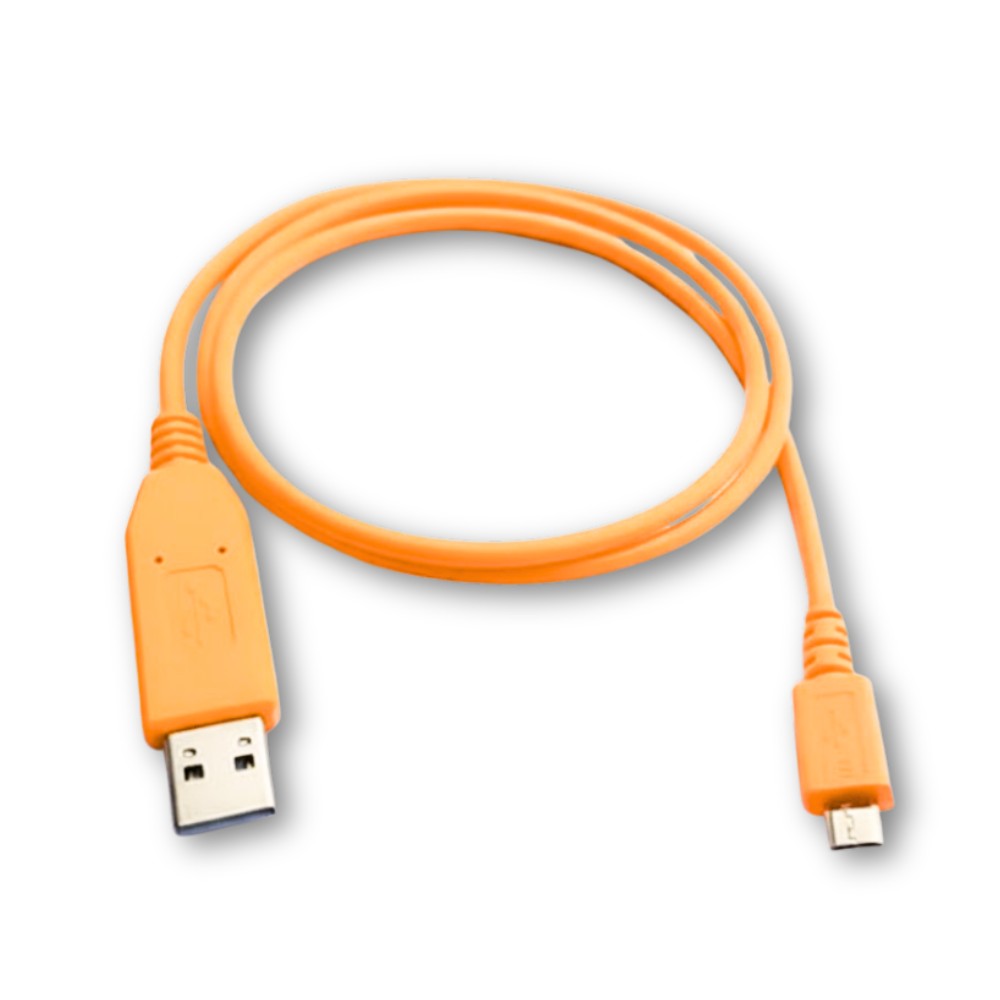

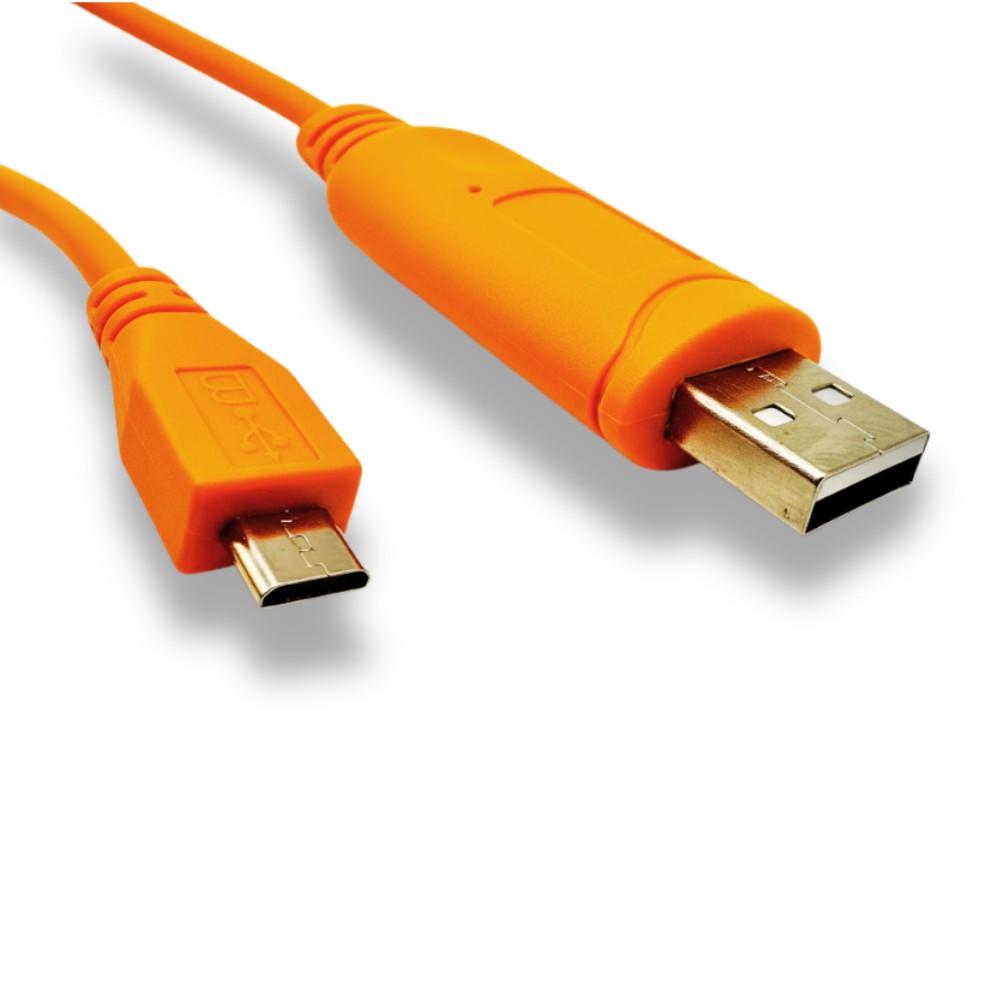

HPE Aruba JY728A Micro-USB Console Adapter Cable
Overview :
The HPE Aruba JY728A is a console adapter cable used by network engineers to establish a serial console connection from USB hosts to Aruba access points or networking devices. It converts USB Type-A (host) to a 3.3 V TTL-level micro-USB interface, enabling CLI access to devices without built-in serial ports. This cable is commonly used during initial device provisioning, firmware recovery, or troubleshooting sessions. It is typically used in branch, campus, or edge deployments wherever Aruba APs or controllers require direct low-level access. The cable is compatible with Aruba AP models such as AP-203, AP-303, AP-515, and similar devices, enabling console access with terminal software at standard serial parameters. It is plug-and-play on many host systems with supported UART drivers, offering the engineer a reliable and minimal path to device configuration, debugging, or recovery when network access is unavailable.
Key Features :
USB-A to TTL micro-USB console interface
3.3 V TTL signaling
Designed for Aruba AP and controller access
Plug-and-play driver support
Compact, low-profile form
Supports standard serial CLI access
Technical Specifications :
| Specification | Value |
|---|
| Brand | HPE Aruba |
| Part Number | JY728A |
| Product Type | USB to TTL Console Adapter Cable |
| Host Interface | USB Type-A (male) |
| Device Interface | Micro-USB (TTL 3.3 V) |
| Signaling Level | TTL 3.3 V |
| Cable Length | ~1.8 m (typical) |
| Driver Support | FTDI or vendor-supported UART drivers |
| Compatible Devices | Aruba AP-203, AP-303, AP-515, etc. |
| Use Case | Console access, provisioning, recovery |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | -20 °C to 85 °C |
| Weight | ~30 g (approx) |
| Connector Durability | Standard USB/micro-USB rated cycles |
| Warranty | Standard HPE accessory warranty |
