Overview

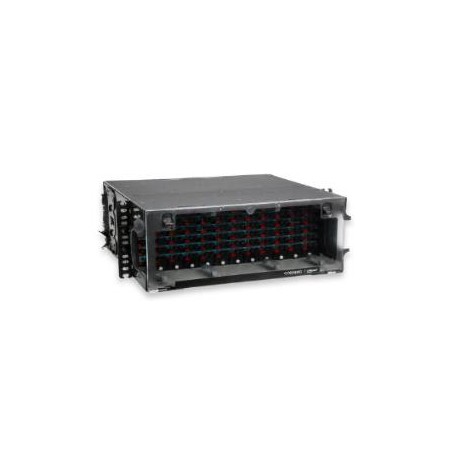

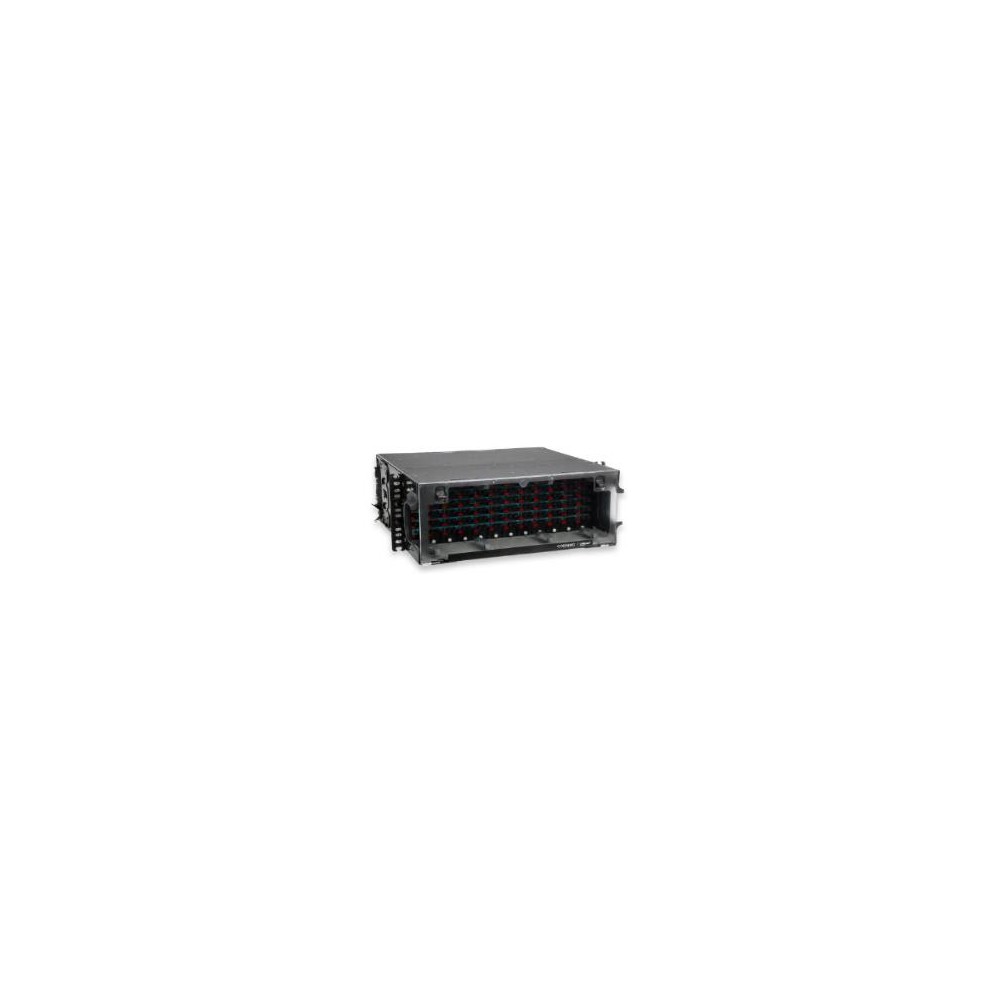

The Corning CCH-04U Closet Connector Housing is a 4U rack-mount fiber-optic enclosure designed for enterprise networks, telecommunications infrastructure, and data center installations. It accommodates up to 12 compatible CCH connector panels, cassettes, or modules, providing a centralized solution for fiber termination, interconnection, cross-connection, and splice management.
The enclosure features a removable front door, removable rear enclosure, and front and rear access for installation, inspection, testing, and maintenance. Its modular design helps network technicians organize fiber connections and manage future network changes efficiently.
Key Features
- 4U rack-mount fiber-optic connector housing.
- Accommodates up to 12 compatible CCH panels, cassettes, or modules.
- Supports up to 288 fibers, depending on installed components and configuration.
- Designed for fiber termination, interconnection, and cross-connection applications.
- Front and rear access for installation and maintenance.
- Removable front door and rear enclosure for service access.
- Lockable enclosure with available locking configurations.
- Compatible with standard 19-inch racks and optional 23-inch racks.
- Includes 12 blank panels, mounting hardware, strain-relief brackets, and label cards according to the manufacturer's package contents.
- Supports compatible CCH pigtailed splice cassettes for fiber splicing applications.
- Suitable for indoor carrier networks, enterprise networks, and data centers.
Specifications
| Specification | Details |
|---|
| Brand Name | Corning CCH-04U |
| Manufacturer | Corning |
| Model | CCH-04U |
| MPN | CCH-04U |
| Product Type | Fiber-Optic Connector Housing |
| Product Family | Closet Connector Housing (CCH) |
| Rack Height | 4U |
| Mounting Type | Rack-mount / Cabinet-mount |
| Rack Compatibility | 19-inch rack; optional 23-inch rack |
| Panel Capacity | Up to 12 CCH panels, cassettes, or modules |
| Fiber Capacity | Up to 288 fibers, depending on configuration |
| Access Type | Front and rear access |
| Enclosure | Removable front and rear sections |
| Lockable | Yes |
| Housing Color | Black |
| Operating Environment | Indoor |
| Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Product Dimensions (H × W × D) | 178 × 483 × 433 mm |
| Shipping Dimensions (H × W × D) | 257 × 532 × 513 mm |
| Net Weight | Not verified |
| Shipping Weight | 7.5 kg (approximately 16.53 lbs), according to the current product listing |
| Package Contents | Housing, 12 blank panels, mounting screws, internal and external strain-relief brackets, and label cards |
| Compliance | RoHS; manufacturer lists applicable telecommunications standards and UL listing |
Compatibility and Installation
The Corning CCH-04U is designed for compatible CCH panels, cassettes, and modules. Select the appropriate fiber type, connector adapters, splice components, and port configuration for your network installation. Maximum fiber capacity depends on the selected internal components.
Install the enclosure in a compatible 19-inch rack or use the appropriate optional mounting arrangement for a 23-inch rack. Allow adequate clearance for front and rear access, fiber routing, strain relief, and maintenance. Follow Corning's installation instructions and applicable fiber-optic safety procedures.
DC Supplies Product Note
DC Supplies provides product information to help customers choose compatible networking and fiber-optic infrastructure components. Confirm availability, exact model configuration, included accessories, and warranty terms with DC Supplies before ordering.
Frequently Asked Questions
What is the Corning CCH-04U?
It is a 4U Closet Connector Housing used to organize and protect fiber-optic connections in telecommunications rooms, enterprise networks, and data centers.
How many fiber panels can it accommodate?
The housing supports up to 12 compatible CCH panels, cassettes, or modules.
What is the maximum fiber capacity?
The published maximum is up to 288 fibers, depending on the installed panels and configuration.
Which rack sizes are supported?
It is designed for 19-inch racks, with an optional mounting configuration for 23-inch equipment racks.
Does the housing include fiber panels?
The manufacturer's listed package contents include 12 blank panels and installation hardware. Fiber adapters, populated connector panels, and other connection components should be confirmed against the exact order configuration.
Where can I find official specifications?
Visit the official Corning CCH-04U product page for specifications, documentation, and ordering information.
