Overview

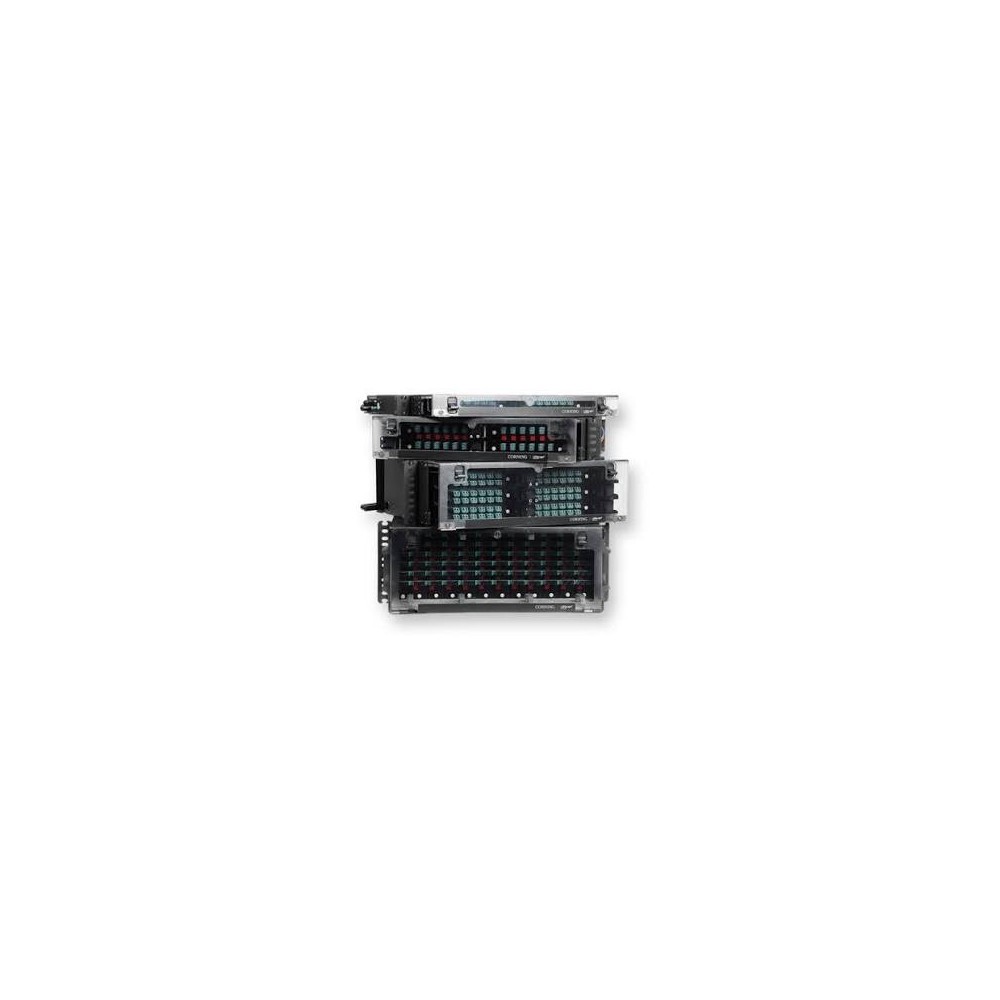

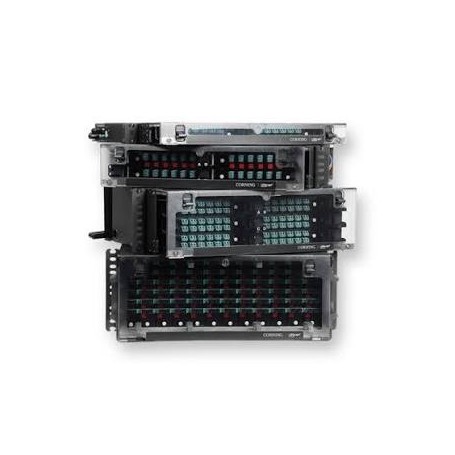

The Corning CCH-02U Closet Connector Housing is a 2U rack-mount fiber-optic enclosure designed for enterprise networks, carrier networks, and data center infrastructure. It provides space for up to four compatible CCH connector panels, cassettes, or modules, supporting fiber interconnection, cross-connection, and termination applications. Its sliding tray design and front and rear access help technicians install, inspect, test, and maintain fiber connections.
Key Features
- 2U rack-mount fiber-optic enclosure.
- Accommodates up to four CCH panels, cassettes, or modules.
- Supports fiber interconnect and cross-connect applications.
- Sliding access from the front and rear for installation and maintenance.
- Lockable enclosure for controlled access.
- Compatible with standard 19-inch racks and optional 23-inch racks.
- Removable translucent top cover for convenient access.
- Includes four blank panels, mounting hardware, strain-relief brackets, and label cards according to the manufacturer's ordering information.
- Designed for indoor telecommunications, enterprise, and data center installations.
- Operating temperature range of -40°C to 70°C according to the manufacturer.
Specifications
| Specification | Details |
|---|
| Brand Name | Corning CCH-02U |
| Manufacturer | Corning |
| Model | CCH-02U |
| MPN | CCH-02U |
| Product Type | Fiber-Optic Connector Housing |
| Product Family | Closet Connector Housing (CCH) |
| Rack Height | 2U |
| Mounting Type | Rack-mount or cabinet-mount |
| Rack Compatibility | 19-inch rack; optional 23-inch rack configuration |
| Panel Capacity | Up to 4 CCH panels, cassettes, or modules |
| Fiber Capacity | Up to 96 fibers, depending on installed panels and configuration |
| Access Type | Sliding access, front and rear |
| Lockable | Yes |
| Color | Black |
| Installation Environment | Indoor |
| Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Dimensions (H × W × D) | 91.5 × 496.5 × 433 mm |
| Shipping Dimensions (H × W × D) | 167 × 530 × 511 mm |
| Net Weight | Not verified |
| Shipping Weight | 6.45 kg (14.22 lbs) |
| Compliance | RoHS; manufacturer-listed standards and approvals include ANSI/TIA/EIA-568A and 606, Telcordia GR-63-CORE testing, and UL listing |
Compatibility and Installation
The CCH-02U is designed for compatible Corning CCH fiber-optic panels, cassettes, and modules. Verify connector type, fiber type, adapter configuration, and required port capacity before ordering the internal components.
Install the housing in a compatible 19-inch rack or use the appropriate optional mounting configuration for a 23-inch rack. Allow sufficient space for the sliding tray, cable routing, strain relief, and rear access. Follow the manufacturer's installation instructions and applicable fiber-optic handling practices.
DC Supplies Product Note
DC Supplies provides product information to help customers select compatible networking and fiber-optic infrastructure components. Confirm availability, included accessories, exact regional configuration, and warranty terms with DC Supplies before ordering.
Frequently Asked Questions
What is the Corning CCH-02U?
It is a 2U Closet Connector Housing designed to organize and protect fiber-optic connections in rack-mounted network installations.
How many panels can it hold?
The enclosure accommodates up to four compatible CCH panels, cassettes, or modules. Actual fiber capacity depends on the selected components.
Which racks are supported?
The standard configuration supports 19-inch racks, with an optional mounting arrangement for 23-inch racks.
Does the enclosure provide front and rear access?
Yes. Its sliding-access design supports installation, inspection, testing, and maintenance from the front and rear.
Is the CCH-02U suitable for data centers?
Yes. The manufacturer identifies data centers, enterprise networks, and carrier networks among its intended applications.
Where can I find official specifications?
Refer to the official Corning CCH-02U product page for technical details and ordering information.
