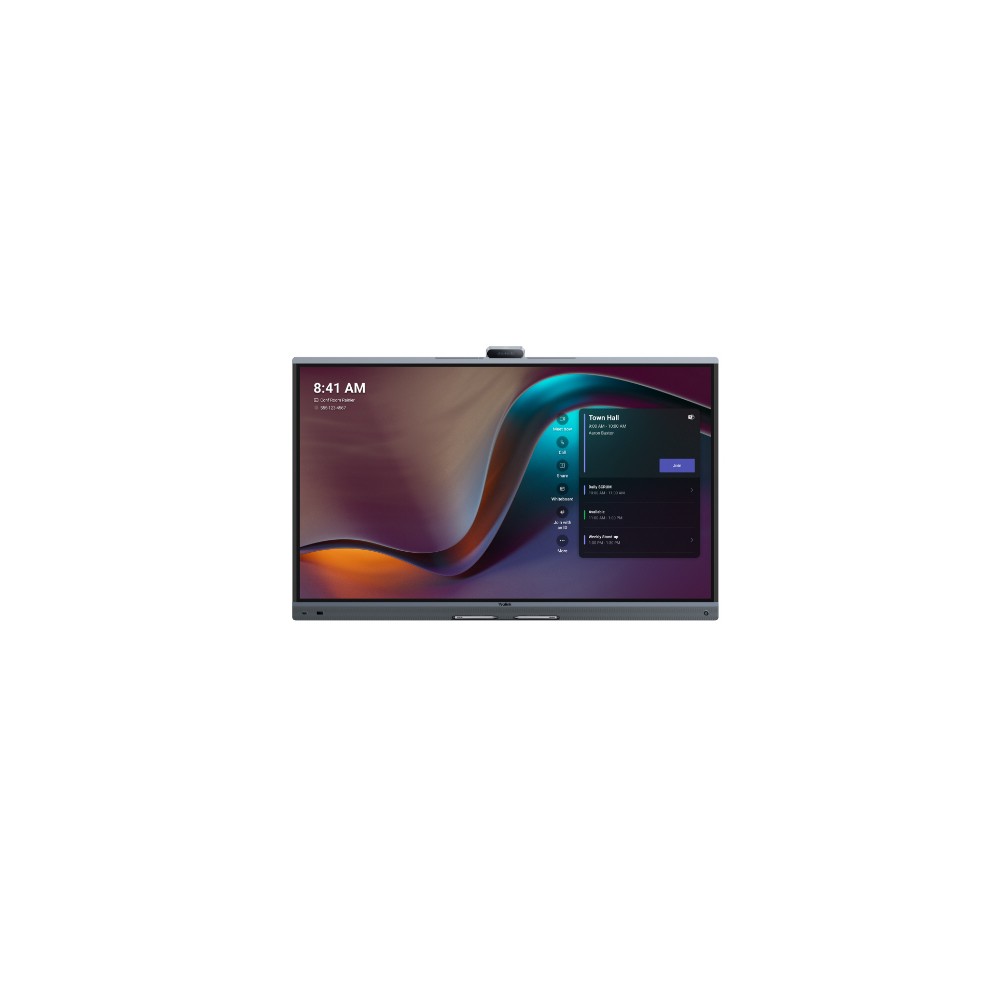

yealink 1203703 – Interactive Collaboration Display

Overview

The yealink 1203703 (MeetingBoard 86 Pro) is an all-in-one enterprise collaborative endpoint engineered for large-scale video conferencing, interactive whiteboarding, and unified communications. Designed for medium to large boardrooms, executive suites, and corporate training rooms, this integrated hardware platform eliminates the management and cabling complexities of multi-device AV setups. The system unifies a commercial-grade 4K touchscreen display, an advanced multi-lens camera system, a beamforming microphone matrix, and full spatial audio into a single chassis.

Operating on a native Android 13 architecture with MDEP enterprise security, the 86-inch flat panel utilizes direct-lit LED technology coupled with a high-precision infrared touch matrix supporting 20 simultaneous touchpoints. For visual communications, the hardware features an integrated triple-eye 50MP camera array optimized by a dedicated AI video processor. This sub-system supports automatic framing, speaker tracking, Video Fence containment, and IntelliFocus, which frames active speakers while presenting a panoramic layout of the physical room. An integrated physical privacy shutter automates lens obstruction when sessions terminate.

Acoustic capture is managed via an integrated 16-element MEMS microphone array running AI-driven signal processing algorithms that isolate human voice profiles over a 12-meter (39-foot) full-duplex range. Acoustic echo cancellation, dynamic automatic gain control, and reverberation suppression drop out room reflections and structural noises such as HVAC rumble or seating adjustments. Audio playback is delivered via an integrated 2.1-channel sound system comprising four mid-range directional speakers and two dedicated high-frequency tweeters, providing 36W of combined output power.

The system incorporates an Open Pluggable Specification (OPS) slot, allowing seamless compute expansion to an optional Windows-based environment alongside its native Android operation. For local integration, the display hosts dual Gigabit Ethernet lines, dual-band Wi-Fi 6, and Bluetooth 5.1 alongside multiple HDMI and USB structural inputs. Mount the unit directly to structural walls via a heavy-duty 800 x 600 mm VESA assembly or deploy it on an optional commercial wheeled floor stand. Do not deploy this heavy-format display without verified structural wall reinforcement or unrated mobile framing.

Key Features

• 86-inch 4K UHD anti-glare touch display supports 20-point IR input.

• Triple-eye 50MP AI camera array executes precise multi-focal tracking.

• 16-mic MEMS array delivers full-duplex voice capture up to 12 meters.

• 36W 2.1 channel speaker system guarantees localized spatial clarity.

• Native Android 13 operating system features an integrated OPS compute slot.
