Detailed Specifications

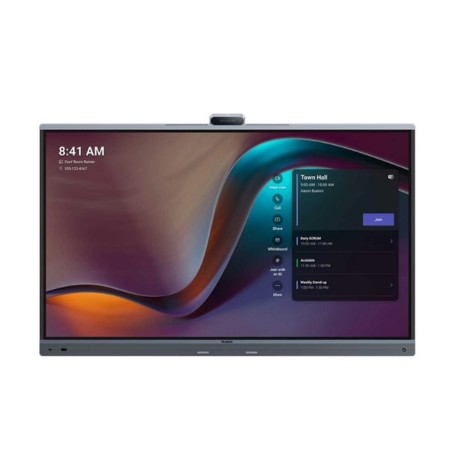

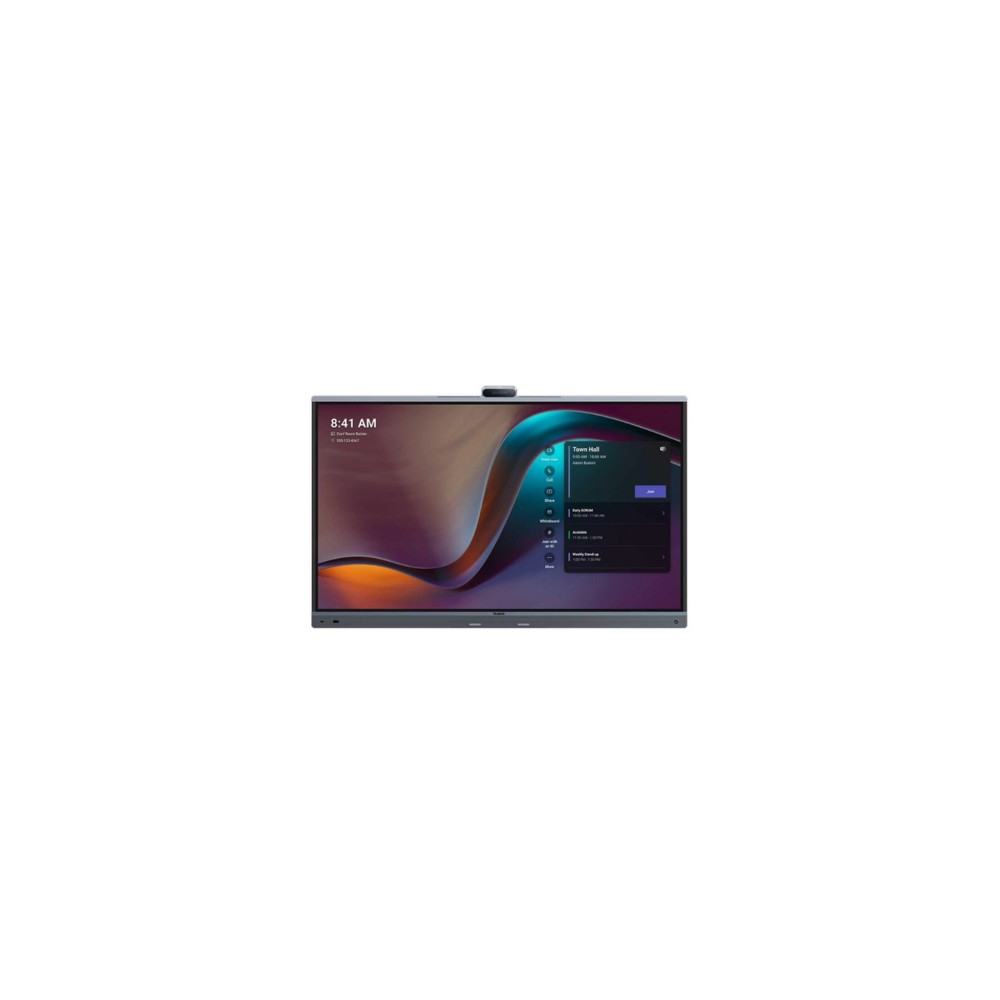

YEALINK 1203701 Video Collaboration Display
Overview :
The Yealink 1203701 (MB65PRO) is an enterprise-grade, all-in-one 65-inch 4K touchscreen collaboration display designed for small-to-medium conference rooms and executive offices.This intelligent endpoint consolidates ultra-HD video conferencing, wireless content sharing, and an interactive electronic whiteboard into a single deployment.IT and procurement teams utilize this system to replace complicated multi-component setups, eliminating discrete external cameras, microphones, and computing boxes.
Technically, the terminal features a specialized Triple-eye 3x50MP camera system paired with AI vision features including IntelliFocus and Video Fence to isolate background visual distractions.Processing runs on a dual quad-core architecture with 8GB of RAM and 64GB of storage running Android 13. The audio subsystem is built around a 16-element beamforming microphone array providing a 39-foot (12-meter) full-duplex pickup radius, backed by 36W of RMS speaker output power and advanced acoustic reverberation suppression.
Deployment targets modular boardrooms, creative design studios, and corporate workspaces where rapid installation is mandatory.The display natively integrates dual network architectures via Gigabit Ethernet or high-speed Wi-Fi 6 (802.11ax).It features standard 600x400 VESA mounting paths for rigid wall installations or flexible wheeled floor stands.Dual-solution technology allows the system to boot directly into native Microsoft Teams Rooms or Zoom Rooms configurations, or run in a generalized BYOD mode.
The system maintains absolute compatibility with modern workplace collaboration infrastructure, supporting up to 20 simultaneous touch points via an anti-glare infrared touchscreen interface.It interfaces cleanly with secondary panels and external peripherals via dedicated HDMI, USB, and Bluetooth 5.1 paths. Do not deploy this display in large auditoriums or expansive training rooms without supplementary expansion microphones, or on unreinforced partition walls incapable of supporting a heavy 88-pound static load.
Key Features :
Triple-eye 3x50MP camera system delivers crystalline 4K video resolution.
Integrated 16-mic array provides full-duplex pickup up to 39 feet.
Infrared 20-point touchscreen features anti-glare, 10-bit color accuracy.
Native Teams and Zoom Rooms certification simplifies software deployment.
Wi-Fi 6 and Gigabit Ethernet ensure robust corporate network connection.
Specifications :
| Attribute | Verified Technical Specification |
| Brand | Yealink |
| Part Number | 1203701 |
| Product Type | Collaboration Display |
| Screen Size & Type | 65" LCD Panel, 4K UHD (3840 x 2160), 60Hz |
| Display Performance | 400 Nits Brightness, 1,200:1 Contrast Ratio, 10-bit Color |
| Touch Technology | Infrared (IrDA), 20 Multi-touch Points, Anti-glare |
| Processor & OS | Quad-core 2.20 GHz + Quad-core 2.0 GHz, Android 13 |
| Memory & Storage | 8 GB System RAM, 64 GB Flash Memory |
| Camera Hardware | Triple-eye System (3 x 50 Megapixel Sensors) |
| Audio Setup | 16-Element Microphone Array, 36W RMS Speaker Output |
| Network Options | Gigabit Ethernet (2 x RJ-45 Ports), Wi-Fi 6 (802.11ax) |
| Local Connectivity | Bluetooth 5.1, 1 x HDMI Input, 1 x HDMI Output, 4 x USB |
| Power Parameters | 120V / 230V AC Input, 141W Typical / 243W Max Consumption |
| Mounting Spec | VESA Compatible, 600 x 400 mm Standard |
| Environmental | 32°F to 104°F (0°C to 40°C), 5% to 95% RH non-condensing |
