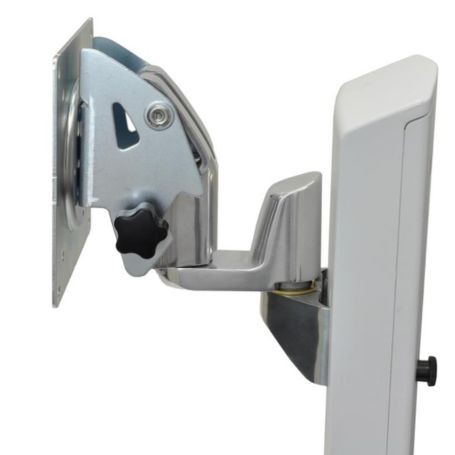

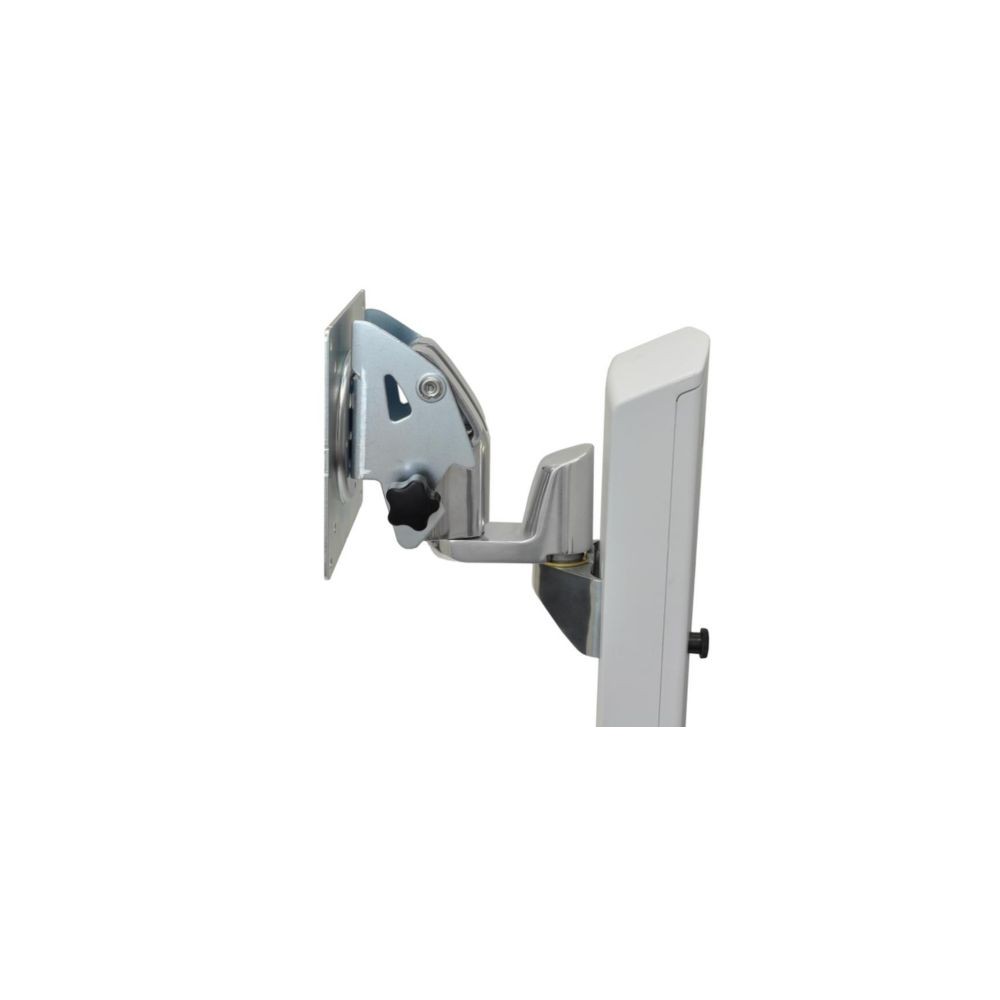

The Ergotron 97-650 Pan Pivot Kit is an accessory for compatible Ergotron StyleView LCD carts, designed to increase the display's side-to-side panning range to 180°. This allows the screen to turn approximately 90° to the left or right, making it easier to share information with colleagues or adjust the viewing direction to suit different tasks.
Constructed from polished aluminium, the kit integrates with the cart's existing pivot and base. It is a practical upgrade for compatible mobile workstations used in healthcare and other professional environments where flexible screen positioning is important.
Key Features
- 180° side-to-side pan: Expands the display's panning movement to allow approximately 90° of movement in either direction.
- Screen-sharing convenience: Makes it easier to turn the display toward colleagues or other viewers.
- Polished aluminium construction: Provides a durable finish suited to professional cart environments.
- Uses existing cart components: Designed to work with the compatible cart's existing pivot and base.
- Simple installation: Includes a pan extension and the required kit hardware.
Product Specifications
| Brand | Ergotron |
|---|
| MPN | 97-650 |
|---|
| Product Type | Pan Pivot Kit |
|---|
| Product Series | StyleView LCD Cart |
|---|
| Material | Aluminium |
|---|
| Finish | Polished aluminium |
|---|
| Pan Range | 180° total, approximately 90° left and right |
|---|
| Compatible Cart Families | Most StyleView carts with a 5-inch lift pivot and model numbers beginning SV31, SV32, SV41 or SV42, subject to compatibility restrictions |
|---|
| Mounting Arrangement | Uses the cart's existing pivot and base |
|---|
| Included Components | Pan extension and hardware |
|---|
| Maximum Load | Depends on the compatible cart model and configuration |
|---|
| Warranty | 5 years, subject to the manufacturer's warranty terms |
|---|
| UPC | 698833021660 |
|---|
Compatibility and Load Capacity
The 97-650 is compatible with most StyleView LCD carts featuring a 5-inch lift pivot and model numbers beginning with SV31, SV32, SV41 or SV42. It is not compatible with SV42 LiFe-powered carts. Compatibility should be confirmed against the exact cart model before ordering.
Installing this kit can change the cart's permitted display-weight capacity. The applicable limit depends on the cart series and whether the 5-inch lift function is locked out. Check the manufacturer's specifications for your particular cart and configuration before installation.
DC Supplies Product Note
Before purchasing, check the model number on your StyleView cart and confirm that it has the required 5-inch lift pivot. Do not assume that all StyleView carts are compatible. Also verify the revised display-weight limits for your specific configuration after fitting the kit.
Frequently Asked Questions
1. What does the Ergotron 97-650 Pan Pivot Kit do?
It increases the side-to-side panning range of a compatible StyleView LCD cart to 180°, allowing the display to turn approximately 90° in either direction.
2. Which StyleView carts support this kit?
It fits most carts with a 5-inch lift pivot and model numbers beginning with SV31, SV32, SV41 or SV42. SV42 LiFe-powered carts are excluded. Verify the exact model before ordering.
3. Does the kit include a new display mount?
The kit includes a pan extension and hardware and is designed to use the cart's existing pivot and base.
4. Does installing the kit affect display-weight capacity?
Yes. The allowable display weight depends on the cart series and configuration. Consult the manufacturer's specifications for the applicable limits before installation.
5. Is the kit made from aluminium?
Yes. Ergotron specifies a polished aluminium finish.
6. Is installation straightforward?
The kit is designed for straightforward installation on compatible carts. Follow Ergotron's installation instructions and confirm the cart's compatibility before fitting the accessory.
