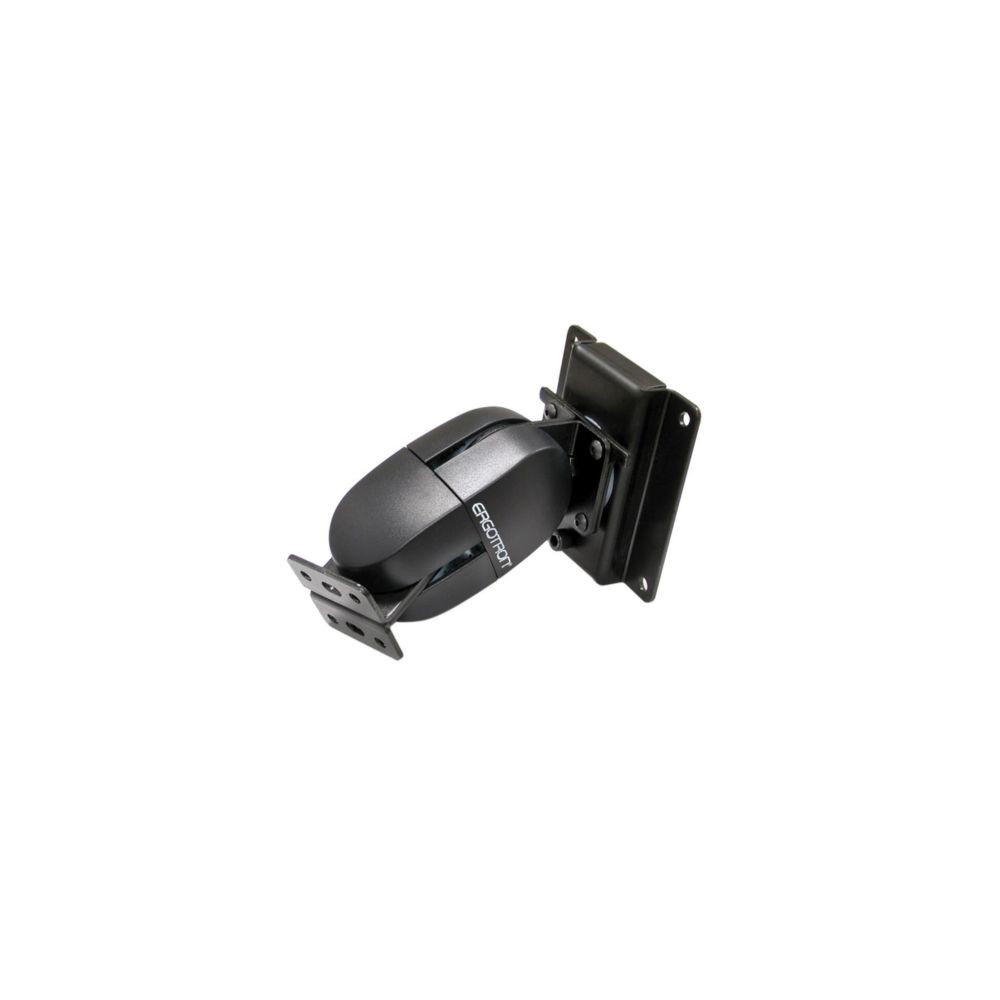

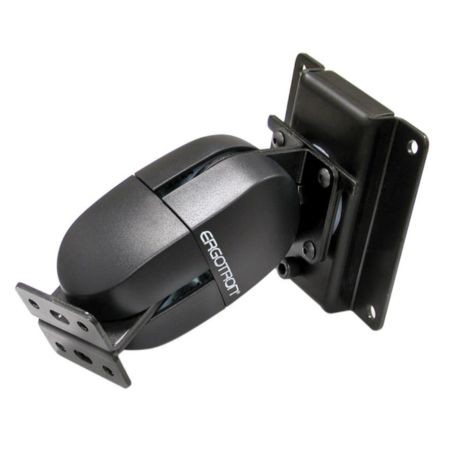

The Ergotron 47-093-800 100 Series Double Pivot is a compact monitor mounting solution designed to provide flexible screen positioning while maintaining a low-profile installation. Its double-pivot mechanism allows compatible displays to tilt, pan, and rotate, helping users adjust their viewing angle to suit different workstation requirements.
Built with an internal steel structure and a durable plastic exterior, this mount combines reliable support with a slim design. Both black and grey plastic covers are included, allowing you to select the finish that best suits your installation.
Key Features
- Double-pivot adjustment: Supports flexible monitor positioning with up to 180° of tilt and 180° of side-to-side pan.
- 360° screen rotation: Allows compatible displays to switch between landscape and portrait orientations.
- Low-profile design: Helps minimize the space between the mounting surface and the monitor.
- Durable construction: Features an internal steel structure with an easy-to-clean plastic exterior.
- Two finish options: Includes black and grey plastic covers to suit different workstation styles.
Flexible Monitor Positioning
The double-pivot mechanism makes it easier to position a monitor for different tasks and viewing preferences. Tilt adjustment supports forward and backward screen movement, while pan adjustment allows the display to turn from side to side. Full rotation supports landscape or portrait viewing where the monitor and surrounding space permit.
The mount supports a display weighing up to 23 lb (10.4 kg). Ergotron's product documentation lists a typical monitor size of up to 27 inches; actual suitability depends on the display's weight, dimensions, and mounting configuration.
Mounting and Compatibility
The 47-093-800 belongs to Ergotron's 100 Series mounting system. Depending on the installation, compatible mounting options may include appropriate wall plates, wall tracks, poles, or other supported interfaces. The required mounting hardware depends on the surface and installation method.
The display interface supports VESA MIS-D mounting patterns of 75 × 75 mm and 100 × 100 mm. Check your monitor's mounting pattern, weight, and the compatibility of the intended mounting surface before installation.
DC Supplies Product Note
The Ergotron 47-093-800 is a double-pivot monitor mounting component. Confirm the required surface-mounting interface and installation hardware for your setup, as these may depend on the chosen mounting method.
Technical Specifications
| Brand | Ergotron |
|---|
| MPN | 47-093-800 |
|---|
| Product Type | Double-pivot monitor mount |
|---|
| Product Series | 100 Series |
|---|
| Colour | Black and grey covers included |
|---|
| Maximum Display Weight | 23 lb (10.4 kg) |
|---|
| Typical Display Size | Up to 27 inches, subject to weight and configuration |
|---|
| Tilt | Up to 180° |
|---|
| Pan | Up to 180° |
|---|
| Rotation | 360° |
|---|
| VESA Compatibility | 75 × 75 mm and 100 × 100 mm |
|---|
| Construction | Internal steel structure with plastic exterior |
|---|
| Product Weight | Approximately 2.6 lb (1.2 kg) |
|---|
| Warranty | 5 years, subject to manufacturer terms |
|---|
Frequently Asked Questions
1. What is the Ergotron 47-093-800?
It is a 100 Series double-pivot monitor mount designed to provide adjustable positioning for a compatible LCD display.
2. What is the maximum supported monitor weight?
The mount supports a display weighing up to 23 lb (10.4 kg). Always verify that the monitor and complete mounting arrangement meet the manufacturer's requirements.
3. Which VESA patterns are supported?
The mount supports VESA 75 × 75 mm and 100 × 100 mm mounting patterns.
4. Can the monitor be used in portrait orientation?
Yes. The 360° rotation capability allows portrait or landscape positioning when supported by the monitor and installation setup.
5. Are both black and grey covers included?
Yes. The product documentation specifies that black and grey plastic covers are included, allowing you to choose the preferred finish during installation.
6. Does the product include a complete wall-mounting system?
The 47-093-800 is the double-pivot mounting component. Confirm whether a compatible wall plate, pole, track, or other mounting interface is required for your intended installation.
