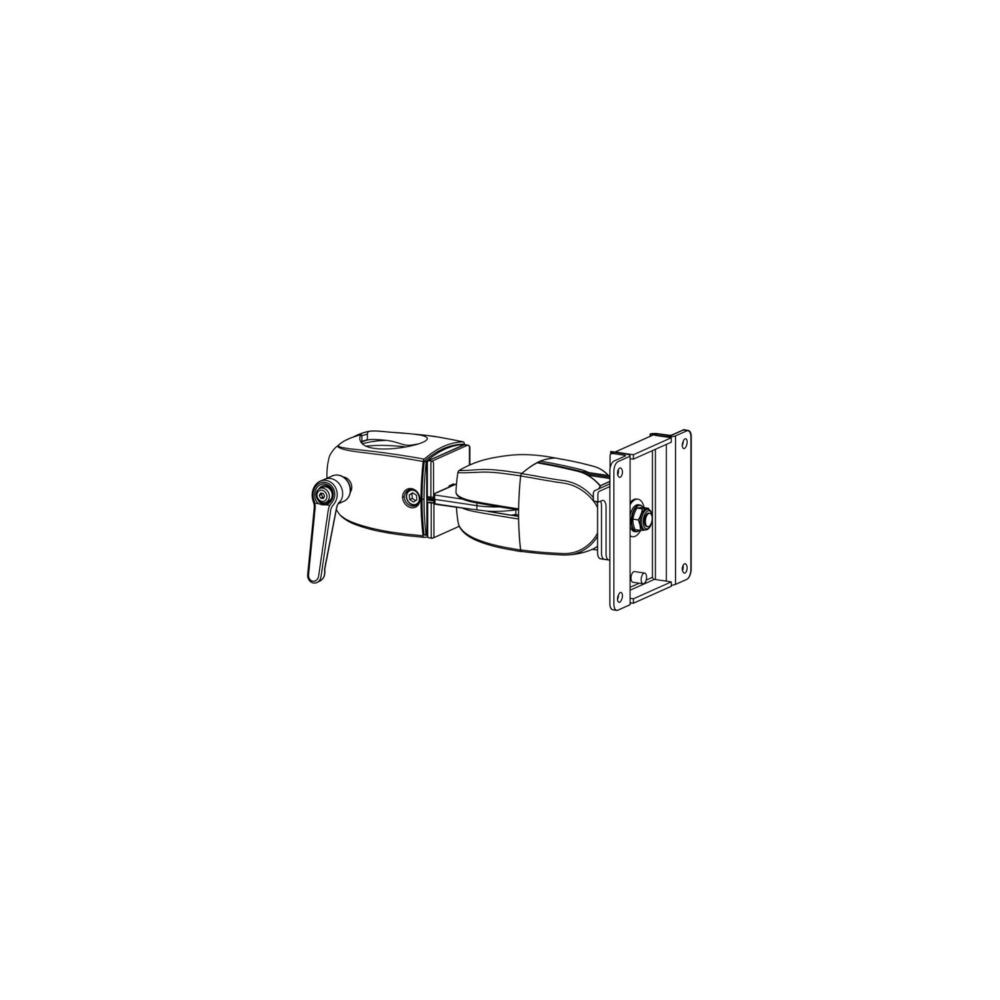

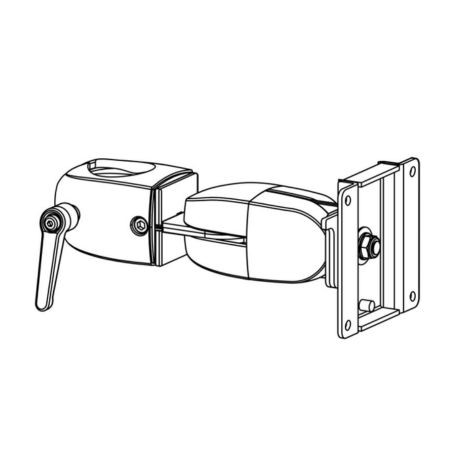

The Ergotron 47-051-200 DS100 Clamping Double Pivot is a monitor mounting component designed to provide flexible display positioning on compatible Ergotron DS100 pole systems. Its double-pivot mechanism allows users to adjust monitor height, tilt, swivel, and rotation to suit different viewing requirements.
Built for dependable everyday use, this black mounting component features a heavy-duty friction pivot that supports larger displays while maintaining adjustable tilt positioning. It is suitable for workstations and other environments where monitor placement needs to be customized.
Key Features
- Flexible display positioning: Supports tilt, pan, and rotation adjustments to help achieve a comfortable viewing angle.
- Convenient height adjustment: A handle allows the display position to be adjusted along a compatible DS100 pole.
- Heavy-duty friction pivot: Helps maintain the selected monitor tilt while allowing adjustments when needed.
- Standard VESA compatibility: Supports 75 × 75 mm and 100 × 100 mm mounting patterns.
- Modular DS100 design: Can be combined with compatible DS100 components to create a suitable monitor mounting configuration.
Adjustable Monitor Positioning
The double-pivot mechanism provides up to 180° of tilt and 180° of pan, along with 360° of display rotation. These adjustments make it easier to position a compatible monitor for different tasks and viewing preferences.
The height-adjustment handle allows the mount to be repositioned along the DS100 pole. The final monitor size and positioning depend on the complete mounting configuration and its balance requirements.
Compatibility and Installation
The Ergotron 47-051-200 is designed to attach to a compatible Ergotron DS100 pole. It does not attach directly to a DS100 crossbar. Before purchasing, confirm that your existing DS100 system uses the correct pole and that your monitor's weight and VESA mounting pattern meet the product specifications.
Follow the manufacturer's installation instructions and observe the balance requirements of the complete DS100 assembly to help ensure stable installation.
DC Supplies Product Note
This product is a DS100 clamping double-pivot mounting component, not a complete monitor stand. A compatible DS100 pole and other mounting components may be required and should be verified separately.
Technical Specifications
| Brand | Ergotron |
|---|
| MPN | 47-051-200 |
|---|
| Product Type | Clamping double-pivot monitor mount |
|---|
| Product Series | DS100 |
|---|
| Colour | Black |
|---|
| Maximum Display Weight | 23 lb (10.4 kg) |
|---|
| Recommended Display Size | Up to 30 inches, subject to configuration and weight limits |
|---|
| Tilt | 180° |
|---|
| Pan | 180° |
|---|
| Rotation | 360° |
|---|
| VESA Compatibility | 75 × 75 mm and 100 × 100 mm |
|---|
| Mounting Method | Attaches to a compatible DS100 pole |
|---|
| Warranty | 5 years, subject to manufacturer's terms |
|---|
Frequently Asked Questions
1. What is the Ergotron 47-051-200?
It is a DS100 clamping double-pivot monitor mount that provides adjustable positioning for a compatible display.
2. What is the maximum supported monitor weight?
The mount supports displays weighing up to 23 lb (10.4 kg). Always consider the specifications and balance requirements of the complete DS100 mounting system.
3. Which VESA mounting patterns are supported?
It supports standard VESA mounting patterns of 75 × 75 mm and 100 × 100 mm.
4. Can this mount attach to a DS100 crossbar?
No. The 47-051-200 is designed to attach to a compatible DS100 pole, not directly to a DS100 crossbar.
5. Is a complete monitor stand included?
No. This is a mounting component. A compatible DS100 pole and any other required components must be accounted for separately.
6. What adjustments does the mount provide?
It provides up to 180° of tilt, 180° of pan, and 360° of rotation, along with height repositioning on the compatible pole.
