Detailed Specifications

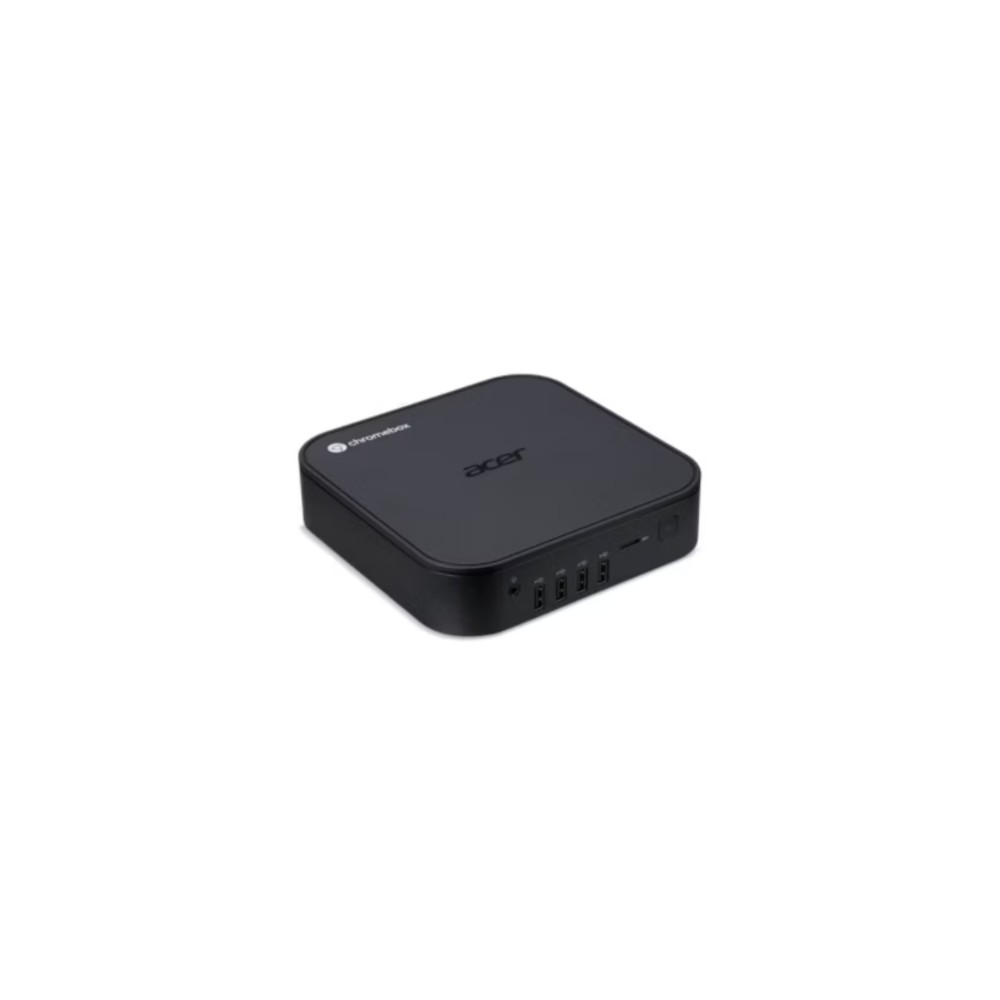

ACER DT.Z5DAA.002 Chromebox CXI6-C316G Mini PC
Overview :
The Acer DT.Z5DAA.002 (Model CXI6-C316G) is a commercial-grade, ultra-small form factor (USFF) Chromebox mini desktop computer engineered for enterprise cloud ecosystems, high-density office productivity, and specialized frontline computing terminals. It resolves severe desktop space limitations and client-side device security overheads by packing an efficient Intel Core 3 architecture within a ultra-compact, multi-port computing chassis running a cloud-first operating system.
This mini system is integrated with an Intel Core 3 100U 6-core processor (Series 1) capable of reaching turbo speeds up to 4.70 GHz.The internal hardware profile incorporates 16 GB of dual-channel DDR4 system memory alongside a fast 256 GB PCIe NVMe Gen4 M.2 solid-state drive for smooth local system operational buffering.It features integrated Intel Graphics, high-performance 2.5 Gigabit Ethernet network control, Intel Wi-Fi 6E, and triple independent digital video output support via dual HDMI and single DisplayPort connections.
Deployment scenarios include call centers, financial branch desks, administrative enterprise offices, interactive digital signage nodes, and zero-client network appliances. The system natively embeds a dedicated hardware security slot alongside ChromeOS cloud structures, allowing instantaneous automated workspace deployment, device fleet enrollment, and policy controls using the centralized Google Admin Console.
The Chromebox is highly optimized for secure SaaS cloud applications, virtual desktop infrastructure (VDI), Google Workspace pipelines, and browser-centric business networks. It is not suitable for bare-metal infrastructure layouts that require localized legacy Windows operating system binaries (.exe) or local high-draw discrete desktop GPU acceleration lines.
Key Features :
Intel Core 3 100U 6-core processor drives smooth business application loops.
16 GB DDR4 RAM handles high-density cloud software processes with ease.
2.5 Gigabit Ethernet port provides ultra-fast wired backhaul networking.
Ultra-compact form factor saves critical real estate at high-density desks.
Triple video outputs support multi-monitor workstation productivity tasks.
Specifications :
| Attribute | Specification |
| Brand | ACER |
| Part Number | DT.Z5DAA.002 |
| Product Type | Chromebox |
| Product Line | Acer Chromebox CXI6 |
| Product Model | CXI6-C316G |
| Processor | Intel Core 3 100U (Hexa-Core, 8 Threads, up to 4.70 GHz, 10 MB Cache) |
| System Memory | 16 GB DDR4 SDRAM (SO-DIMM Configuration) |
| Storage Capacity | 256 GB PCIe NVMe Gen4 M.2 SSD |
| Operating System | ChromeOS |
| Graphics Controller | Intel Graphics (Shared Memory Accessibility) |
| Network Hardware | 1 x Realtek RTL8125BG 2.5 Gigabit Ethernet Controller (RJ-45) |
| Wireless Connectivity | Intel Wi-Fi 6E AX211 (802.11ax) + Bluetooth 5.3 |
| Front Interfaces | 2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2 Type-A, microSD Card Reader |
| Rear Ports | 1 x USB 3.2 Gen 2 Type-C (DP Alt Mode / PD), 3 x USB 3.2 Gen 1 Type-A |
| Video Connectivity | 2 x HDMI Output Ports, 1 x DisplayPort Output Port |
| Expansion Slots | 2 x M.2 Interfaces (1 x Storage Port, 1 x WLAN Port) |
| Physical Security | Kensington Security Lock Slot, Recovery Key Support |
| Power Infrastructure | 90 W External Power Supply Adapter |
