Overview

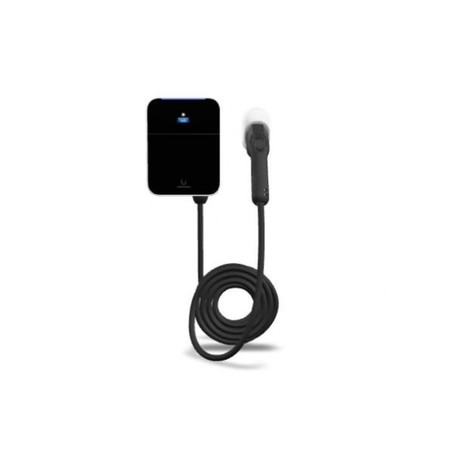

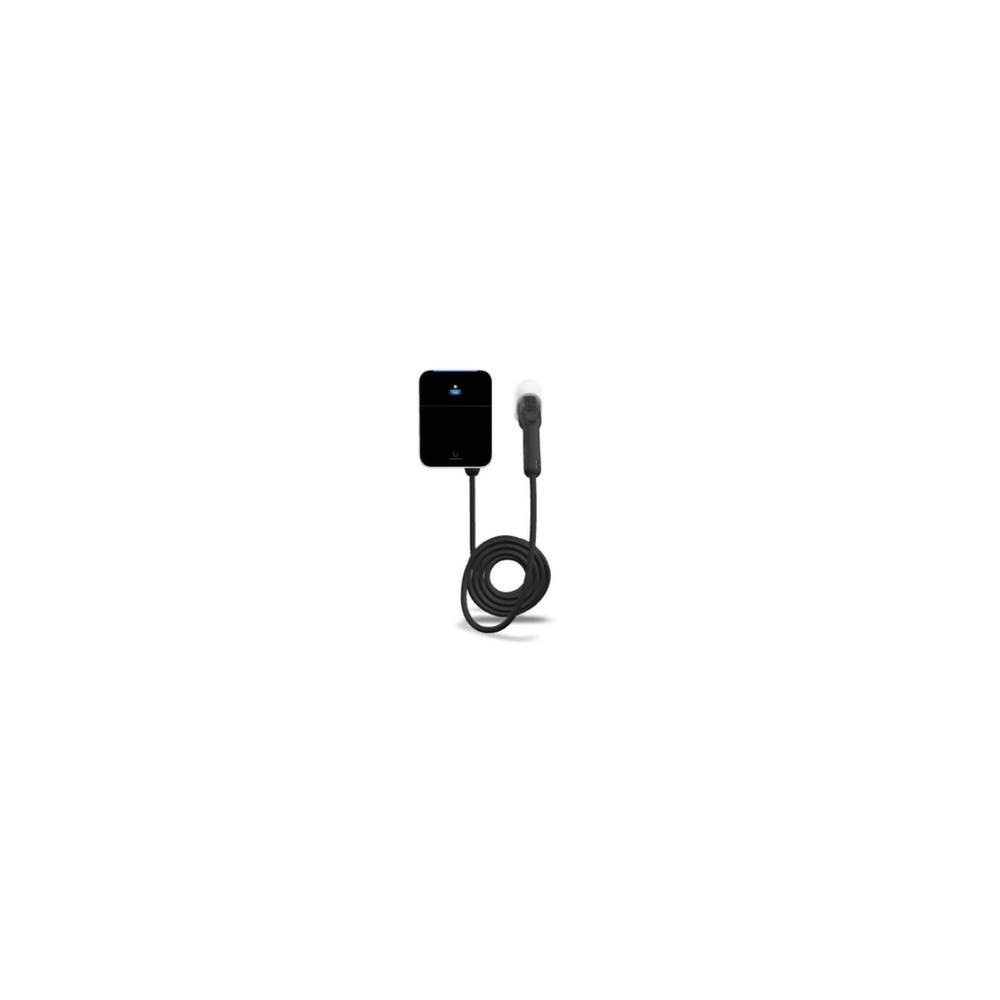

The Ubiquiti UC-EV-STATION-LITE-US EV Station Lite is a weatherproof Level 2 electric vehicle charging station designed for residential, commercial, and managed EV charging deployments. The US model provides up to 11 kW of charging output through an SAE J1772 connector and combines local charging controls with network connectivity and access management.
The station features a built-in 1.7-inch LCM display, integrated 7 m (23 ft) charging cable, Wi-Fi and Bluetooth connectivity, and a Gigabit Ethernet interface. Access can be managed using UniFi Identity and NFC cards, while charging and management functions integrate with Ubiquiti's UniFi Connect ecosystem.
Charging and Electrical Configuration
The UC-EV-STATION-LITE-US operates on 200–240V AC, single phase, at up to 50A and provides 200–240V AC charging output at up to 50A. Its maximum advertised charging power is 11 kW. Supported circuit configurations allow different charging loads depending on the circuit rating and whether the installation is plug-in or hardwired.
For electrical installation, the specified circuit must be rated for 125% of the maximum charging load. The field-wiring terminal supports conductors up to 16 mm² (6 AWG) and is rated for wiring up to 105°C. Final breaker, conductor, and installation requirements should be determined according to applicable electrical codes and the actual charging configuration.
Access and Connectivity
The EV Station Lite provides network connectivity through Wi-Fi or its Gigabit Ethernet RJ45 port and also includes Bluetooth 5.0. NFC authentication supports controlled access when configured with the applicable Ubiquiti management services. Ubiquiti specifies that UniFi Access must run on the same console as UniFi Connect for NFC card registration.
Key Features
- Up to 11 kW Level 2 AC charging through an SAE J1772 connector.
- 200–240V single-phase operation with charging current up to 50A.
- 7 m (23 ft) integrated charging cable for vehicle connection.
- 1.7-inch 240 × 240 LCM display for local status and controls.
- Wi-Fi, Bluetooth 5.0, and Gigabit Ethernet connectivity with NFC access control.
Applications
The UC-EV-STATION-LITE-US can be deployed for managed EV charging at homes, offices, commercial properties, and other locations requiring a network-connected Level 2 charging station. Its weatherproof Type 3R enclosure supports outdoor installations, while wall mounting or an optional stand-based installation provides flexibility for deployment.
Compatibility and Management
The US version uses an SAE J1772 vehicle connector and is designed for compatible Level 2 electric vehicles. Network management and EV charging features are integrated through UniFi Connect, while UniFi Identity provides supported access-control functions. NFC card registration requires UniFi Access to be running on the same console as UniFi Connect.
DC Supplies Product Note
The UC-EV-STATION-LITE-US is the United States version with an SAE J1772 connector and single-phase 200–240V electrical configuration. Buyers specifying installations outside the US should verify regional electrical requirements and connector standards rather than assuming this model is interchangeable with region-specific EV Station versions.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UC-EV-STATION-LITE-US |
| Product Type | Level 2 Electric Vehicle Charging Station |
| Product Name | EV Station Lite |
| Charging Level | Level 2 |
| Maximum Charging Power | 11 kW |
| Power Input | 200–240V AC, up to 50A, 50/60Hz, single phase |
| Power Output | 200–240V AC, up to 50A, 50/60Hz, single phase |
| Vehicle Connector | SAE J1772 |
| Charging Cable Length | 7 m (23 ft) |
| Display | 1.7-inch LCM |
| Display Resolution | 240 × 240 |
| Mounting | Wall mount or stand |
| Enclosure Material | Polycarbonate |
| Weatherproofing | Type 3R |
| Ethernet | 1 × Gigabit Ethernet RJ45 |
| Wireless Connectivity | Wi-Fi, Bluetooth 5.0 |
| Additional Interface | 1 × USB-C |
| Access Control | UniFi Identity mobile app and NFC card |
| Operating Temperature | -40°C to 50°C (-40°F to 122°F) |
| Operating Humidity | 5% to 90% non-condensing |
| Dimensions | 254.7 × 192.7 × 85 mm (10 × 7.6 × 3.3 in) |
| Weight | 5.9 kg (13 lb) |
| Certifications / Compliance | FCC, IC, UL, NDAA |
FAQs
What charging connector does the UC-EV-STATION-LITE-US use?
The US model uses an SAE J1772 vehicle charging connector.
How much power can the EV Station Lite deliver?
The UC-EV-STATION-LITE-US provides up to 11 kW of Level 2 charging power, with 200–240V single-phase output at up to 50A.
How long is the charging cable?
The integrated charging cable is 7 m (23 ft) long.
Can the EV Station Lite be used outdoors?
Yes. The enclosure is specified as weatherproof Type 3R and has an operating temperature range of -40°C to 50°C (-40°F to 122°F).
How can the EV Station Lite connect to a network?
The station supports Wi-Fi and Bluetooth 5.0 and includes one Gigabit Ethernet RJ45 port for wired connectivity.
Does the station support NFC access control?
Yes. NFC card access is supported when configured with the applicable Ubiquiti access-control services. Ubiquiti specifies that UniFi Access must run on the same console as UniFi Connect for NFC card registration.
