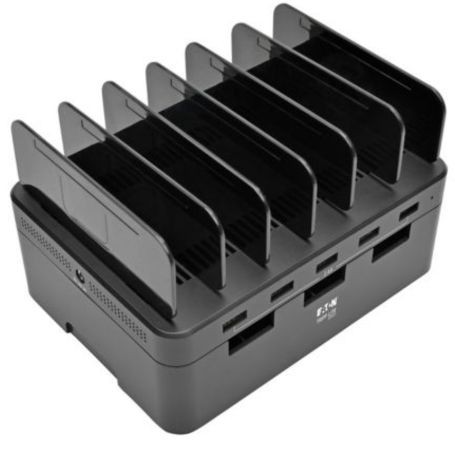

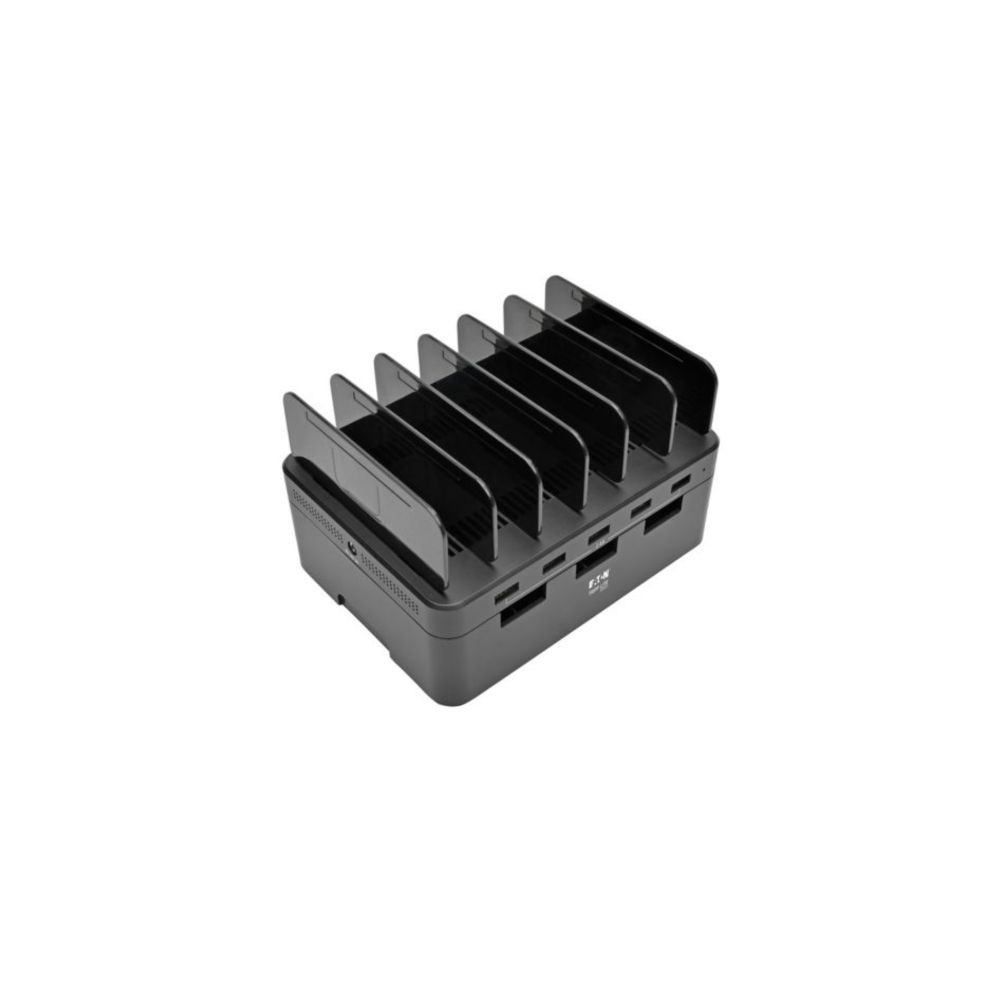

Eaton U280-005-ST Tripp Lite 5 Port USB Charging Station with Storage
The Eaton U280-005-ST Tripp Lite 5-Port USB Charging Station provides a dedicated charging and storage solution for smartphones, tablets, e-readers, and other USB-powered devices. It features five USB-A charging ports, up to 5V/2.4A per port, and 48W of total charging output.
Five USB-A Charging Ports
Each of the five USB-A ports supports up to 5V/2.4A for charging compatible mobile devices. All five ports comply with USB Battery Charging (BC) Specification 1.2, allowing the station to charge multiple devices simultaneously without requiring a computer.
Built-In Device Storage
The charging station incorporates seven adjustable storage brackets that can be positioned according to the number and size of connected devices. A built-in storage compartment provides space for organizing charging cables and storing the removable brackets and power supply when the station is not being used.
AC-Powered Charging Station
The U280-005-ST uses an external 100–240V AC power supply that provides 12V/4A to the charging station. A 5 ft C7-to-NEMA 1-15P power cord is included for connection to a compatible North American AC outlet.
Charging Protection
The U280-005-ST includes overheating, overcurrent, overvoltage, overload, and overcharging protection features. The manufacturer also specifies charging behavior that stops charging when a connected device reaches full capacity.
Key Features
- Five USB-A charging ports
- Up to 5V/2.4A per port
- 48W total charging output
- Seven adjustable device-storage brackets
- Built-in compartment for cable organization
DC Supplies Product Note
The seven removable brackets make the U280-005-ST useful when several devices of different sizes need to be charged in one location. The bracket arrangement can be adjusted instead of requiring a fixed number of device slots.
Typical Applications
- Classroom and school device charging
- Office and workplace charging stations
- Retail and point-of-sale environments
- Clinic and healthcare device charging areas
- Home charging and device organization
- Tablet and smartphone storage while charging
Technical Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number / MPN | U280-005-ST |
| Product Type | 5-Port USB Charging Station |
| Charging Port Type | USB-A Female |
| Number of Charging Ports | 5 |
| Output Voltage | 5V DC |
| Maximum Output Per Port | 2.4A |
| Total Output Power | 48W |
| USB Charging Standard | USB Battery Charging Specification 1.2 |
| AC Power Adapter Input | 100–240V AC, 50/60Hz, 1.5A |
| AC Power Adapter Output | 12V DC, 4A |
| Power Cord Length | 5 ft |
| Input Plug | NEMA 1-15P, non-polarized |
| Storage Brackets | 7 adjustable/removable brackets |
| Overcurrent Protection | Yes |
| Overvoltage Protection | Yes |
| Overload Protection | Yes |
| Overheating Protection | Yes |
| Overcharging Protection | Yes |
| LED Indicator | Blue power LED |
| Material | Polycarbonate |
| Color | Black |
| Operating Temperature | 41°F to 95°F (5°C to 35°C) |
| Storage Temperature | -4°F to 122°F (-20°C to 50°C) |
| Operating Humidity | 20–80% RH, non-condensing |
| Dimensions | 6.614 × 4.882 × 0.787 in (W × D × H) |
| Weight | 1.3 lb |
| Compliance | RoHS, REACH, FCC |
| Warranty | 2-year limited warranty |
| UPC | 037332199584 |
Package Contents
- 1 × Eaton U280-005-ST 5-Port USB Charging Station
- 1 × External power supply, 100–240V AC input, 12V/4A output
- 1 × C7-to-NEMA 1-15P power cord, 5 ft
- 7 × Adjustable/removable storage brackets
- 1 × Quick Start Guide
Frequently Asked Questions
How many devices can the U280-005-ST charge?
The charging station has five USB-A ports and can charge up to five compatible devices simultaneously.
How much power does each USB port provide?
Each USB-A port supports up to 5V/2.4A. The station provides 48W of total charging output.
Does the U280-005-ST require a computer?
No. It is powered by its external AC power supply and operates as a standalone USB charging station.
How many storage brackets are included?
Seven adjustable/removable storage brackets are included.
Is the power supply included?
Yes. The package includes the external 100–240V AC power supply and a 5 ft C7-to-NEMA 1-15P power cord.
What type of devices can it charge?
The station is designed for compatible USB-powered devices such as smartphones, tablets, e-readers, and similar mobile electronics.
