Detailed Specifications

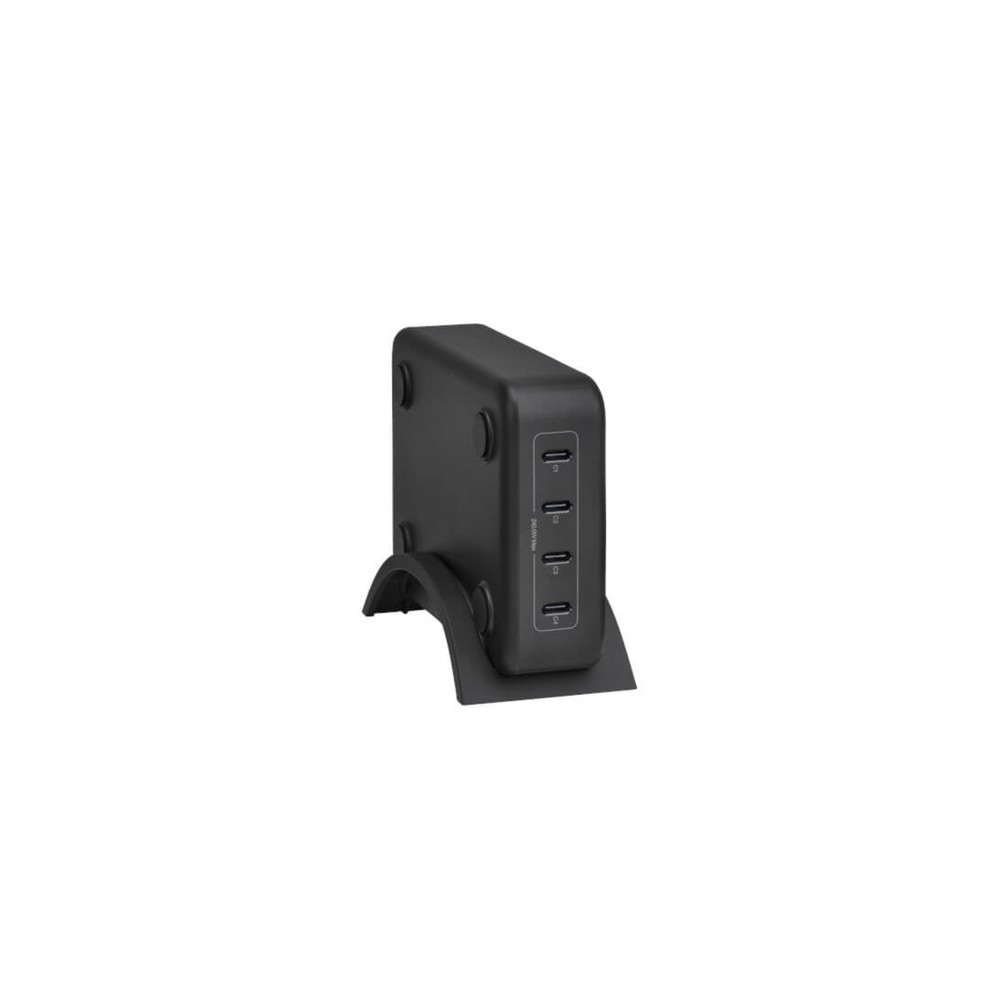

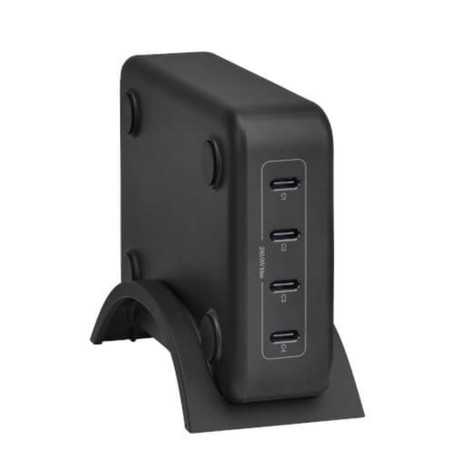

Eaton U280-004-240C4 - USB-C GaN Charging Station
Overview
The Eaton U280-004-240C4 is a 4-port USB-C GaN charging station designed for high-density charging of laptops, tablets, smartphones, and USB-C peripherals in enterprise, education, hospitality, and shared workspace environments. It consolidates multiple high-wattage USB-C power adapters into a single desktop charging platform.
The unit delivers up to 240W total output with USB Power Delivery 3.1 support and can provide up to 140W from a single USB-C port for demanding notebooks and workstation-class mobile systems. Dynamic Power Allocation automatically distributes available power across connected devices based on load requirements. GaN technology improves thermal efficiency while reducing charger size compared to conventional silicon-based designs.
This charging station is intended for desktop deployment in conference rooms, hot-desk environments, IT staging areas, retail counters, and executive workspaces where multiple USB-C devices require simultaneous charging. The compact form factor and included charging stand simplify placement in space-constrained environments.
The U280-004-240C4 is compatible with USB-C laptops, MacBooks, tablets, smartphones, handheld gaming systems, and other USB-C PD devices. It is not intended for rack-mounted power distribution or legacy USB-A device charging without adapters.
Key Features
- 240W total output supports multi-device charging
- USB PD 3.1 delivers up to 140W per port
- GaN design improves thermal and power efficiency
- Dynamic allocation balances power across devices
- Four USB-C ports reduce desktop charger clutter
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | U280-004-240C4 |
| Product Type | USB-C GaN Charging Station |
| Total Power Output | 240W |
| USB Standard | USB Power Delivery 3.1 |
| Number of USB-C Ports | 4 |
| Maximum Single-Port Output | 140W |
| Output Voltage | 5V DC, 9V DC, 20V DC, 28V DC |
| Maximum Output Current | 5A |
| Input Voltage Range | 100V AC - 240V AC |
| Frequency | 50/60 Hz |
| Cable Length | 3 ft |
| Form Factor | Desktop |
| Color | Gray |
| Safety Certifications | UL, cUL, FCC |
