Detailed Specifications

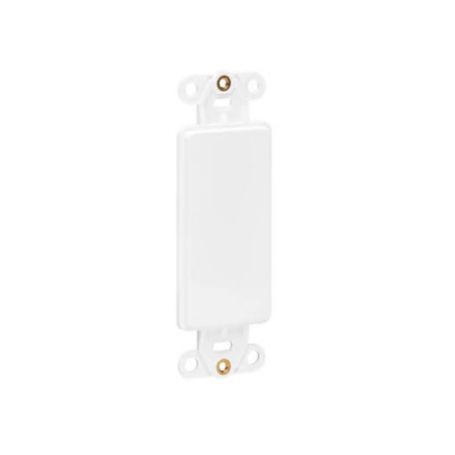

Eaton N042D-100V-WH Tripp Lite Decora-Style Vertical Blank Center Plate Insert
Overview:
The Eaton N042D-100V-WH / Tripp Lite is a vertical blank center plate insert for Decora-style wall plates, designed to cover unused in-wall ports or openings and protect them from debris, tampering and unauthorized cable connections.
The blank insert provides a clean, finished appearance when installed in a compatible Decora-style wall plate. It is intended for premise-wiring installations where unused keystone positions need to remain covered until a permanent connection is installed. Eaton's Tripp Lite documentation identifies the exact model as “Center Plate Insert, Decora Style - Vertical, Blank.”
The insert is constructed from ABS and finished in white. Two mounting screws are included for flush installation with a compatible Decora-style wall plate, which is sold separately. It can be used with wall-plate configurations supporting Cat5/5e, Cat6, Cat6a, DisplayPort, HDBaseT, HDMI and USB keystone installations.
Key Features :
- Vertical blank center plate insert covers an unused opening in compatible Decora-style wall plates.
- Protects unused ports from dust, debris, tampering and unauthorized connections.
- ABS construction provides a durable, lightweight insert suitable for premise-wiring installations.
- White Decora-style design provides a clean finished appearance that blends with standard wall-plate installations.
- Includes two mounting screws for flush installation with a compatible Decora-style wall plate.
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Compatible Brand | Tripp Lite by Eaton |
| Model | N042D-100V-WH |
| Product Type | Center Plate Insert |
| Plate Style | Decora Style |
| Orientation | Vertical |
| Port Configuration | Blank |
| Port Count | 0 active ports |
| Application | Premise Wiring |
| Compatible Installation | Decora-Style Wall Plate |
| Compatible Keystone Applications | Cat5/5e, Cat6, Cat6a, DisplayPort, HDBaseT, HDMI, USB |
| Housing Material | ABS |
| Color | White |
| Mounting Type | Flush Mount |
| Mounting Screws | 2 Included |
| Wall Plate | Sold Separately |
| Operating Temperature | 14° to 140°F / -10° to 60°C |
| Storage Temperature | -40° to 154.4°F / -40° to 68°C |
| Relative Humidity | 10% to 90%, Non-Condensing |
| Country of Origin | Taiwan |
| RoHS Compliant | Yes |
| UPC | 037332249685 |
| Product Weight | 0.0345 lb |
