Detailed Specifications

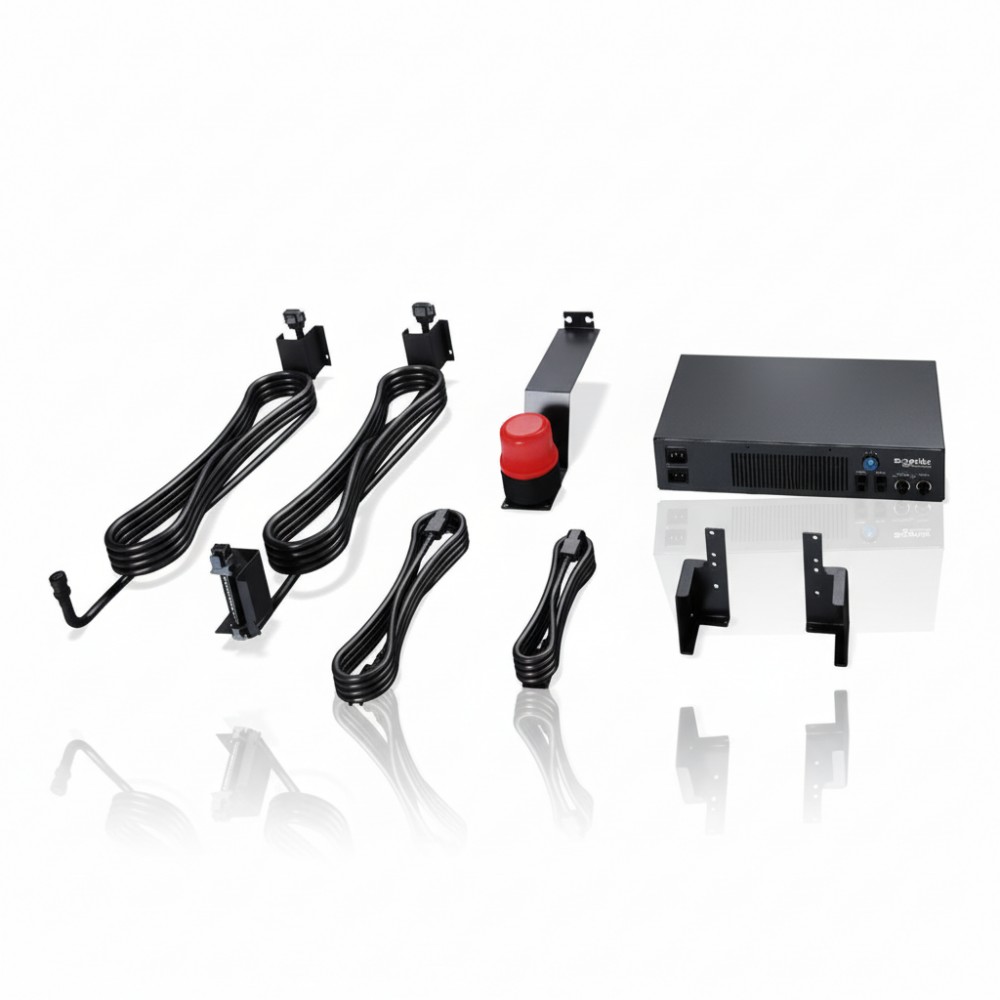

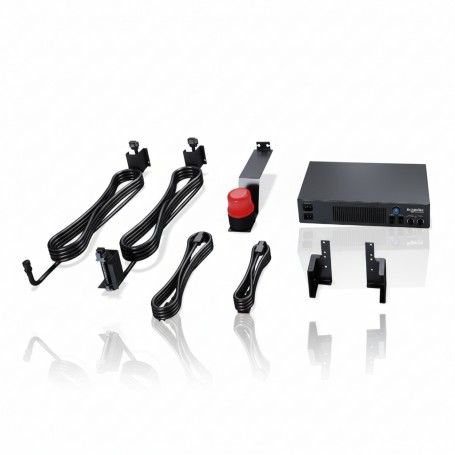

APC ACDC2016 Ceiling Panel Lock System with Power Supply
Overview
The APC ACDC2016 is an electromechanical ceiling-panel locking system for NetShelter / EcoAisle containment configurations. It provides a secure lock for the overhead containment structure, preventing unauthorized access to the aisle roof. Unlike purely mechanical locks, this unit includes a power supply (100-120 V) to drive the lock system, enabling controlled locking and integration with more advanced infrastructure.In real-world containment deployments, you install this system when you want to secure the ceiling tiles of your hot- or cold-aisle containment and potentially integrate with fire / security infrastructure: its power-backed lock ensures the containment roof stays sealed except when authorized panels are opened. The system supports up to 30 electromechanical locks per power box, giving granular security control over long containment runs.
Key Features
Electromechanical locking: locks ceiling panels and prevents unauthorized access.
Integrated power supply: uses 100-120 V supply included with the unit.
Scalable design: supports up to 30 locks per power-supply unit.
Compact enclosure: mounting box is small enough to integrate into containment infrastructure without major footprint.
RoHS / REACH compliant: environmentally responsible build, 5-year APC warranty.
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC (Schneider Electric) |
| Part Number | ACDC2016 |
| Product Type | Ceiling-Panel Lock System |
| Key Spec × Input Voltage | 100-120 V AC |
| Key Spec × Max Locks Supported | Up to 30 electromechanical locks per power-supply box |
| Weight | ~10.83 kg / 23.88 lb |
| Dimensions (W × H × D) | 322 mm × 129 mm × 394 mm (approx) |
| Management | Powered electromechanical (lock control) |
| Power Requirements | AC power via included supply |
| Operating Environment | Indoor data-center containment systems |
| Compliance | RoHS, REACH |
| Warranty | 5 years |
