Overview

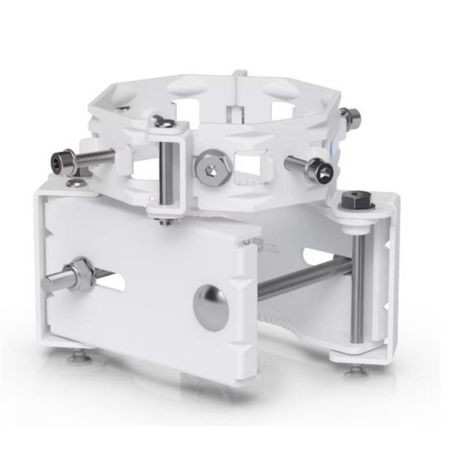

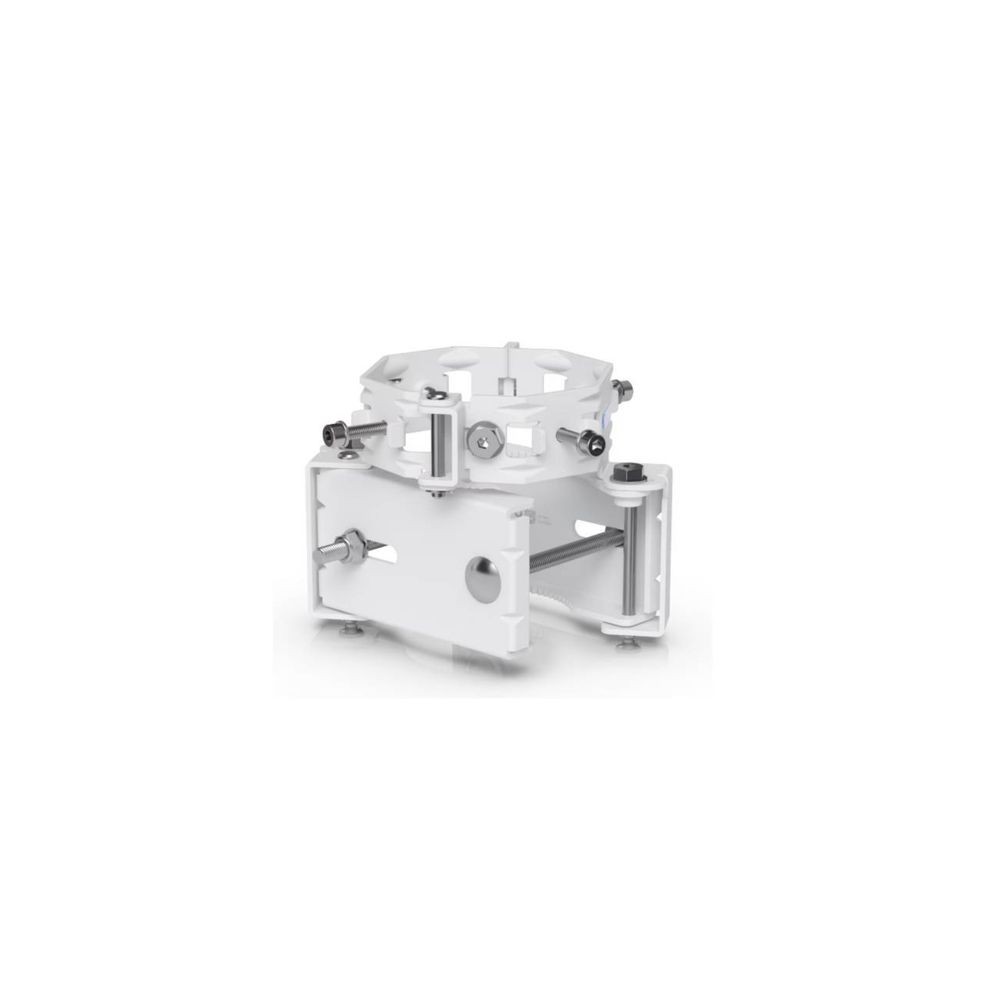

The Ubiquiti UACC-WAVE-AP-MICRO-MOUNT is a corrosion-resistant pole mounting accessory designed for UISP Wave wireless deployments. It supports mounting up to four Wave AP Micro or Wave AP Gen2 units around a pole, enabling full 360° wireless coverage. :contentReference[oaicite:1]{index=1}
Mounting and Compatibility
The mount is designed for Wave AP Micro and Wave AP Gen2 access points. Its multi-device configuration allows up to four compatible access points to be positioned around a pole for directional coverage across a complete 360° area. :contentReference[oaicite:2]{index=2}
Construction and Environmental Performance
The mount uses powder-coated stainless steel construction and supports pole diameters from 25 to 76 mm (1 to 3 inches). Ubiquiti specifies wind survivability up to 200 km/h (125 mph) and wind loading of 100.9 N at 200 km/h. :contentReference[oaicite:3]{index=3}
Key Features
- Supports up to four Wave AP Micro or Wave AP Gen2 units
- Enables full 360° wireless coverage
- Compatible with 25–76 mm poles
- Powder-coated stainless steel construction
- Wind survivability up to 200 km/h
Applications
The UACC-WAVE-AP-MICRO-MOUNT is intended for outdoor UISP Wave deployments where multiple access points need to be arranged around a pole. The four-device configuration can provide coverage in multiple directions without requiring separate mounting structures for each access point.
DC Supplies Product Note
This product is a dedicated mounting accessory and does not provide wireless connectivity or power by itself. The compatible Wave access points and their required power infrastructure must be installed separately.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-WAVE-AP-MICRO-MOUNT |
| Product Type | Wireless Access Point Mount |
| Product Line | UISP Wave |
| Compatible Devices | Wave AP Micro, Wave AP Gen2 |
| Maximum Supported Devices | 4 |
| Coverage Configuration | 360° |
| Mounting Type | Pole mount |
| Pole Mount Diameter | 25–76 mm (1–3 in) |
| Material | Powder-coated stainless steel |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 100.9 N at 200 km/h (23 lbf at 125 mph) |
| Dimensions | 175 × 148 × 133.5 mm |
| Weight | 1.4 kg |
FAQs
What is the UACC-WAVE-AP-MICRO-MOUNT?
It is a pole-mount accessory for UISP Wave AP Micro and Wave AP Gen2 access points.
How many Wave access points can it hold?
The mount supports up to four Wave AP Micro or Wave AP Gen2 units. :contentReference[oaicite:4]{index=4}
What pole sizes are supported?
It supports poles with diameters from 25 to 76 mm (1 to 3 inches). :contentReference[oaicite:5]{index=5}
Can it provide 360° coverage?
Yes. Ubiquiti specifies that mounting up to four compatible Wave access points enables full 360° broadcasting. :contentReference[oaicite:6]{index=6}
What is the wind survivability rating?
The mount is rated for wind survivability up to 200 km/h (125 mph), with 100.9 N of wind loading at that speed. :contentReference[oaicite:7]{index=7}
