Detailed Specifications

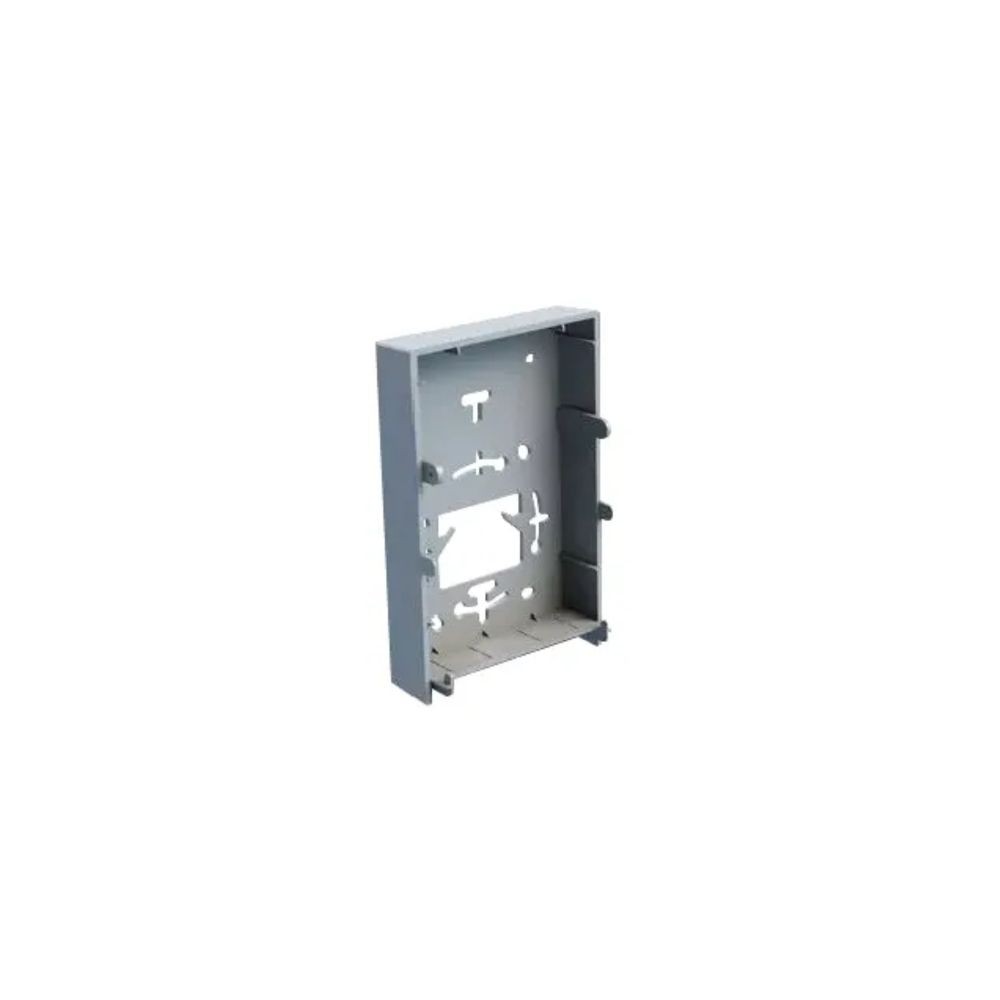

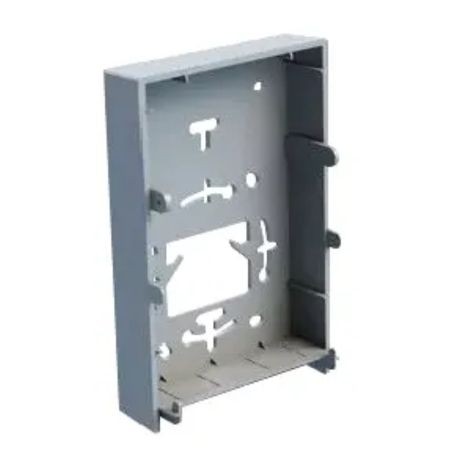

Ruckus 902-0136-0000 - Surface-Mount Bracket for H550
Overview :
The Ruckus 902-0136-0000 is a dedicated mounting bracket designed to install the H550 wall-switch wireless access point in locations without a standard electrical outlet box. It provides a secure wall surface mount solution, aligning with the H550's mounting holes and enabling clean routing of network and power cables. The bracket includes the necessary screw hardware and is engineered for compatibility with the H550 in environments such as hospitality rooms, multi-dwelling units or branch offices where standard outlet boxes are absent. Its rigid plastic construction supports the weight and form factor of the H550 while maintaining safe clearance and mounting alignment. When used in conjunction with the H550, the 902-0136-0000 bracket enables flexible placement on flat walls, ensuring professional installation and reliable operation of the access point in wall-mounted scenarios.
Key Features :
Designed for H550 when no junction box is available
Includes plastic bracket and mounting screws
Enables wall-surface mount of H550 access point
Matches H550 mounting holes and alignment tabs
Supports cable routing and secure installation
Specifications
| Specification | Detail |
|---|
| Brand | Ruckus |
| Part Number | 902-0136-0000 |
| Product Type | Surface-Mount Bracket for H550 |
| Compatible AP | H550 wall-switch access point |
| Mounting Surface | Flat wall where no outlet box exists |
| Material | Plastic (moulded bracket) |
| Hardware Included | Torx screws (2) and mounting anchors |
| Weight | 0.20 lbs |
| Dimensions (Length) | 7.165 inches |
| Dimensions (Width) | 3.858 inches |
| Dimensions (Height/Depth) | 1.574 inches |
| Color | White |
| UNSPSC Code | 43222631 |
| Use Case | H550 installation without junction box |
| Installation Requirement | Drill wall anchors suitable for surface |
