Detailed Specifications

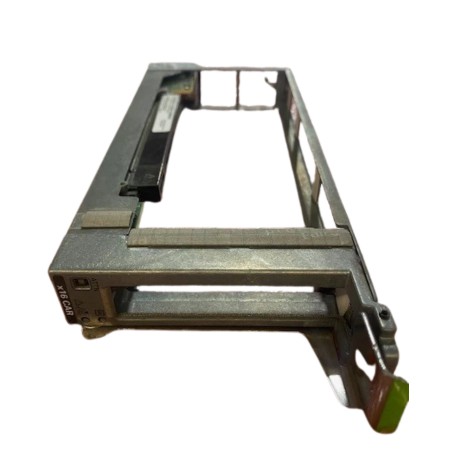

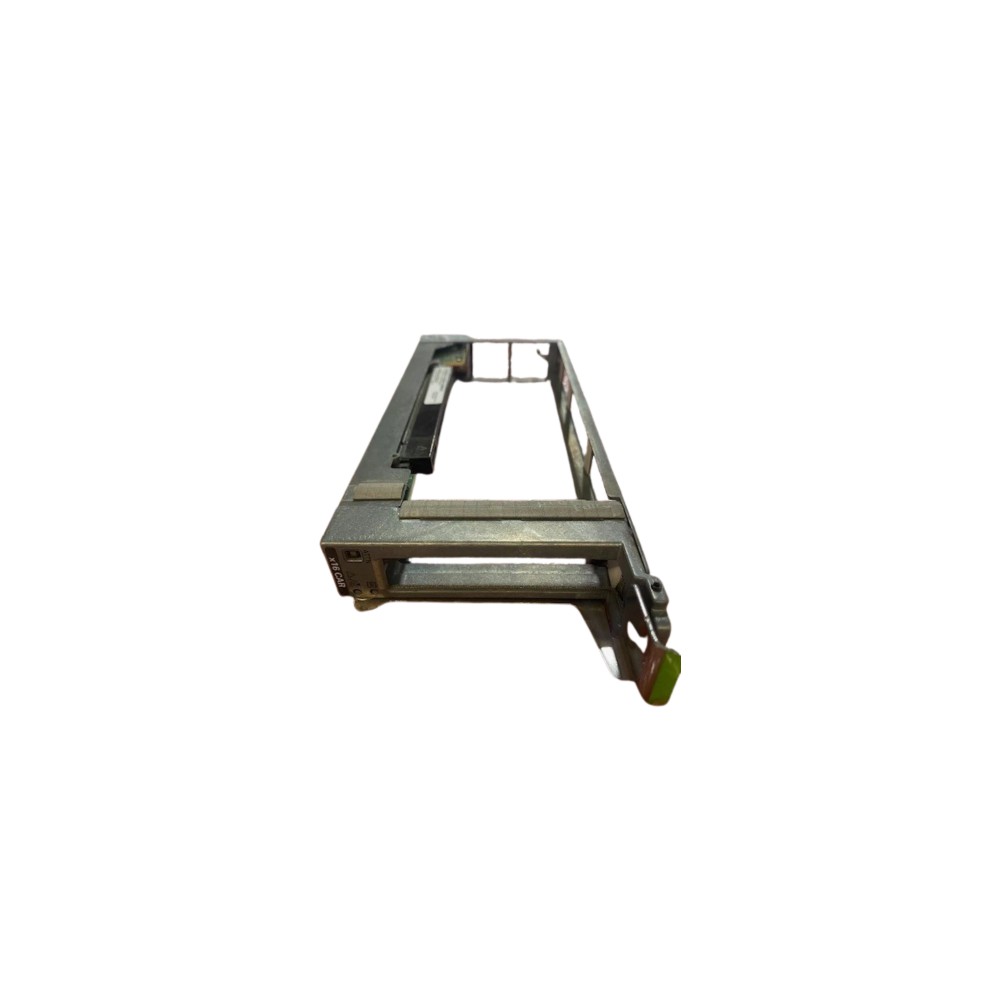

Oracle 7089613 PCIe Carrier Assembly
Overview :
The Oracle 7089613 is a genuine PCI Express (PCIe) carrier assembly designed to house and secure high-performance expansion cards within Oracle SPARC enterprise server platforms. This assembly acts as a mechanical interface, ensuring that PCIe cards×such as network interface cards (NICs), Fibre Channel host bus adapters (HBAs), or specialized accelerators×are correctly aligned and electrically connected to the server's backplane.
Engineered for mission-critical reliability, this carrier maintains structural integrity and provides necessary thermal airflow guidance for high-wattage expansion cards. It is a critical component for maintaining system stability in high-density rack configurations where precise I/O placement is required.
This assembly is intended for use in specific Oracle server models, including the SPARC M8-8, M7-16, M7-8, T8-4, and T7-4. It should only be installed by certified technicians to ensure proper seating and electrical contact, as improper installation can result in signal degradation or mechanical failure of the PCIe slot.
Key Features :
Supports x16 PCIe form factor for high-bandwidth I/O expansion.
Mechanical structure ensures secure retention in high-vibration.
Precision alignment for reliable electrical interconnectivity.
Designed for hot-serviceability in supported SPARC chassis.
Optimized airflow path for active cooling of expansion cards.
Specifications :
| Feature | Specification |
| Brand | Oracle |
| Part Number | 7089613 |
| Product Type | PCIe Carrier / Riser Assembly |
| Interface Type | PCIe x16 |
| Compatibility | SPARC M8-8, M7-16/8, T8-4, T7-4 |
| Form Factor | Proprietary Server Internal |
| Mounting Type | Tool-less / Lever-locking mechanism |
| Operational Role | Mechanical/Electrical I/O Support |
| Regulatory | RoHS Compliant |
