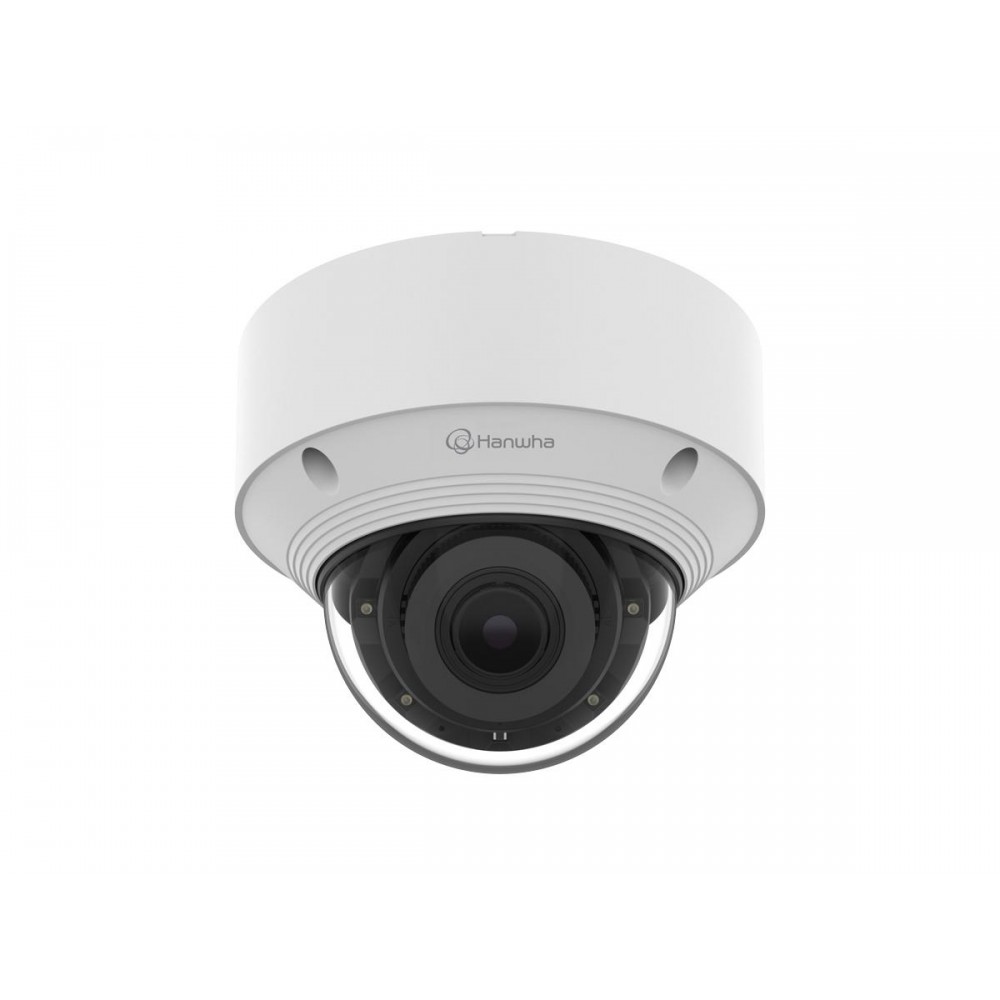

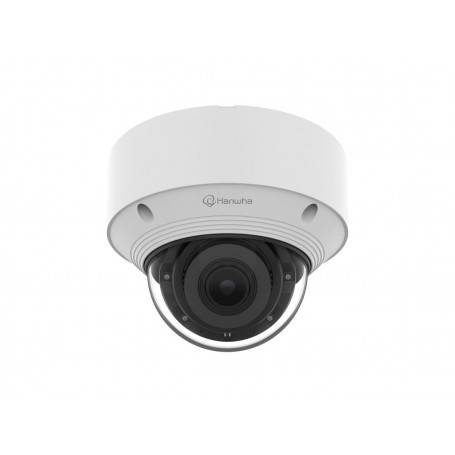

The Hanwha QNV-C8083R is a 5MP AI IR vandal dome network camera designed for professional video surveillance installations. It combines a 1/2.8-inch CMOS sensor, 3.2–10.2mm motorized varifocal lens, intelligent video analytics, IR illumination, and a rugged vandal-resistant housing for indoor and outdoor monitoring.
5MP Imaging and Varifocal Optics
The camera provides up to 2592 × 1944 resolution at up to 30fps using H.265 or H.264 compression. Its 3.2–10.2mm optical varifocal lens provides a 3.2x optical zoom range with a 95° to 29° horizontal field of view, allowing the viewing angle to be adjusted for different surveillance locations.
AI Video Analytics
Built-in AI-based video analytics support object detection and classification capabilities for surveillance applications. The camera also provides Wide Dynamic Range functionality and image-processing features intended to maintain usable video across challenging lighting conditions.
IR Night Vision and Storage
The QNV-C8083R incorporates infrared illumination for low-light and nighttime surveillance. Local recording is supported through one Micro SD/SDHC/SDXC card slot with support for cards up to 256GB. A micro USB Type-B connection is available for preview and installation when used with a compatible Wi-Fi dongle.
Network and Power
The camera uses Power over Ethernet through IEEE 802.3af Class 3, simplifying deployment by carrying power and network connectivity over a single Ethernet connection. Typical power consumption is 5.3W, with maximum consumption of 12.95W.
Rugged Vandal-Resistant Housing
The aluminum dome housing uses a hard-coated dome bubble and is rated IP66 for protection against dust and water ingress and IK10 for impact resistance. The camera operates from -30°C to +55°C and is compatible with single, double, and 4-inch octagon gang boxes.
Key Features
- 5MP imaging with resolution up to 2592 × 1944
- 3.2–10.2mm 3.2x optical varifocal lens
- AI video analytics with IR-assisted nighttime surveillance
- IEEE 802.3af Class 3 PoE with typical 5.3W power consumption
- IP66 and IK10-rated vandal-resistant aluminum dome housing
Applications
The QNV-C8083R is suited to commercial buildings, offices, retail locations, campuses, transportation facilities, and other surveillance environments requiring adjustable lens coverage and ruggedized network video monitoring.
DC Supplies Product Note
The 3.2–10.2mm varifocal lens provides substantially more framing flexibility than a fixed-lens camera, making the QNV-C8083R useful when the final viewing angle needs to be adjusted during installation.
Specifications
| Specification | Details |
|---|
| Brand | Hanwha |
| Part Number / MPN | QNV-C8083R |
| Product Type | AI IR Vandal Dome Network Camera |
| Imaging Device | 1/2.8-inch CMOS |
| Maximum Resolution | 2592 × 1944 |
| Maximum Frame Rate | 30fps with H.265/H.264 |
| Video Compression | H.265, H.264, MJPEG |
| Lens | 3.2–10.2mm varifocal |
| Optical Zoom | 3.2x |
| Horizontal Field of View | 95°–29° |
| Minimum Illumination | 0.07 lux color; 0.007 lux B/W |
| Edge Storage | 1 × Micro SD/SDHC/SDXC, up to 256GB |
| Video Output | Micro USB Type-B for preview and installation |
| Memory | 2GB RAM, 1GB Flash |
| Power | PoE IEEE 802.3af Class 3 |
| Typical Power Consumption | 5.3W |
| Maximum Power Consumption | 12.95W |
| Operating Temperature | -30°C to +55°C |
| Operating Humidity | 0–95% RH, non-condensing |
| Housing Material | Aluminum |
| Housing Color | White, RAL9003 |
| Environmental Rating | IP66 |
| Impact Rating | IK10 |
| Compatible Gang Box | Single, Double, 4-inch Octagon |
| Dimensions | Ø140 × 110.2mm |
| Weight | 875g |
FAQs
What resolution does the QNV-C8083R provide?
The camera provides up to 2592 × 1944 resolution using its 1/2.8-inch CMOS imaging sensor.
What lens does the QNV-C8083R use?
It uses a 3.2–10.2mm varifocal lens with 3.2x optical zoom and a 95°–29° horizontal field of view.
How is the camera powered?
The QNV-C8083R uses IEEE 802.3af Class 3 Power over Ethernet.
Is the QNV-C8083R suitable for outdoor installation?
Yes. Its housing carries IP66 environmental protection and IK10 impact protection, with an operating temperature range of -30°C to +55°C.
Does the camera support local recording?
Yes. One Micro SD/SDHC/SDXC slot supports cards up to 256GB.
