Overview

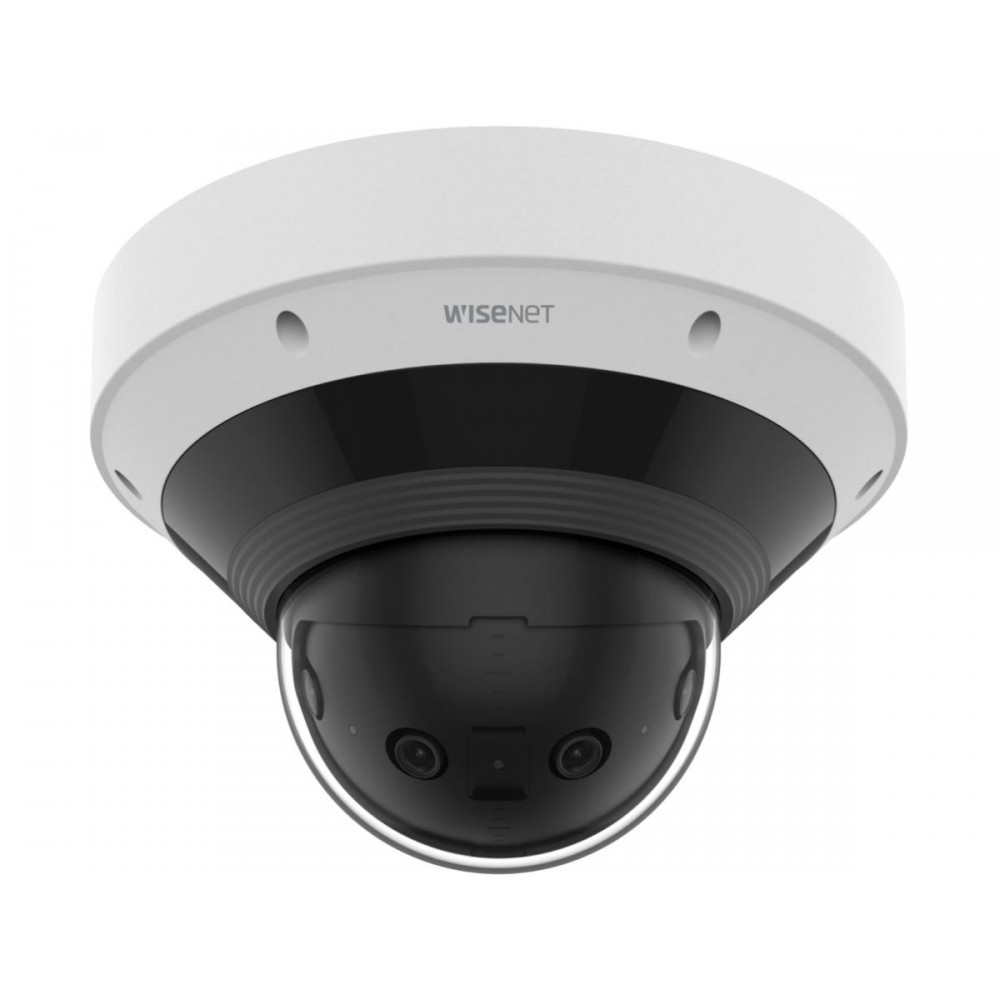

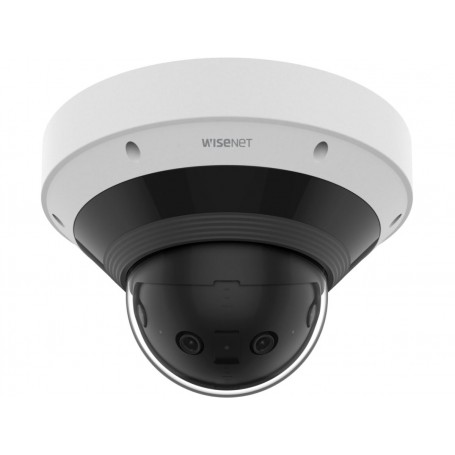

The Hanwha Vision PNM-C9022RV is an 8MP IR panoramic network camera designed to provide a wide panoramic field of view from a single camera installation. It combines four 1/2.8-inch CMOS sensors with four fixed 2.8mm lenses and panoramic image stitching to produce an ultra-wide 5120 × 1568 image.
Panoramic Imaging
The camera provides a 209° horizontal and 60° vertical field of view. Its four imaging channels are combined into a panoramic image, making the PNM-C9022RV suitable for monitoring broad areas where a conventional narrow-field camera would require multiple installation points.
Video and Image Processing
The PNM-C9022RV supports H.265, H.264, and MJPEG compression at up to 20fps. Image-processing features include 120dB wide dynamic range, Day & Night operation using an ICR filter, BLC, WDR, SSDR, and WiseNR II noise reduction. WiseStream III is also supported for bandwidth and storage optimization.
AI Analytics
AI-based analytics support person and vehicle object classification. Additional analytics include object detection, virtual line crossing and direction detection, virtual-area loitering, intrusion, enter, and exit detection, along with defocus, motion, tampering, audio, sound classification, and virtual-area appear/disappear events.
Night Vision and Protection
Integrated WiseIR illumination provides a specified IR viewing distance of up to 20 meters. The camera housing is rated IP66 for protection against dust and water ingress, IK10 for impact resistance, and NEMA 250 Type 4X for environmental protection.
Network, Power and Storage
The camera provides a 10/100/1000BASE-T Ethernet interface and supports PoE+ under IEEE 802.3at Class 4 as well as 12V DC power. Two microSD/SDHC/SDXC card slots support up to 1TB total storage using supported 512GB cards. A Micro USB Type-B port provides a 1280 × 720 installation video output.
Key Features
- 8MP panoramic imaging with 5120 × 1568 maximum resolution
- 209° horizontal and 60° vertical field of view
- Four 1/2.8-inch CMOS sensors with 2.8mm fixed lenses
- 120dB WDR and 20m WiseIR infrared illumination
- AI-based person and vehicle classification with panoramic surveillance analytics
Applications
The panoramic configuration is suited to wide-area surveillance where broad horizontal coverage is required from one mounting position. It can be deployed for monitoring large indoor or outdoor areas where panoramic visibility and centralized network connectivity are important.
DC Supplies Product Note
The PNM-C9022RV should be evaluated differently from a conventional fixed-view network camera because its primary advantage is panoramic coverage rather than a conventional single-direction field of view. The 209° horizontal viewing angle can reduce the number of camera positions required for suitable wide-area coverage, depending on the installation geometry.
Specifications
| Brand | Hanwha Vision |
|---|
| Part Number / MPN | PNM-C9022RV |
|---|
| Product Type | 8MP IR Panoramic Network Camera |
|---|
| Imaging Device | 1/2.8-inch CMOS × 4 |
|---|
| Maximum Resolution | 5120 × 1568 |
|---|
| Additional Resolutions | 3648 × 1152; 2560 × 784; 1280 × 392 |
|---|
| Maximum Frame Rate | 20fps with H.265/H.264; 20fps with MJPEG |
|---|
| Lens | 2.8mm fixed focal length × 4 |
|---|
| Maximum Aperture | F2.0 |
|---|
| Horizontal Field of View | 209° |
|---|
| Vertical Field of View | 60° |
|---|
| Minimum Object Distance | 5m (16.4ft) |
|---|
| Minimum Illumination | 0.1 lux color; 0.01 lux black and white; 0 lux with IR LED on |
|---|
| Wide Dynamic Range | 120dB |
|---|
| Video Compression | H.265, H.264, MJPEG |
|---|
| Network Interface | 10/100/1000BASE-T Ethernet |
|---|
| Power | PoE+ IEEE 802.3at Class 4; 12V DC |
|---|
| Typical Power Consumption | 11.3W |
|---|
| Maximum Power Consumption | 24.5W |
|---|
| IR Viewable Length | 20m (65.62ft) |
|---|
| Edge Storage | 2 × microSD/SDHC/SDXC; up to 1TB total |
|---|
| Installation Video Output | Micro USB Type-B, 1280 × 720 |
|---|
| Pan Range | 0°–360° |
|---|
| Tilt Range | 0°–65° |
|---|
| Operating Temperature | -40°C to +55°C |
|---|
| Operating Humidity | 0–95% RH, non-condensing |
|---|
| Environmental Protection | IP66, IK10, NEMA 250 Type 4X |
|---|
| Dimensions | 253 × 170mm |
|---|
| Weight | 2,900g |
|---|
FAQs
What type of camera is the PNM-C9022RV?
The PNM-C9022RV is an 8MP panoramic network camera using four 1/2.8-inch CMOS sensors and four fixed 2.8mm lenses.
What is the panoramic field of view?
The camera provides a 209° horizontal and 60° vertical field of view.
Does the PNM-C9022RV support night vision?
Yes. Integrated WiseIR illumination provides a specified IR viewing distance of up to 20 meters.
How is the camera powered?
The camera supports PoE+ under IEEE 802.3at Class 4 and 12V DC power.
Does it support local recording?
Yes. The camera has two microSD/SDHC/SDXC slots with a combined maximum supported capacity of 1TB.
What environmental protection does it provide?
The camera is rated IP66, IK10, and NEMA 250 Type 4X for outdoor environmental and impact protection.
