Overview

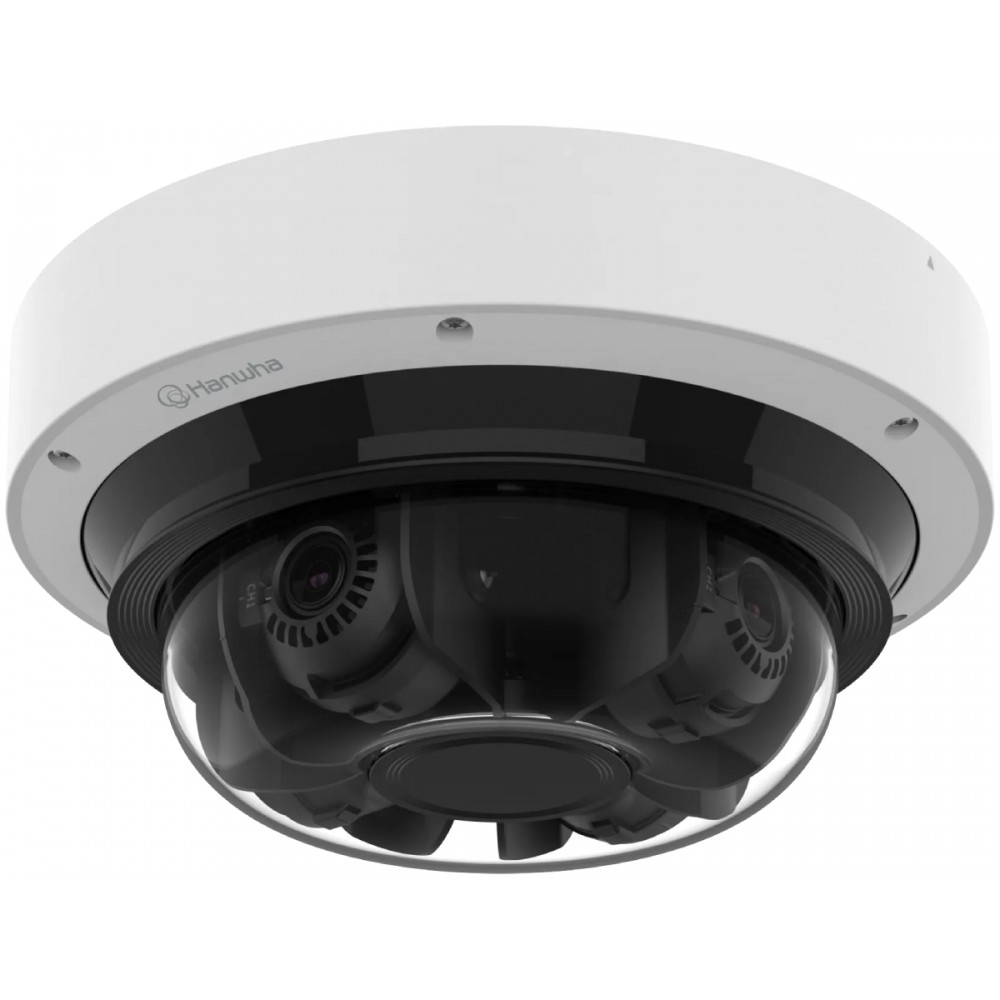

The Hanwha Vision PNM-C32083RVQ is a four-channel AI multi-directional network camera designed for surveillance locations requiring multiple independently adjustable viewing directions. It combines four 1/2.8-inch CMOS sensors, 4K resolution per channel, motorized varifocal lenses, infrared illumination, AI-based analytics, and Ethernet connectivity with PoE+ or PoE++ power.
Imaging and Lens System
Each of the four channels supports up to 3840 × 2160 resolution. Each channel uses a 3.3–5.7mm motorized varifocal lens with 1.7x optical zoom, providing a horizontal field of view from 109° wide to 56° telephoto. The camera provides independent pan, tilt, and rotation adjustment for each channel.
AI and Video Processing
The PNM-C32083RVQ provides AI-based analytics for classified objects including people and vehicles, with vehicle attribute classification for car, bus, truck, motorcycle, and bicycle types. The camera also supports AI-based loitering and line-crossing detection, BestShot, WiseNR II, WiseStream III, and per-channel hallway view.
Night Vision and Outdoor Protection
Integrated infrared illumination supports night-time monitoring, with the specified IR range reaching up to 15 meters using PoE+ and up to 20 meters using PoE++. The housing is rated IP66 for ingress protection, IK10 for impact resistance, and NEMA 4X for environmental protection.
Network and Storage
The camera uses Gigabit Ethernet for network connectivity and supports PoE+ IEEE 802.3at Class 4 and PoE++ IEEE 802.3bt Type 3 Class 6 power. Local recording is supported through two microSD/SDHC/SDXC slots, with up to 1TB total capacity using supported cards. Video compression includes H.265, H.264, and MJPEG.
Key Features
- Four 8MP 4K camera channels for 32MP total imaging capability
- Motorized 3.3–5.7mm varifocal lenses with 1.7x optical zoom
- AI-based person and vehicle classification with additional vehicle attributes
- 120dB WDR with WiseNR II and WiseStream III processing
- IP66, IK10, and NEMA 4X protection for outdoor deployment
Applications
The four-channel architecture is suited to surveillance points where several directions need to be monitored from one camera position. Independent positioning of each channel allows the camera to be configured for different coverage areas within the same installation.
DC Supplies Product Note
The PNM-C32083RVQ combines four 4K channels with motorized varifocal adjustment, so it can provide higher-resolution multi-directional coverage while allowing each viewing channel to be configured independently. Power planning should account for the selected PoE standard because the specified maximum consumption differs between PoE+ and PoE++ operation.
Specifications
| Brand | Hanwha Vision |
|---|
| Part Number / MPN | PNM-C32083RVQ |
|---|
| Product Type | 4-Channel AI IR Multi-Directional Network Camera |
|---|
| Imaging Device | 1/2.8-inch CMOS × 4 channels |
|---|
| Total Resolution | 32MP |
|---|
| Maximum Resolution per Channel | 3840 × 2160 |
|---|
| Maximum Frame Rate | 15 fps with AI enabled; up to 20 fps with AI disabled |
|---|
| Lens | 3.3–5.7mm motorized varifocal, 1.7x optical zoom |
|---|
| Maximum Aperture | F1.5 wide / F1.9 tele |
|---|
| Horizontal Field of View | 109° wide / 56° tele |
|---|
| Vertical Field of View | 55° wide / 31° tele |
|---|
| Diagonal Field of View | 136° wide / 65° tele |
|---|
| Minimum Illumination | 0.1 lux color; 0.01 lux black and white; 0 lux with IR LED on |
|---|
| Wide Dynamic Range | 120dB |
|---|
| Video Compression | H.265, H.264, MJPEG |
|---|
| Network Interface | 10/100/1000BASE-T Gigabit Ethernet |
|---|
| Power | PoE+ IEEE 802.3at Class 4; PoE++ IEEE 802.3bt Type 3 Class 6 |
|---|
| Power Consumption | PoE+: maximum 25.5W; PoE++: maximum 30W; typical 22W |
|---|
| Edge Storage | 2 × microSD/SDHC/SDXC slots; up to 1TB total |
|---|
| Pan Range | 0°–360° |
|---|
| Tilt Range | 0°–65° |
|---|
| Rotation Range | 0°–90° |
|---|
| Operating Temperature | -40°C to +55°C |
|---|
| Operating Humidity | 0–95% RH, non-condensing |
|---|
| Environmental Protection | IP66, IK10, NEMA 4X |
|---|
| Material | Aluminum with hard-coated dome |
|---|
| Color | White, RAL 9003 |
|---|
| Dimensions | 250mm diameter × 114.2mm height |
|---|
| Weight | 2,820g (6.22 lb) |
|---|
FAQs
How many camera channels does the PNM-C32083RVQ provide?
The camera provides four independent channels, with each channel supporting up to 3840 × 2160 resolution.
What type of lenses does the camera use?
Each channel uses a 3.3–5.7mm motorized varifocal lens with 1.7x optical zoom.
Does the PNM-C32083RVQ support infrared night vision?
Yes. Integrated IR illumination provides up to 15 meters of specified range with PoE+ and up to 20 meters with PoE++.
What power options are supported?
The camera supports PoE+ IEEE 802.3at Class 4 and PoE++ IEEE 802.3bt Type 3 Class 6.
Can each camera channel be positioned independently?
Yes. Each channel supports pan, tilt, and rotation adjustment, allowing the four imaging directions to be configured for the installation.
Does the camera support local storage?
Yes. Two microSD/SDHC/SDXC slots support up to 1TB total capacity using supported storage media.
