Overview

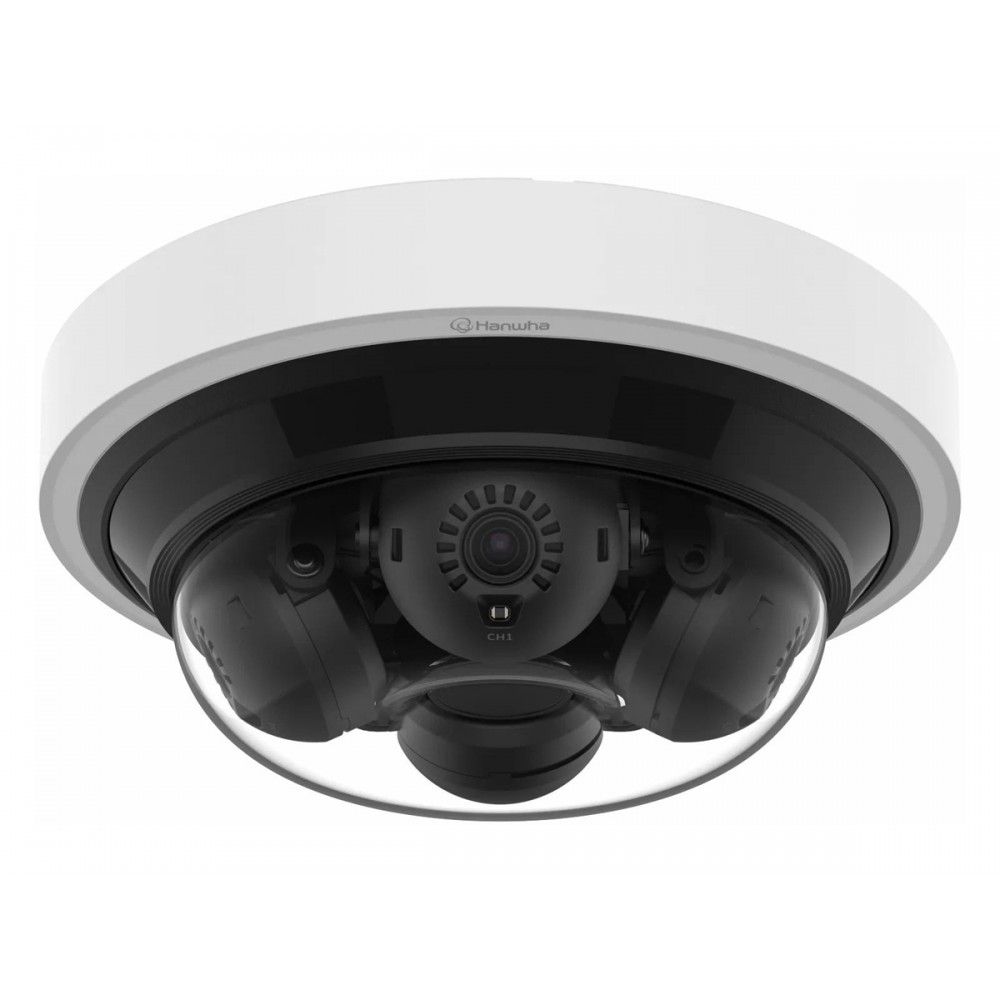

The Hanwha PNM-C16013RVQ is a 4-channel mini AI multi-directional network camera designed to provide coverage in multiple directions from a single compact camera housing. Each channel uses a 1/2.8-inch CMOS sensor with a fixed 3.19mm lens and supports up to 2592 × 1520 resolution at 15 fps.
Key Features
- Four independent 4MP imaging channels
- 3.19mm fixed lenses with 97° horizontal field of view
- 120dB WDR and AI-based WiseNR II
- 20m IR illumination with WiseIR
- IP66, IK09, and NEMA 4X protection
Technical Information
Each channel uses a 1/2.8-inch CMOS sensor and 3.19mm F1.2 fixed lens. The lens provides a 97° horizontal, 54° vertical, and 116° diagonal field of view. Each camera channel can be independently positioned with 0–360° pan, 0–75° tilt, and 0–90° rotation adjustment ranges.
The camera supports H.265, H.264, and MJPEG compression. H.265 and H.264 support up to 15 fps at 4MP, while MJPEG supports up to 15 fps with a maximum of 5 fps at 4MP. Image functions include 120dB WDR, BLC, SSDR, SSNR V, WiseNR II, defog, and Auto ICR day/night operation.
AI Analytics
The PNM-C16013RVQ supports AI-based classified object detection for people, faces, vehicles, and license plates. AI analytics also include loitering and line-crossing detection. WiseStream III and AI-based image processing help optimize video encoding and image quality.
Network and Storage
The camera provides Gigabit Ethernet connectivity and supports ONVIF Profile S/T/M, SUNAPI, IPv4/IPv6, HTTPS, SNMP, and IEEE 802.1X authentication. Dual Micro SD/SDHC/SDXC card slots support local storage, with capacities up to 512GB per card according to the product documentation.
Power and Environmental Characteristics
The PNM-C16013RVQ uses PoE+ compliant with IEEE 802.3at. Maximum power consumption is 23.5W. The specified operating temperature range is -40°C to +55°C with up to 95% relative humidity, non-condensing.
Applications
The four-channel design is suited to indoor and outdoor surveillance locations requiring coverage of several directions from one mounting point. Applications include retail environments, schools, hospitals, entrances, corridors, commercial facilities, and perimeter monitoring.
DC Supplies Product Note
For deployment planning, verify that the PoE+ switch or injector can provide the camera's 23.5W maximum power requirement and confirm the mounting position provides the required coverage for all four channels.
Specifications
| Brand | Hanwha Vision |
|---|
| Part Number / MPN | PNM-C16013RVQ |
|---|
| Product Type | 4-Channel AI Multi-Directional IP Camera |
|---|
| Imaging Device | 1/2.8-inch CMOS × 4 |
|---|
| Resolution | 2592 × 1520 per channel |
|---|
| Maximum Frame Rate | 15 fps |
|---|
| Lens | 3.19mm fixed focal length |
|---|
| Maximum Aperture | F1.2 |
|---|
| Horizontal Field of View | 97° |
|---|
| Vertical Field of View | 54° |
|---|
| Diagonal Field of View | 116° |
|---|
| Minimum Object Distance | 2m |
|---|
| Wide Dynamic Range | 120dB |
|---|
| Video Compression | H.265, H.264, MJPEG |
|---|
| IR Viewable Length | 20m |
|---|
| Pan / Tilt / Rotate | 0–360° / 0–75° / 0–90° |
|---|
| Network Interface | 10/100/1000BASE-T |
|---|
| Storage | 2 × Micro SD/SDHC/SDXC |
|---|
| Power | PoE+ IEEE 802.3at |
|---|
| Maximum Power Consumption | 23.5W |
|---|
| Operating Temperature | -40°C to +55°C |
|---|
| Protection Rating | IP66, IK09, NEMA 4X |
|---|
| Security | TPM 2.0, FIPS 140-2 |
|---|
FAQs
How many channels does the PNM-C16013RVQ have?
The PNM-C16013RVQ has four independent imaging channels, each using a 4MP CMOS sensor.
What resolution does the PNM-C16013RVQ support?
Each channel supports up to 2592 × 1520 resolution at up to 15 fps.
What lens does the PNM-C16013RVQ use?
Each channel uses a 3.19mm F1.2 fixed lens with a 97° horizontal field of view.
Does the PNM-C16013RVQ support AI analytics?
Yes. It supports AI-based classified object detection for people, faces, vehicles, and license plates, along with loitering and line-crossing detection.
Does the PNM-C16013RVQ have infrared illumination?
Yes. The camera provides IR illumination with a specified viewable length of up to 20m.
How is the PNM-C16013RVQ powered?
The camera uses PoE+ compliant with IEEE 802.3at and has a maximum specified power consumption of 23.5W.
