Overview

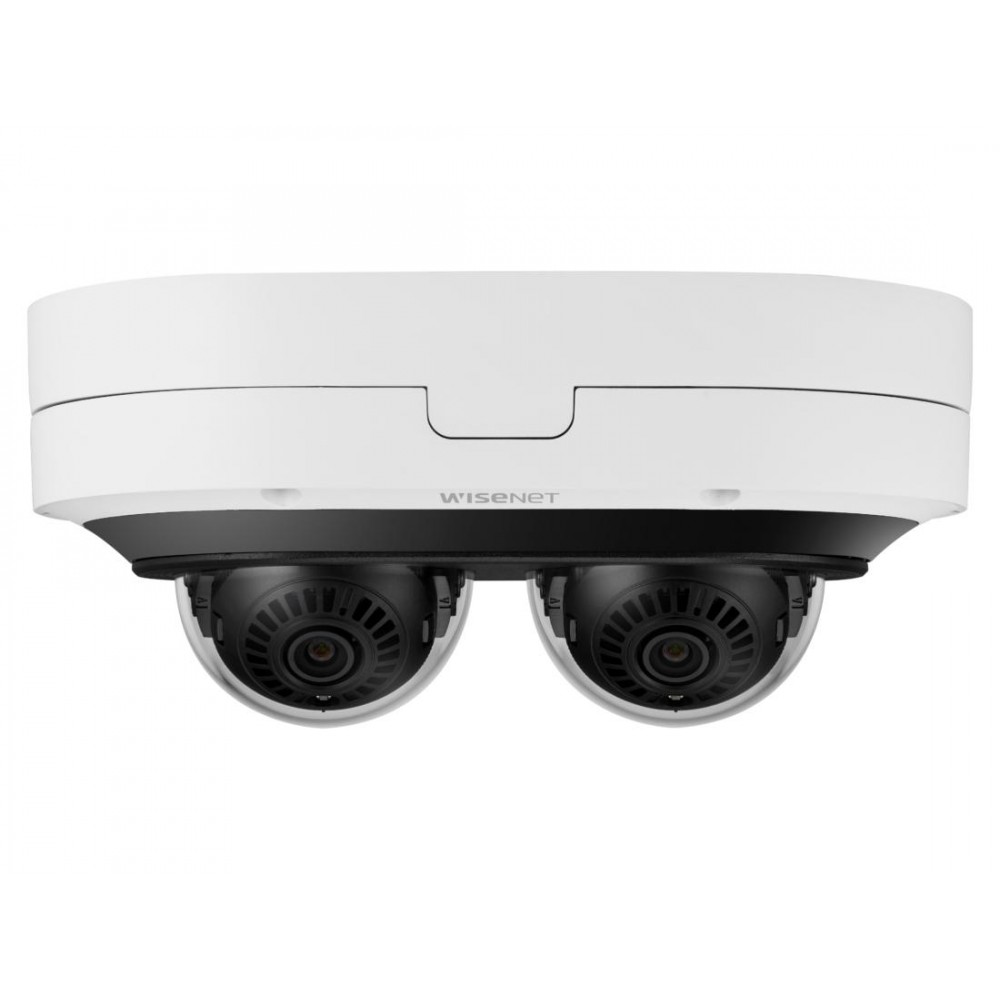

The Hanwha PNM-C12083RVD is a 6MP × 2CH AI multi-directional network camera designed to provide two independent viewing channels from a single camera installation. Each channel uses a 1/2.8-inch CMOS sensor and supports up to 3328 × 1872 resolution at 15 fps.
The camera combines 3.54–6.69mm motorized varifocal lenses with 120dB extremeWDR, WiseNR II, WiseStream III, and integrated infrared illumination. Its outdoor-rated aluminum housing provides IP66, IP67, IK10, and NEMA 4X protection.
Key Features
- Two 6MP imaging channels with maximum 3328 × 1872 resolution
- 3.54–6.69mm 1.9x motorized varifocal lenses
- 120dB extremeWDR with WiseNR II and WiseStream III
- AI-based object classification for people, faces, vehicles, and license plates
- IR illumination with up to 25m viewable length
Technical Information
Each channel uses a 1/2.8-inch CMOS sensor with a 3.54–6.69mm motorized varifocal lens. The lens provides a horizontal field of view from 96° wide to 47° telephoto and a vertical field of view from 51° to 26°.
The PNM-C12083RVD supports H.265, H.264, and MJPEG video compression at up to 15 fps. Imaging functions include 120dB WDR, BLC, SSDR, WiseNR II, SSNR V, defog, and Auto ICR day/night operation.
AI Analytics
The camera uses an AI engine for classified object detection, including people, faces, vehicles, and license plates. Vehicle attributes include car, bus, truck, motorcycle, and bicycle classification. The camera also supports BestShot functionality.
Network and Storage
The PNM-C12083RVD provides 10/100/1000BASE-T Ethernet connectivity and supports ONVIF Profile S and T, SUNAPI, IPv4/IPv6, HTTPS, SNMP, and IEEE 802.1X authentication. A Micro SD/SDHC/SDXC slot supports up to 512GB of local storage.
Power and Environmental Characteristics
The camera is powered through PoE+ using IEEE 802.3at Class 4. Maximum power consumption is 21W, with typical consumption of 16.5W. The operating temperature range is -40°C to +55°C with 0–95% relative humidity, non-condensing.
Applications
The dual-channel design is suited to surveillance deployments requiring coverage of multiple directions from one mounting location. Applications include building entrances, perimeters, parking areas, industrial facilities, campuses, and other outdoor areas requiring flexible multi-directional monitoring.
DC Supplies Product Note
For deployment planning, verify that the PoE+ infrastructure can provide the camera's 21W maximum power requirement and confirm that the selected mounting configuration provides the required viewing angles for both channels.
Specifications
| Brand | Hanwha Vision |
|---|
| Part Number / MPN | PNM-C12083RVD |
|---|
| Product Type | Multi-Directional IP Camera |
|---|
| Imaging Device | 1/2.8-inch CMOS × 2CH |
|---|
| Maximum Resolution | 3328 × 1872 |
|---|
| Maximum Frame Rate | 15 fps at 6MP |
|---|
| Lens | 3.54–6.69mm motorized varifocal |
|---|
| Optical Zoom | 1.9x |
|---|
| Maximum Aperture | F1.67 wide to F2.64 tele |
|---|
| Horizontal Field of View | 96° wide to 47° tele |
|---|
| Vertical Field of View | 51° wide to 26° tele |
|---|
| Minimum Object Distance | 1.5m |
|---|
| Wide Dynamic Range | 120dB extremeWDR |
|---|
| Video Compression | H.265, H.264, MJPEG |
|---|
| IR Viewable Length | Up to 25m |
|---|
| Ethernet | 10/100/1000BASE-T |
|---|
| Edge Storage | Micro SD/SDHC/SDXC, up to 512GB |
|---|
| Power | PoE+ IEEE 802.3at Class 4 |
|---|
| Maximum Power Consumption | 21W |
|---|
| Typical Power Consumption | 16.5W |
|---|
| Operating Temperature | -40°C to +55°C |
|---|
| Protection Rating | IP66, IP67, IK10, NEMA 4X |
|---|
| Security | TPM 2.0, FIPS 140-2 |
|---|
FAQs
How many imaging channels does the PNM-C12083RVD have?
The camera has two independent 6MP imaging channels, allowing multiple viewing directions from one camera assembly.
What resolution does the PNM-C12083RVD support?
Each channel supports a maximum resolution of 3328 × 1872 pixels at up to 15 fps.
What lens does the PNM-C12083RVD use?
Each channel uses a 3.54–6.69mm 1.9x motorized varifocal lens.
Does the PNM-C12083RVD support AI analytics?
Yes. Its AI engine supports classified detection of people, faces, vehicles, and license plates, along with vehicle attribute classification.
Does the PNM-C12083RVD have infrared illumination?
Yes. The camera includes 850nm IR LEDs with a viewable length of up to 25m depending on scene conditions.
How is the PNM-C12083RVD powered?
The camera uses PoE+ compliant with IEEE 802.3at Class 4 and has a maximum specified power consumption of 21W.
