Overview

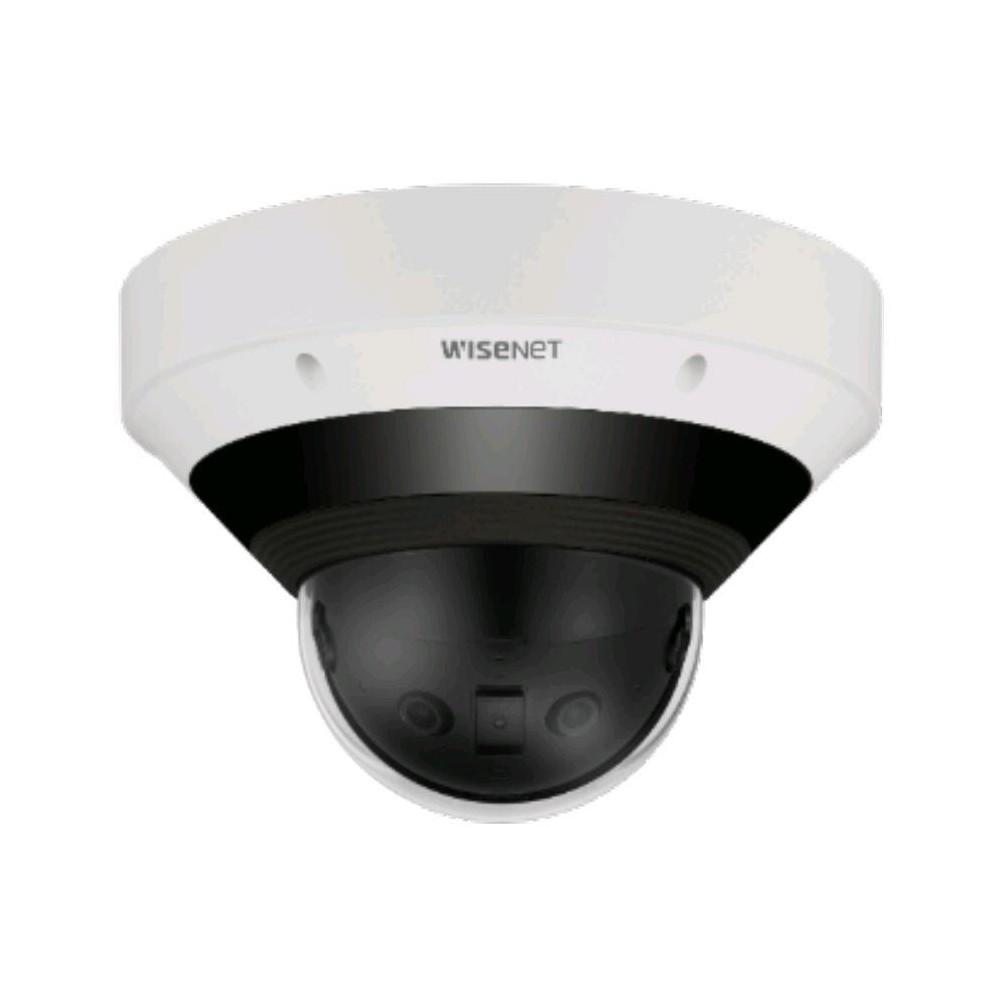

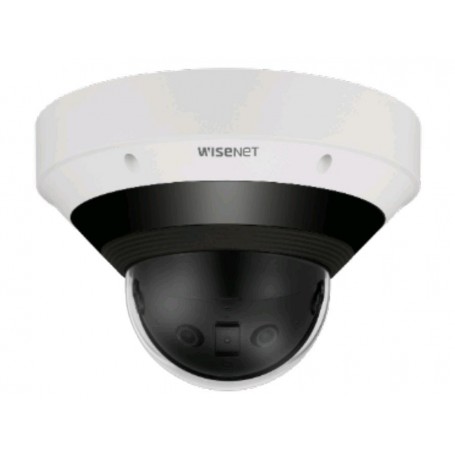

The Hanwha PNM-9031RV is a 15MP panoramic network camera designed to provide wide-area surveillance through four 5MP CMOS sensors and a stitched panoramic image. Its fixed 4.3mm lenses provide a panoramic horizontal field of view of up to 197°, while integrated WiseIR illumination supports low-light and nighttime monitoring.
Key Features
- 15MP panoramic imaging using four 5MP CMOS sensors
- Up to 6720 × 2240 panoramic resolution
- 192° panoramic stitched image with up to 197° horizontal field of view
- 20m IR viewable length with WiseIR
- 120dB WDR with H.265/H.264 and WiseStream II support
Technical Information
The PNM-9031RV uses four 1/2.8-inch 5MP CMOS sensors with fixed 4.3mm F1.6 lenses. The camera supports panoramic resolutions including 6720 × 2240, 5952 × 1984, and 4992 × 1664. H.265 and H.264 support up to 20 fps at 15MP, while MJPEG supports up to 15 fps.
The camera provides 120dB WDR, SSNR V digital noise reduction, BLC, SSDR, Auto ICR day/night operation, and WiseStream II compression. Analytics include motion detection, defocus detection, virtual line, enter/exit, appear/disappear, tampering, audio detection, and heatmap functionality.
Network and Storage
Network connectivity is provided through a metal-shielded RJ-45 Gigabit Ethernet interface supporting 10/100/1000BASE-T. The camera supports ONVIF Profile S/G/T and SUNAPI, along with IPv4/IPv6 networking, HTTPS, SNMP, 802.1X authentication, and other network protocols.
Two Micro SD/SDHC/SDXC card slots provide local storage support up to 512GB total, using two cards of up to 256GB each. SD card encryption is supported.
Power and Environmental Characteristics
The PNM-9031RV supports PoE+ using IEEE 802.3at Class 4 as well as 12VDC input. Maximum PoE+ power consumption is 23.5W, with typical consumption of 18W. The camera is rated IP66, IK10, and NEMA 4X for outdoor deployment.
Applications
The panoramic configuration is suited to installations requiring broad-area coverage from a single camera location. It can be deployed for perimeter monitoring, building exteriors, entrances, parking areas, industrial facilities, and other environments where wide horizontal coverage is required.
DC Supplies Product Note
For installation planning, verify that the PoE+ infrastructure can provide the camera's maximum 23.5W power requirement and allow sufficient mounting clearance for the 253mm diameter housing.
Specifications
| Brand | Hanwha Vision |
|---|
| Part Number / MPN | PNM-9031RV |
|---|
| Product Type | Panoramic IP Camera |
|---|
| Imaging Device | 1/2.8-inch 5MP CMOS × 4 |
|---|
| Maximum Resolution | 6720 × 2240 |
|---|
| Maximum Frame Rate | 20 fps at 15MP |
|---|
| Lens | 4.3mm fixed |
|---|
| Maximum Aperture | F1.6 |
|---|
| Horizontal Field of View | Up to 197° |
|---|
| Vertical Field of View | 63.6° |
|---|
| Minimum Object Distance | 5m |
|---|
| Wide Dynamic Range | 120dB |
|---|
| IR Viewable Length | 20m |
|---|
| Video Compression | H.265, H.264, MJPEG |
|---|
| Smart Codec | WiseStream II |
|---|
| Ethernet | 10/100/1000BASE-T |
|---|
| Edge Storage | 2 × Micro SD/SDHC/SDXC, up to 256GB each |
|---|
| Power | PoE+ IEEE 802.3at Class 4, 12VDC |
|---|
| Maximum PoE+ Power Consumption | 23.5W |
|---|
| Typical PoE+ Power Consumption | 18W |
|---|
| Operating Temperature | -40°C to +55°C |
|---|
| Protection Rating | IP66, IK10, NEMA 4X |
|---|
| Material | Aluminum |
|---|
| Color | White, RAL9003 |
|---|
FAQs
What resolution does the PNM-9031RV provide?
The camera supports a maximum panoramic resolution of 6720 × 2240, providing 15MP imaging from four 5MP sensors.
How many image sensors are used in the PNM-9031RV?
The camera uses four 1/2.8-inch 5MP CMOS sensors combined into a panoramic imaging system.
What is the viewing angle of the PNM-9031RV?
The camera provides a panoramic horizontal field of view of up to 197°, with the stitched panoramic image covering approximately 192°.
Does the PNM-9031RV support night vision?
Yes. The camera includes WiseIR infrared illumination with a specified viewable length of up to 20m.
How is the PNM-9031RV powered?
The camera supports PoE+ using IEEE 802.3at Class 4 and also supports 12VDC input.
What outdoor protection does the PNM-9031RV provide?
The camera is rated IP66 for ingress protection, IK10 for impact resistance, and NEMA 4X for outdoor environmental protection.
