Overview

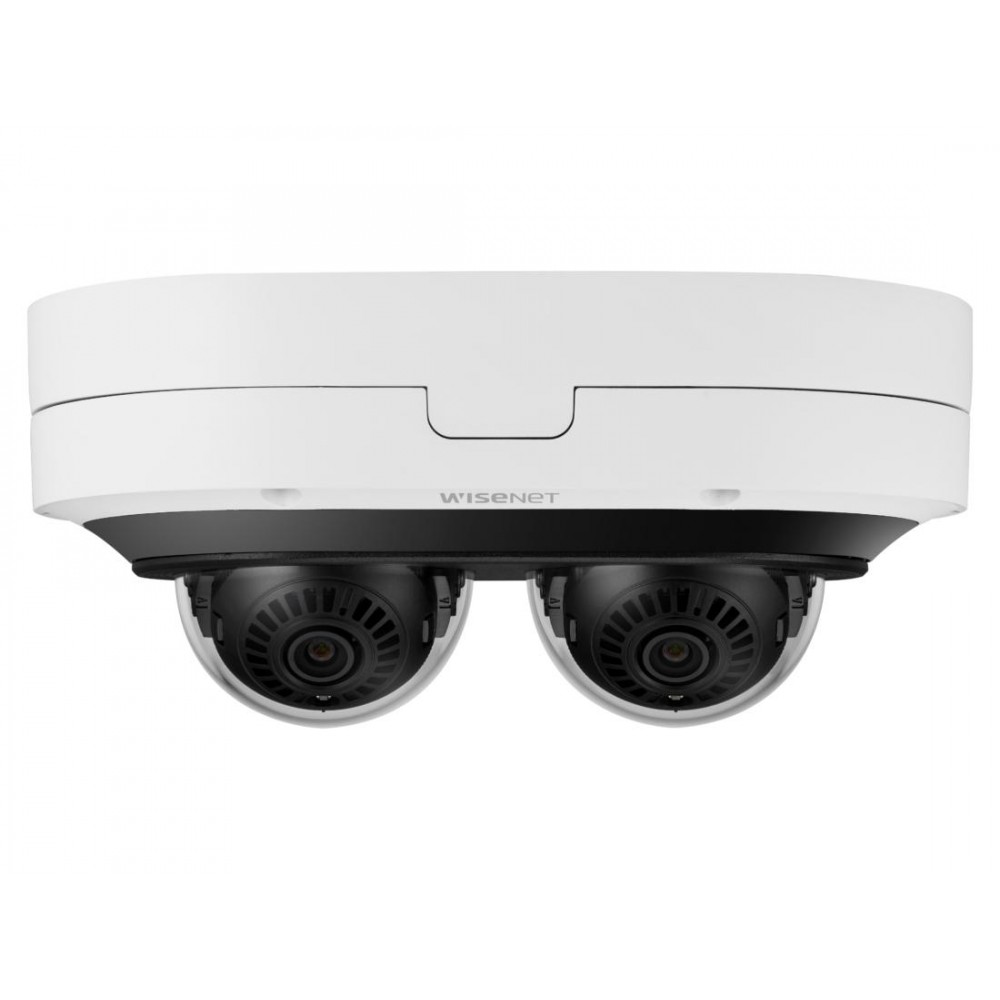

The Hanwha PNM-12082RVD is a multi-directional network camera featuring two 6MP imaging channels for monitoring multiple viewing areas from a single camera installation. Each channel uses a 1/2.8-inch CMOS sensor and supports up to 3328 × 1872 resolution at 15 fps.
The camera combines 3.54–6.69mm motorized varifocal lenses with 120dB extremeWDR, WiseNR, WiseStream II, and integrated infrared illumination. Its outdoor-rated aluminum enclosure provides IP66, IP67, IK10, and NEMA 4X protection.
Key Features
- Two 6MP imaging channels with up to 3328 × 1872 resolution
- 3.54–6.69mm 1.9x motorized varifocal lenses
- 120dB extremeWDR for high-contrast lighting conditions
- IR illumination with up to 25m viewable length
- IP66, IP67, IK10, and NEMA 4X environmental protection
Technical Information
Each camera channel uses a 1/2.8-inch CMOS sensor with a 3.54–6.69mm motorized varifocal lens. The lens provides a horizontal field of view from 96° at wide angle to 47° at telephoto, with a 1.9x optical zoom ratio.
The PNM-12082RVD supports H.265, H.264, and MJPEG video compression. H.265 and H.264 support 6MP operation at up to 15 fps. Image functions include extremeWDR, WiseNR, SSNR V, defog, BLC, HLC, SSDR, motion detection, privacy masking, and electronic image adjustment.
Network and Storage
The camera provides 10/100/1000BASE-T Ethernet connectivity and supports ONVIF Profile S and T, SUNAPI, IPv4/IPv6 networking, HTTPS, SRTP, SNMP, and IEEE 802.1X authentication. A Micro SD/SDHC/SDXC slot supports up to 512GB of local storage.
Power and Environmental Characteristics
The PNM-12082RVD is powered through PoE+ using IEEE 802.3at Class 4. Maximum power consumption is 18.3W and typical consumption is 13.5W. The specified operating temperature range is -40°C to +55°C with humidity below 95% RH, non-condensing.
Applications
The dual-channel design is suitable for surveillance installations requiring coverage of multiple directions from one mounting location. Typical applications include building entrances, perimeter monitoring, parking areas, outdoor facilities, and other locations requiring multi-directional video coverage.
DC Supplies Product Note
For deployment planning, verify that the PoE+ infrastructure can provide the camera's 18.3W maximum power requirement and confirm that the selected mounting configuration provides the required viewing angles.
Specifications
| Brand | Hanwha Vision |
|---|
| Part Number / MPN | PNM-12082RVD |
|---|
| Product Type | Multi-Directional IP Camera |
|---|
| Imaging Device | 1/2.8-inch CMOS × 2CH |
|---|
| Maximum Resolution | 3328 × 1872 |
|---|
| Maximum Frame Rate | 15 fps at 6MP |
|---|
| Lens | 3.54–6.69mm motorized varifocal |
|---|
| Optical Zoom | 1.9x |
|---|
| Maximum Aperture | F1.67 wide to F2.64 tele |
|---|
| Horizontal Field of View | 96° wide to 47° tele |
|---|
| Vertical Field of View | 51° wide to 26° tele |
|---|
| Minimum Object Distance | 1.5m |
|---|
| Wide Dynamic Range | 120dB extremeWDR |
|---|
| Video Compression | H.265, H.264, MJPEG |
|---|
| IR Viewable Length | Up to 25m |
|---|
| Ethernet | 10/100/1000BASE-T |
|---|
| Edge Storage | Micro SD/SDHC/SDXC, up to 512GB |
|---|
| Power | PoE+ IEEE 802.3at Class 4 |
|---|
| Maximum Power Consumption | 18.3W |
|---|
| Typical Power Consumption | 13.5W |
|---|
| Operating Temperature | -40°C to +55°C |
|---|
| Protection Rating | IP66, IP67, IK10, NEMA 4X |
|---|
FAQs
How many imaging channels does the PNM-12082RVD have?
The camera has two independent 6MP imaging channels, allowing multiple viewing areas to be monitored from one camera assembly.
What resolution does the PNM-12082RVD support?
Each channel supports a maximum resolution of 3328 × 1872 pixels at up to 15 fps.
What lens does the PNM-12082RVD use?
Each channel uses a 3.54–6.69mm 1.9x motorized varifocal lens with a 96° to 47° horizontal field of view.
Does the PNM-12082RVD support infrared night vision?
Yes. The camera includes IR illumination with a specified viewable length of up to 25m, depending on scene conditions.
How is the PNM-12082RVD powered?
The camera uses PoE+ compliant with IEEE 802.3at Class 4 and has a maximum specified power consumption of 18.3W.
Is the PNM-12082RVD suitable for outdoor installation?
Yes. The camera is rated IP66, IP67, IK10, and NEMA 4X and is specified for operation from -40°C to +55°C.
