Ubiquiti UACC-G5-PTZ-PM – UniFi G6/G5 PTZ Pendant Mount
Overview

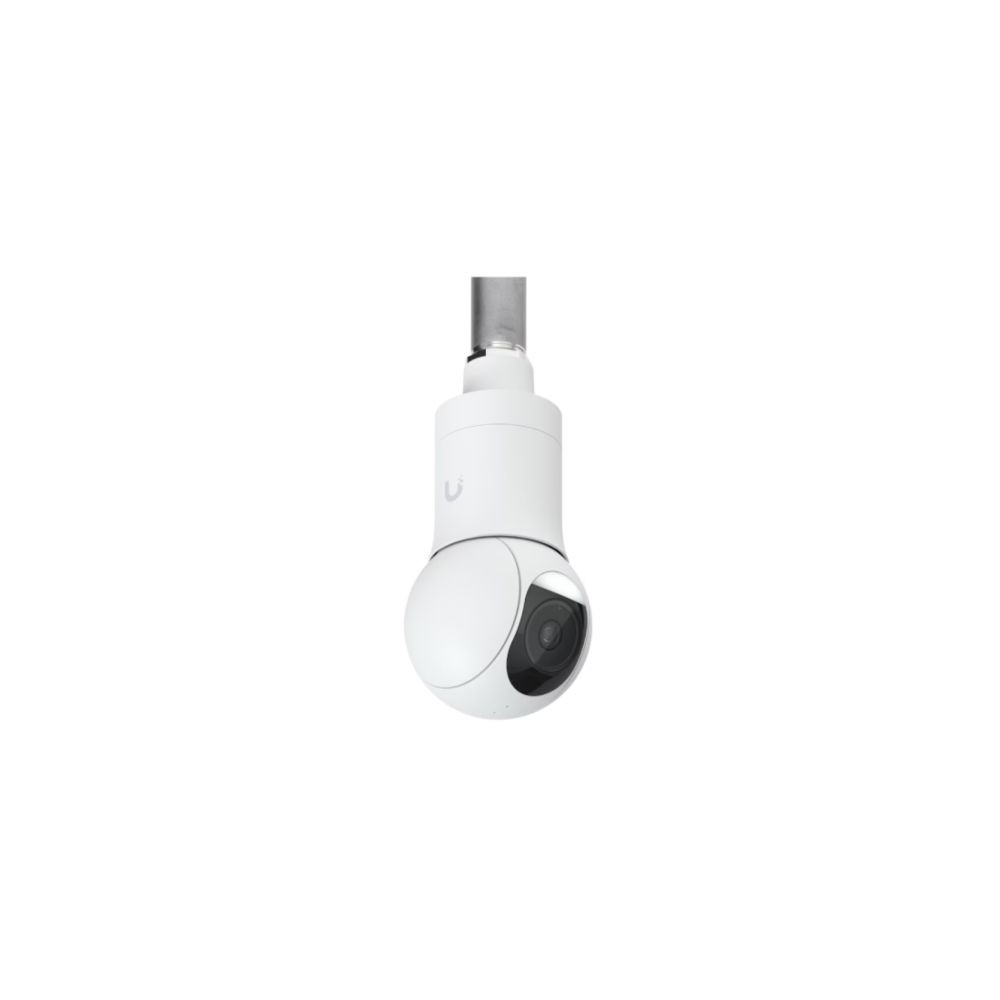

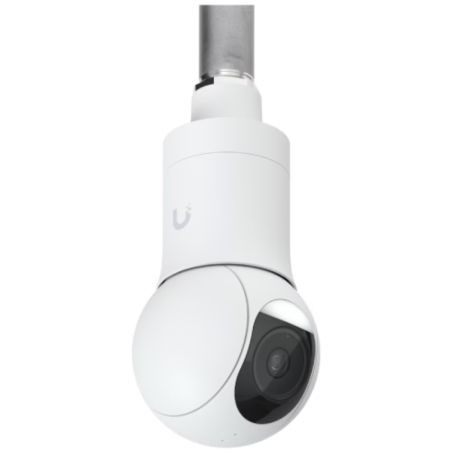

The Ubiquiti UACC-G5-PTZ-PM is a pendant mounting accessory for UniFi G5 PTZ and G6 PTZ cameras. It provides a fixed pendant installation point with a G3/4-inch threaded outlet for conduit connection.
The mount uses a polycarbonate enclosure and mounting structure and is specified for indoor and outdoor installation. Its weatherproof enclosure supports exposed outdoor camera mounting when installed according to Ubiquiti requirements.
Technical Information
The UACC-G5-PTZ-PM provides a dedicated pendant mounting interface for compatible PTZ cameras. The G3/4-inch threaded outlet provides the conduit connection required for the pendant installation. The mount has a compact 61 mm diameter and 43.4 mm overall height and weighs 32 g.
Compatibility
This mount is compatible with Ubiquiti UVC-G5-PTZ and UVC-G6-PTZ cameras. It is intended specifically for pendant mounting and does not provide adjustable positioning.
Key Features
- Compatible with UniFi G5 PTZ and G6 PTZ cameras
- G3/4-inch threaded conduit outlet
- Polycarbonate enclosure and mounting material
- Indoor and outdoor installation support
- Fixed pendant mounting configuration
Applications
The UACC-G5-PTZ-PM is intended for ceiling or overhead pendant installations where a compatible UniFi PTZ camera needs to be suspended from a conduit-supported mounting point. It is suitable for surveillance deployments using UVC-G5-PTZ or UVC-G6-PTZ cameras.
DC Supplies Product Note
For a pendant PTZ installation, verify the available conduit connection and mounting location before deployment. This model provides the pendant mount interface; the compatible PTZ camera is a separate product.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-G5-PTZ-PM |
| Product Type | G6/G5 PTZ Pendant Mount |
| Compatibility | UVC-G5-PTZ; UVC-G6-PTZ |
| Mounting Type | Pendant |
| Threaded Outlet | G3/4" |
| Enclosure Material | Polycarbonate |
| Mounting Material | Polycarbonate |
| Adjustments | Fixed |
| Environmental Installation | Indoor and outdoor |
| Dimensions | Ø61 × 43.4 mm |
| Weight | 32 g |
FAQs
Which cameras are compatible with the UACC-G5-PTZ-PM?
The mount is compatible with the Ubiquiti UVC-G5-PTZ and UVC-G6-PTZ cameras.
What conduit connection does this pendant mount use?
The mount provides a G3/4-inch threaded outlet for the conduit connection.
Is the UACC-G5-PTZ-PM suitable for outdoor installation?
Yes. Ubiquiti specifies the mount for indoor and outdoor use and describes the enclosure as weatherproof.
Is the mounting position adjustable?
No. The UACC-G5-PTZ-PM is a fixed pendant mount.
What material is the mount made from?
The enclosure and mounting material are polycarbonate.
