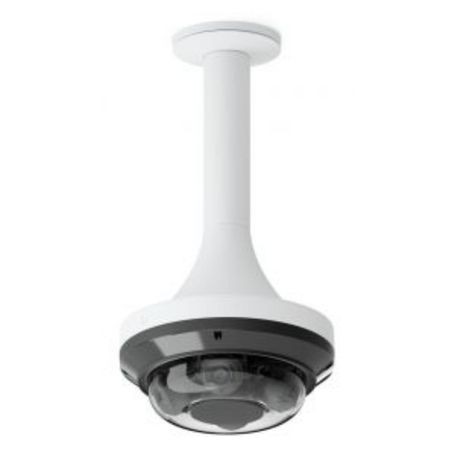

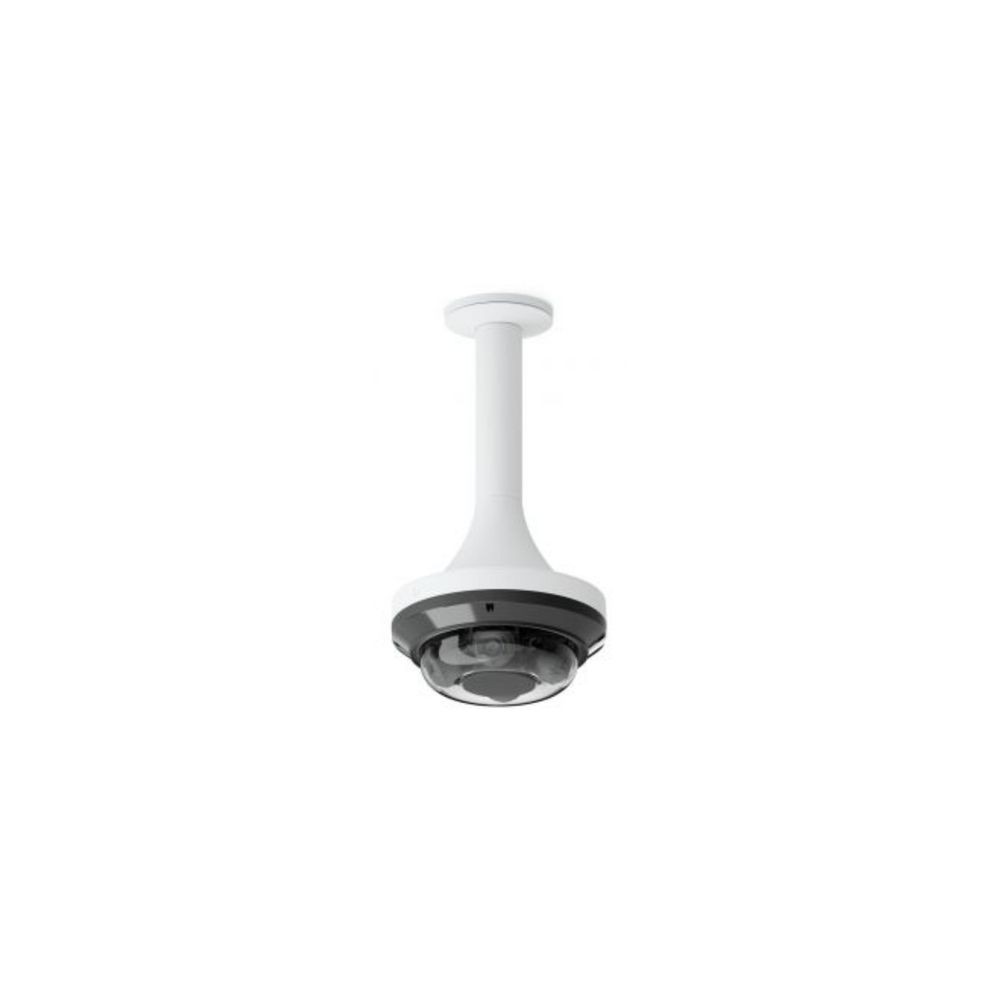

Ubiquiti UACC-AI-MS-4-PM-W AI Multi Sensor 4 Camera Pendant Mount White
Overview
The Ubiquiti UACC-AI-MS-4-PM-W is a white pendant-style mounting accessory designed specifically for the UVC-AI-MS-4 AI Multi Sensor 4 camera. It provides a suspended installation method for mounting the camera from ceilings or other suitable overhead structures using a 1.5-inch NPS threaded connector. Ubiquiti specifies installation only on rigid surfaces capable of supporting the combined weight of the camera and mount. :contentReference[oaicite:0]{index=0}
Mounting and Compatibility
The mount is designed for the UVC-AI-MS-4 and uses a 1.5-inch NPS threaded outlet for connection to an appropriate ceiling or overhead mounting structure. Installation uses screws with anchors into a solid, load-bearing substrate. :contentReference[oaicite:1]{index=1}
Construction
The UACC-AI-MS-4-PM-W uses an aluminum alloy construction with a painted and powder-coated surface treatment. The white finish identifies this model as the white variant of the AI Multi Sensor 4 Camera Pendant Mount. :contentReference[oaicite:2]{index=2}
Key Features
- Designed specifically for the UVC-AI-MS-4 AI Multi Sensor 4 camera
- Pendant-style design for ceiling and overhead installation
- 1.5-inch NPS threaded connector
- Aluminum alloy construction with painted and powder-coated finish
- White finish for the UACC-AI-MS-4-PM-W model
Applications
The UACC-AI-MS-4-PM-W is intended for installations where the AI Multi Sensor 4 camera needs to be suspended from a ceiling or other overhead structure. The pendant configuration provides an alternative to wall, pole, or arm mounting when the installation requires an overhead camera position.
DC Supplies Product Note
Verify that the intended ceiling or overhead structure is rigid and capable of supporting the combined camera and mount weight before installation. The specified mounting interface is a 1.5-inch NPS threaded connector, so the supporting structure and associated hardware should be compatible with this interface. :contentReference[oaicite:3]{index=3}
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-AI-MS-4-PM-W |
| Product Type | AI Multi Sensor 4 Camera Pendant Mount |
| Compatibility | UVC-AI-MS-4 |
| Mounting Type | Pendant / ceiling mount |
| Threaded Outlet | 1.5-inch NPS |
| Mounting Hardware | Screws with anchors |
| Material | Aluminum alloy |
| Surface Treatment | Paint coating, powder coat |
| Color | White |
| Dimensions | 390 × 252 × 252 mm (15.4 × 9.9 × 9.9") |
| Weight | 1.7 kg (3.7 lb) |
Frequently Asked Questions
Which camera is compatible with the UACC-AI-MS-4-PM-W?
The mount is designed for the Ubiquiti UVC-AI-MS-4 AI Multi Sensor 4 camera. :contentReference[oaicite:4]{index=4}
What type of installation does this mount provide?
It provides a pendant-style installation for suspending the AI Multi Sensor 4 camera from a ceiling or suitable overhead structure. :contentReference[oaicite:5]{index=5}
What threaded connector does the mount use?
The mount uses a 1.5-inch NPS threaded connector. :contentReference[oaicite:6]{index=6}
What material is the UACC-AI-MS-4-PM-W made from?
The mount is specified with an aluminum alloy construction and painted and powder-coated surface treatment. :contentReference[oaicite:7]{index=7}
What are the dimensions and weight?
The specified dimensions are 390 × 252 × 252 mm, with a weight of 1.7 kg. :contentReference[oaicite:8]{index=8}
Can it be installed on any ceiling?
No. Ubiquiti specifies installation only on rigid surfaces capable of supporting the weight of both the camera and the mount. :contentReference[oaicite:9]{index=9}
