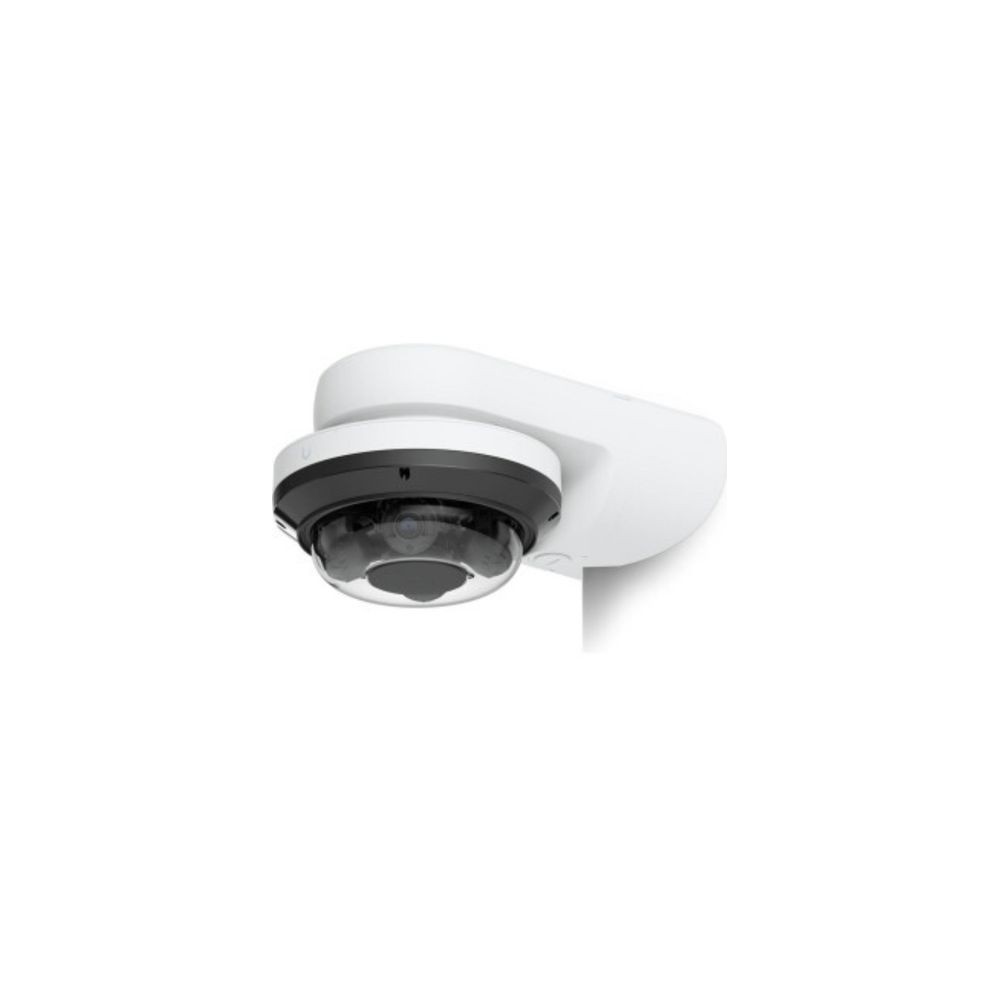

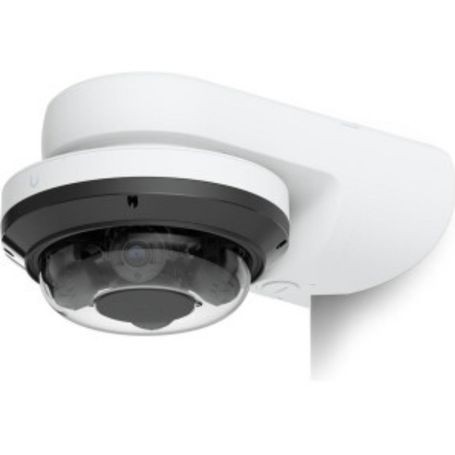

Ubiquiti UACC-AI-MS-4-AM-W AI Multi Sensor 4 Camera Arm Mount White
Overview
The Ubiquiti UACC-AI-MS-4-AM-W is a white mounting kit designed for the UVC-AI-MS-4 AI Multi Sensor 4 camera. It supports flat or angled installation through arm, pole, or corner mounting configurations. Ubiquiti specifies the mount as an aluminum alloy assembly with a painted and powder-coated treatment.
Mounting Options
The mounting kit supports arm, pole, and corner installation. For pole deployments, it supports two specified diameter ranges: 50–100 mm (2–4 inches) and 115–150 mm (4.5–6 inches). The mounting interface includes G3/4-inch threaded outlets.
Compatibility and Installation
The UACC-AI-MS-4-AM-W is specifically compatible with the UVC-AI-MS-4 AI Multi Sensor 4 camera. Installation hardware is specified as tapping screws and anchors. The mount can accommodate flat or angled camera installation depending on the selected mounting configuration.
Key Features
- Designed for the UVC-AI-MS-4 AI Multi Sensor 4 camera
- White finish for the UACC-AI-MS-4-AM-W variant
- Supports arm, pole, and corner mounting configurations
- Supports 50–100 mm and 115–150 mm pole diameters
- Aluminum alloy construction with painted and powder-coated treatment
Applications
The UACC-AI-MS-4-AM-W is intended for installations where the AI Multi Sensor 4 camera needs a dedicated arm, pole, or corner mounting arrangement. Its supported mounting configurations provide options for adapting the camera to different structural installation locations.
DC Supplies Product Note
Confirm the mounting configuration and pole diameter before deployment. Ubiquiti specifies two supported pole diameter ranges, 50–100 mm and 115–150 mm. The white UACC-AI-MS-4-AM-W should also be matched specifically with the UVC-AI-MS-4 camera identified in Ubiquiti's compatibility specification.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-AI-MS-4-AM-W |
| Product Type | AI Multi Sensor 4 Camera Arm Mount |
| Color | White |
| Compatibility | UVC-AI-MS-4 |
| Mounting Configurations | Arm, pole, and corner |
| Installation | Flat or angled |
| Pole Mount Diameter | 50–100 mm (2–4") and 115–150 mm (4.5–6") |
| Enclosure Material | Aluminum alloy |
| Mounting Material | Aluminum alloy |
| Surface Treatment | Painting, powder coating |
| Mounting Hardware | Tapping screw, anchor |
| Threaded Outlets | G3/4" |
| Dimensions | 350 × 250 × 150 mm (13.8 × 9.8 × 5.9") |
| Pole Mount Weight | 300 g (10.6 oz) |
| Corner Mount Weight | 700 g (1.5 lb) |
| Arm Mount Weight | 3.6 kg (7.9 lb) |
Frequently Asked Questions
Which camera is the UACC-AI-MS-4-AM-W designed for?
It is designed for the Ubiquiti UVC-AI-MS-4 AI Multi Sensor 4 camera.
What mounting configurations does this kit support?
The kit supports arm, pole, and corner mounting configurations, with flat or angled installation supported.
What pole sizes are supported?
The specified pole mounting ranges are 50–100 mm (2–4 inches) and 115–150 mm (4.5–6 inches) in diameter.
What color is the UACC-AI-MS-4-AM-W?
The UACC-AI-MS-4-AM-W is the white version of the AI Multi Sensor 4 Camera Arm Mount.
What material is used for the mount?
Ubiquiti specifies aluminum alloy for both the enclosure and mounting material, with painting and powder coating as the surface treatment.
What mounting hardware is specified?
The mounting specification identifies tapping screws and anchors.
