Overview

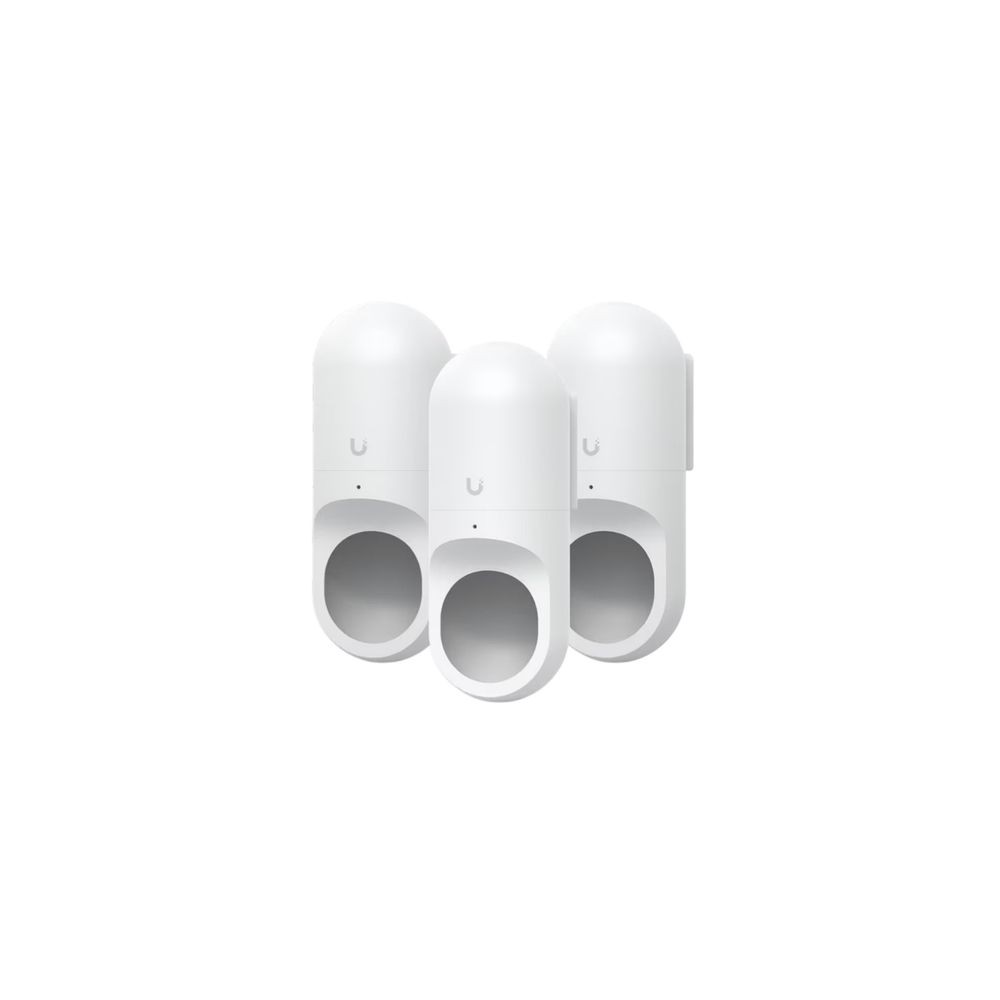

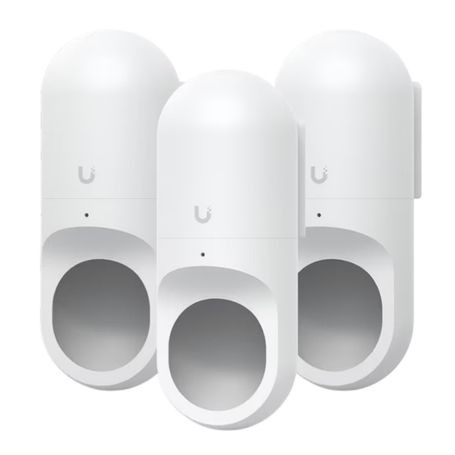

The Ubiquiti UACC-FLEX-CAM-PWM-WHITE is a white UniFi Flex Pro Mount designed for mounting compatible G3 and G5 Flex cameras on walls or poles. Its weather-resistant construction supports outdoor camera deployments, while inverted mounting allows flexible installation orientation.
Compatibility and Mounting
The mount is compatible with Ubiquiti G3 Flex and G5 Flex cameras. It supports both wall and pole mounting, including upside-down installation. When the camera is installed inverted, its video orientation is automatically adjusted through UniFi Protect.
Construction and Environmental Protection
The mount uses polycarbonate and rubber construction and has an IPX4 weatherproofing rating for protection against water splashes. It is specified for ambient operating temperatures from -20°C to 40°C (-4°F to 104°F) and relative humidity from 20% to 90% noncondensing.
Key Features
- Designed for Ubiquiti G3 Flex and G5 Flex cameras
- Supports wall and pole mounting
- Supports upside-down camera installation
- Automatic video orientation adjustment in UniFi Protect
- IPX4 weatherproofing with polycarbonate and rubber construction
Applications
The UACC-FLEX-CAM-PWM-WHITE can be used for outdoor perimeter surveillance, building-wall camera installations, pole-mounted security cameras, and other UniFi Protect deployments requiring flexible positioning of compatible Flex cameras.
DC Supplies Product Note
The inverted mounting capability provides additional installation flexibility when a standard upright camera position is not practical. The mount itself is a mechanical camera accessory and does not provide camera power or networking.
Specifications
| Brand | Ubiquiti |
| Part Number / MPN | UACC-FLEX-CAM-PWM-WHITE |
| Product Type | Camera Mounting Accessory |
| Product Family | UniFi Flex Pro Mount |
| Color | White |
| Compatible Cameras | G3 Flex, G5 Flex |
| Mounting | Wall, Pole |
| Inverted Mounting | Yes |
| Enclosure Material | Polycarbonate, Rubber |
| Weatherproofing | IPX4 |
| Operating Temperature | -20 to 40°C (-4 to 104°F) |
| Operating Humidity | 20 to 90% noncondensing |
| Dimensions | 133.5 × 52 × 62 mm (5.3 × 2.1 × 2.4 in) |
| Weight | 65 g (2.3 oz) |
Ubiquiti's technical specifications list the 133.5 × 52 × 62 mm dimensions, 65 g weight, IPX4 rating, and environmental specifications for the Flex Pro Mount; the manufacturer store identifies the mount as compatible with G3 and G5 Flex cameras. :contentReference[oaicite:0]{index=0}
FAQs
Is UACC-FLEX-CAM-PWM-WHITE compatible with the G5 Flex?
Yes. The mount is designed for G3 Flex and G5 Flex cameras.
Can the mount be installed on a pole?
Yes. It supports both wall and pole mounting.
Can the camera be mounted upside down?
Yes. The mount supports inverted wall or pole installation, with automatic video orientation adjustment in UniFi Protect.
Is the mount suitable for outdoor installation?
Yes. It has an IPX4 weatherproofing rating and an operating temperature range of -20°C to 40°C.
Does the mount include a camera?
No. UACC-FLEX-CAM-PWM-WHITE is a mounting accessory for compatible Flex cameras.
