Overview

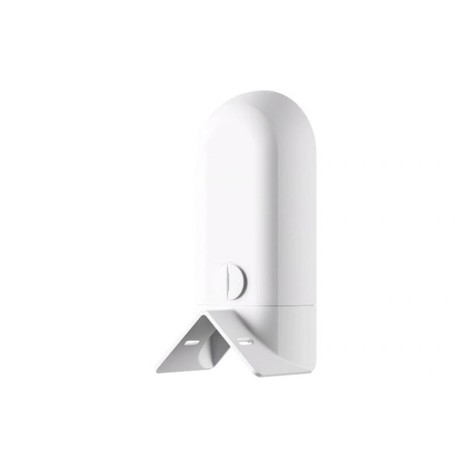

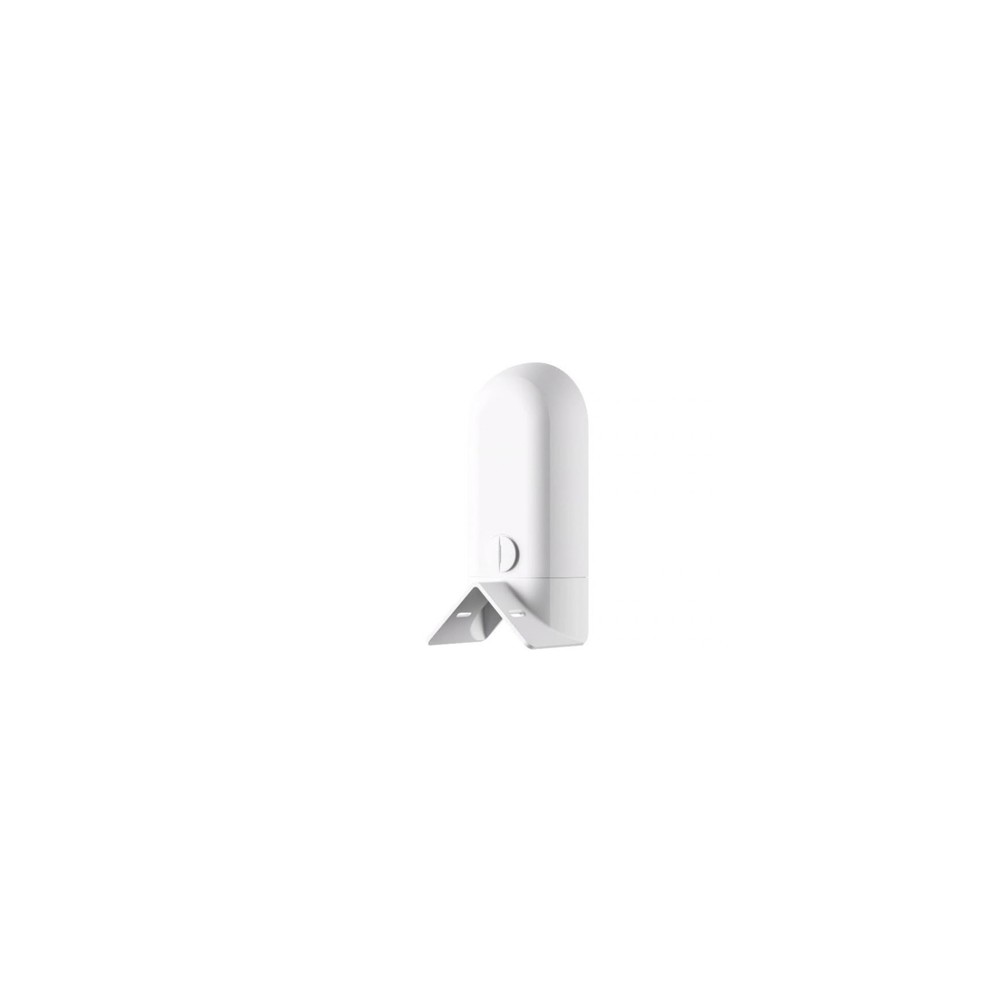

The Ubiquiti UACC-CAMERA-AM-W is a white Camera Arm Mount designed for mounting compatible UniFi cameras to a wall, corner, pole, or pipe. It supports 3/4-inch conduit and is rated IP66 for exposed outdoor installations.
The UACC-CAMERA-AM-W provides a flexible mounting arrangement for selected UniFi turret and dome cameras. Its aluminum alloy and polycarbonate construction combines the camera mounting structure with support for wall, corner, and pole installations. The mount supports poles or pipes with an outside diameter of 1.5 to 2 inches.
Compatibility
Ubiquiti identifies this Camera Arm Mount for selected UniFi AI, G5, and G6 cameras. Documented compatible models include UVC-AI-Dome, UVC-AI-Turret, UVC-G5-Turret-Ultra, UVC-G6-180, UVC-G6-Dome, UVC-G6-Turret, UVC-G6-Pro-360, UVC-G6-Pro-Dome, and UVC-G6-Pro-Turret.
Mounting and Cable Routing
The mount can be installed on a wall, corner, pole, or compatible pipe. A 3/4-inch conduit connection is supported for cable routing. Pole and pipe installations require an outside diameter between 1.5 and 2 inches.
Outdoor Protection
The UACC-CAMERA-AM-W has an IP66 weatherproofing rating and is specified for exposed outdoor use. The enclosure uses aluminum alloy and polycarbonate, while the mounting material is aluminum alloy.
Key Features
- White Camera Arm Mount for compatible UniFi cameras
- Supports wall, corner, pole, and pipe mounting
- Compatible with 1.5–2 inch outside-diameter poles or pipes
- Supports 3/4-inch conduit for cable routing
- IP66 weatherproof construction for exposed outdoor installations
Applications
The UACC-CAMERA-AM-W is suited to surveillance installations that require a compatible UniFi camera to be positioned away from a flat mounting surface or attached to a pole or pipe. It can be used for exterior building walls, corners, poles, and other supported mounting locations.
DC Supplies Product Note
This is a camera mounting accessory, not a camera. Verify the exact UniFi camera model against the supported compatibility list before installation, particularly when replacing an existing mount or deploying a newer camera generation.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-CAMERA-AM-W |
| Product Type | Camera Arm Mount |
| Series | UniFi |
| Color | White |
| Mounting Locations | Wall, corner, pole, pipe |
| Pole Mount Diameter | 1.5–2.0 in outside diameter |
| Conduit Support | 3/4 in |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mounting Material | Aluminum alloy |
| Weatherproofing | IP66 |
| Dimensions | 4.5 × 9.9 × 3.5 in |
| Weight | 1.48 lb |
FAQs
What is the UACC-CAMERA-AM-W?
It is a white UniFi Camera Arm Mount for installing compatible Ubiquiti cameras on walls, corners, poles, or pipes.
What pole size does the mount support?
The mount supports poles or pipes with an outside diameter of 1.5 to 2 inches.
Does the mount support conduit?
Yes. The UACC-CAMERA-AM-W supports 3/4-inch conduit for cable routing.
Can it be used outdoors?
Yes. Ubiquiti specifies an IP66 weatherproofing rating and outdoor exposed installation capability.
